(55.640.BH[06]) - VAR - 743795 - ISOBUS SOCKET, RELAY

Запчасти Case IH MAXXUM 115 (55.640.BH[06]) - VAR - 743795 - ISOBUS SOCKET, RELAY (55) - ELECTRICAL SYSTEMS

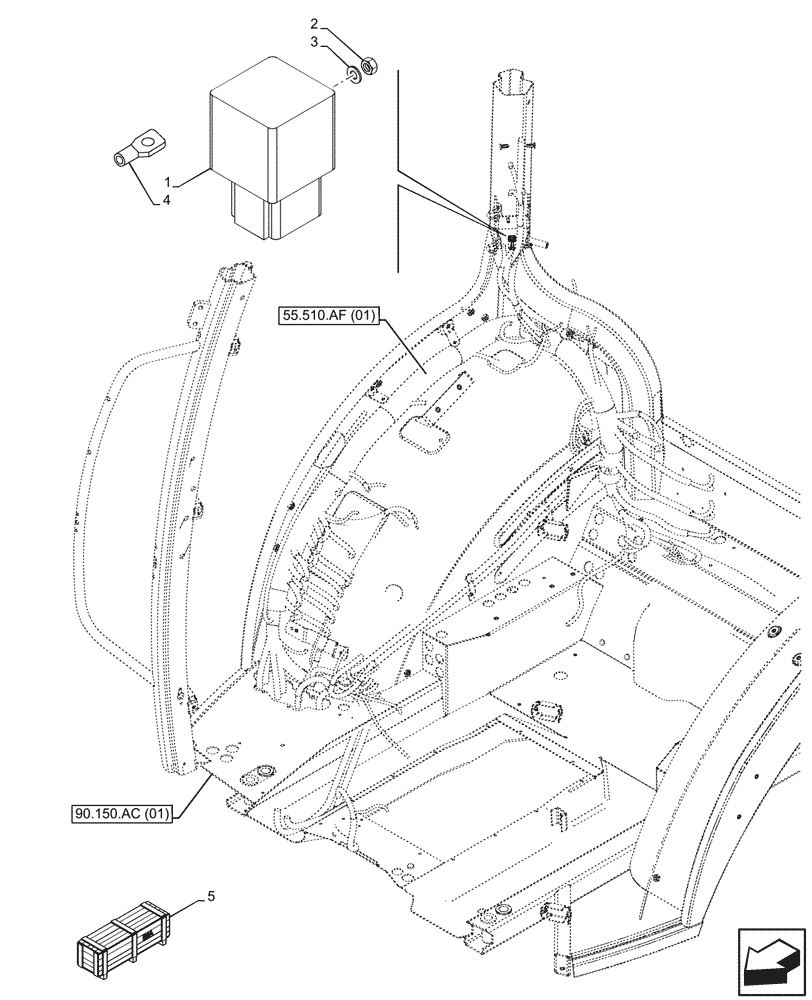

Схема запчастей Case IH MAXXUM 115 - (55.640.BH[06]) - VAR - 743795 - ISOBUS SOCKET, RELAY (55) - ELECTRICAL SYSTEMS
55.510.af (01)
2
3
1
5
4
90.150.ac (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84577117

RELAY,12V, 2A

1шт.

2

15896211

NUT,M6, Cl 8

1шт.

3

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

1шт.

4

84384514

ELEC CONNECTOR

1шт.

5

719344084

Isobus Harness and Socket for Vehicles with SWCD or CODI Screens, Incl 1 - 4

DIA KIT, TRACTOR

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
