Запчасти Case IH MAXXUM 115 (55.522.AG[02]) - VAR - 390811, 743699 - REAR PTO, SWITCH (55) - ELECTRICAL SYSTEMS

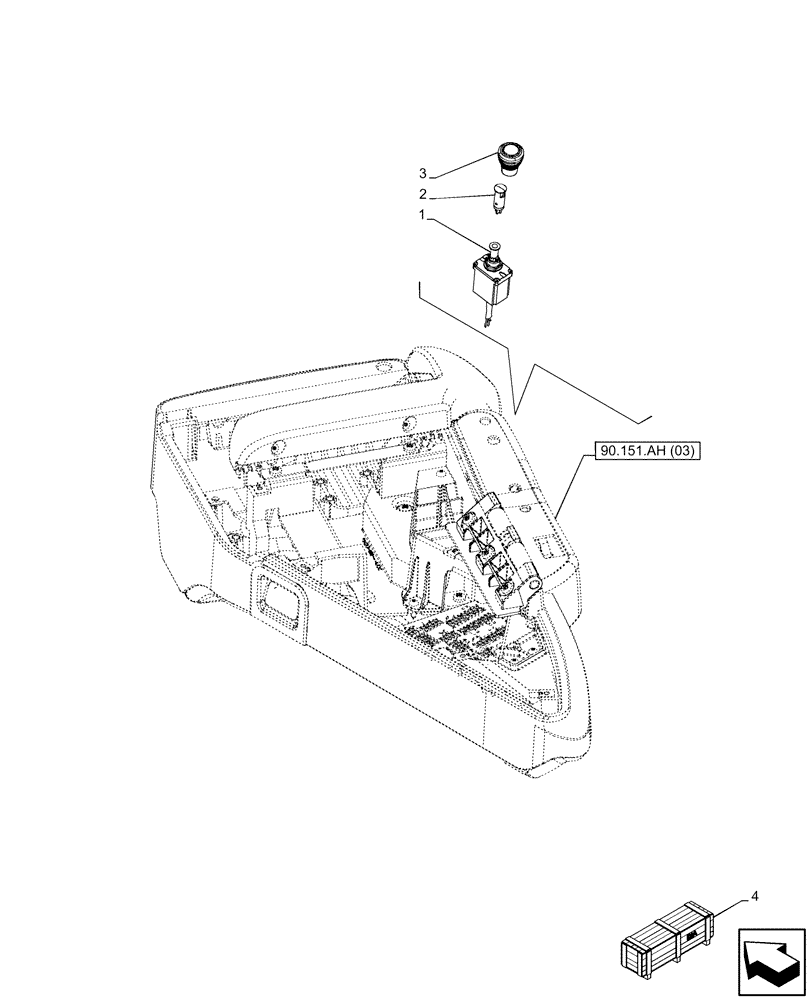

Схема запчастей Case IH MAXXUM 115 - (55.522.AG[02]) - VAR - 390811, 743699 - REAR PTO, SWITCH (55) - ELECTRICAL SYSTEMS
90.151.ah (03)
3
4
2
1

Артикул

Название

Примечание

Количество

1

84218194

SWITCH ASSY

PTO

1шт.

2

47056319

WARNING LIGHT

PTO, Yellow

1шт.

3

87638633

KNOB

PTO, Yellow

1шт.

4

718041054

DIA KIT, TRACTOR

Front Power Take-Off W/6 Splines, Incl 1 - 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

4

719098114

DIA KIT, TRACTOR

Front Power Take-Off for Hydraulic Power Lift W/6 Splines, Incl 1 - 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 7
