(55.518.AT[08]) - VAR - 392209, 744985 - WINDSHIELD WASH RESERVOIR, COMPONENTS

Запчасти Case IH MAXXUM 115 (55.518.AT[08]) - VAR - 392209, 744985 - WINDSHIELD WASH RESERVOIR, COMPONENTS (55) - ELECTRICAL SYSTEMS

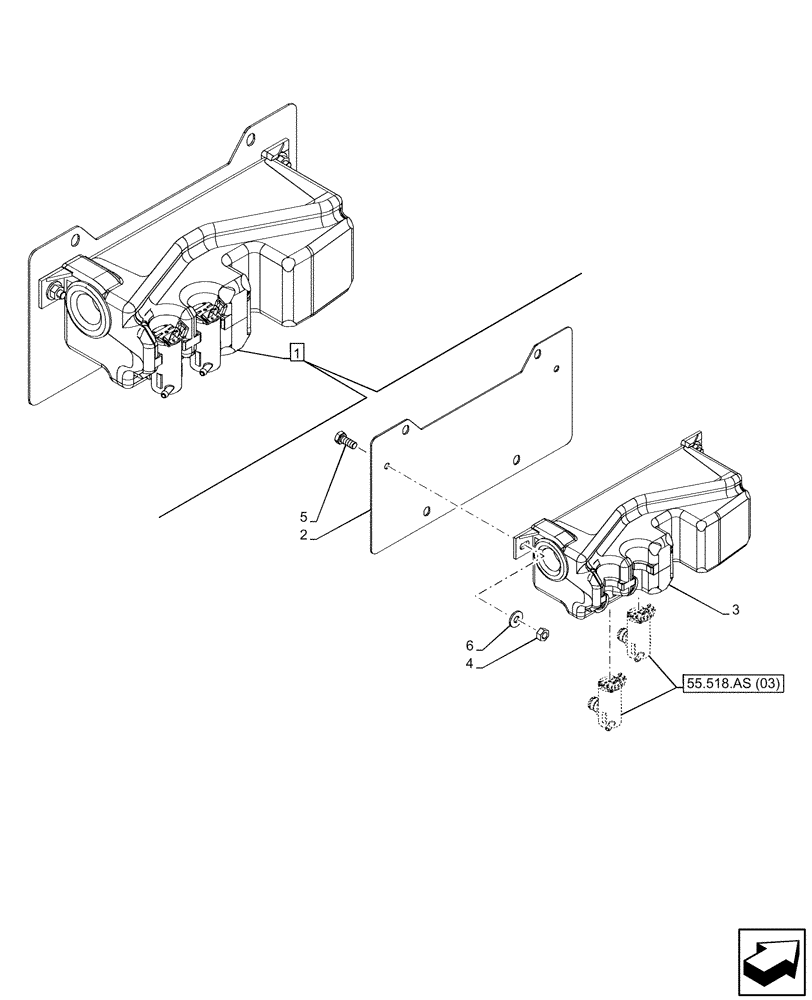

Схема запчастей Case IH MAXXUM 115 - (55.518.AT[08]) - VAR - 392209, 744985 - WINDSHIELD WASH RESERVOIR, COMPONENTS (55) - ELECTRICAL SYSTEMS
55.518.as (03)
1
2
3
4
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87638112

RESERVOIR, WINDSHIEL

Twin Pumps

1шт.

2

87638111

PLATE

Washer Bottle

1шт.

3

82030995

RESERVOIR, WINDSHIEL

, Years: -17-DEC-15

1шт.

3

47845516

RESERVOIR, WINDSHIEL

, Start Year: 18-DEC-15

1шт.

4

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

5

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

6

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

Выбрано товаров: 7
