Запчасти Case IH MAXXUM 115 (90.150.BG[23]) - NAR ROOF WITH LOW PROFILE - BRACKETS (90) - PLATFORM, CAB, BODYWORK AND DECALS

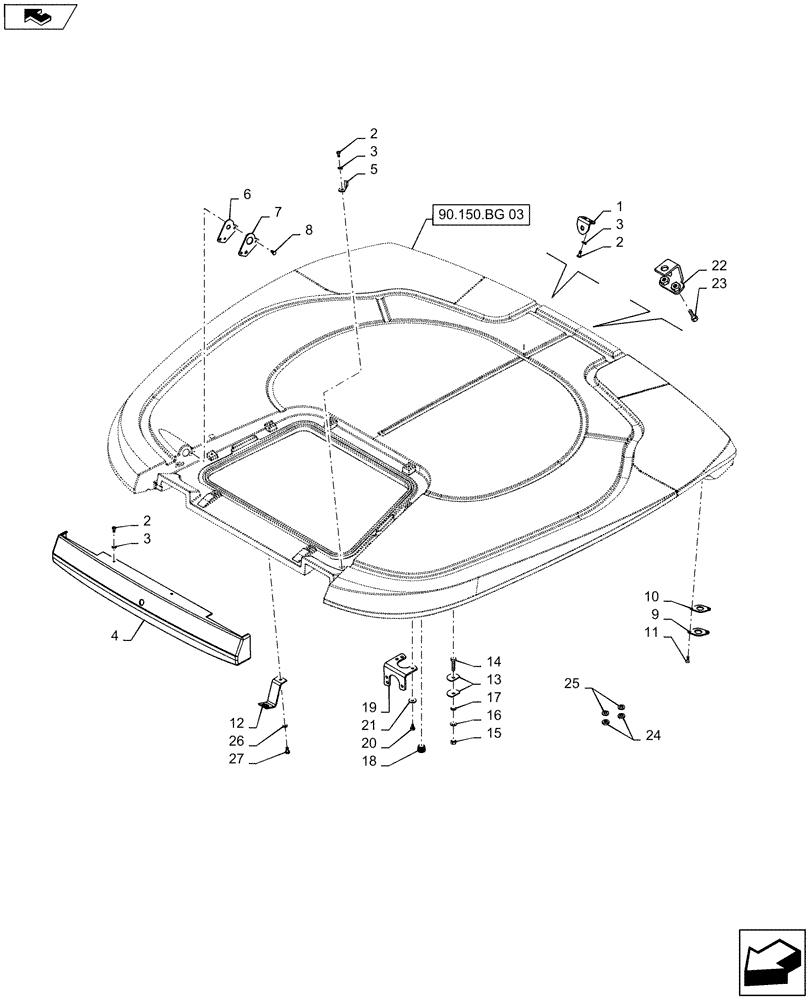

Схема запчастей Case IH MAXXUM 115 - (90.150.BG[23]) - NAR ROOF WITH LOW PROFILE - BRACKETS (90) - PLATFORM, CAB, BODYWORK AND DECALS
19
2
16
5
4
23
10
18
11
20
3
22
12
6
8
17
13
90.150.bg 03
26
21
2
3
home
7
24
15
25
14
27
1
3
9
2

Артикул

Название

Примечание

Количество

1

87327093

BRACKET

1шт.

2

83949904

SCREW,Pan, M4 x 10mm, Gr 4.8

8шт.

3

83901553

LOCK WASHER,M5

8шт.

4

87323767

COVER

1шт.

5

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

1шт.

6

87343347

PLATE

1шт.

7

84489366

GASKET

1шт.

8

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

2шт.

9

87546897

PLATE

2шт.

10

87546909

GASKET,2mm Thk

2шт.

11

83956457

SCREW,M4 x 10, 4.8

4шт.

12

87367810

BRACKET

1шт.

13

87398511

WASHER,8.2mm ID x 35mm OD x 2mm Thk

4шт.

14

15213321

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

15

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

16

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

17

87547806

RETAINER

2шт.

18

87600545

BUTTON PLUG,M17 x 11.50mm

8шт.

19

87327321

BRACKET

4шт.

20

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

1шт.

21

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

3шт.

22

84470625

PLATE

1шт.

23

14305821

HEX SOC SCREW,M6 x 40mm, Cl 8.8

6шт.

24

11197779

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

3шт.

25

12640601

WASHER,6.15mm ID x 25mm OD x 2mm Thk

3шт.

26

10516474

LOCK WASHER

1шт.

27

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

4шт.

Выбрано товаров: 27
