Запчасти Case IH MAXXUM 115 (39.140.AF[07]) - VAR - 330228, 743705 - FRONT WEIGHT CARRIER AND 12 WEIGHTS WITH PULL HOOK (39) - FRAMES AND BALLASTING

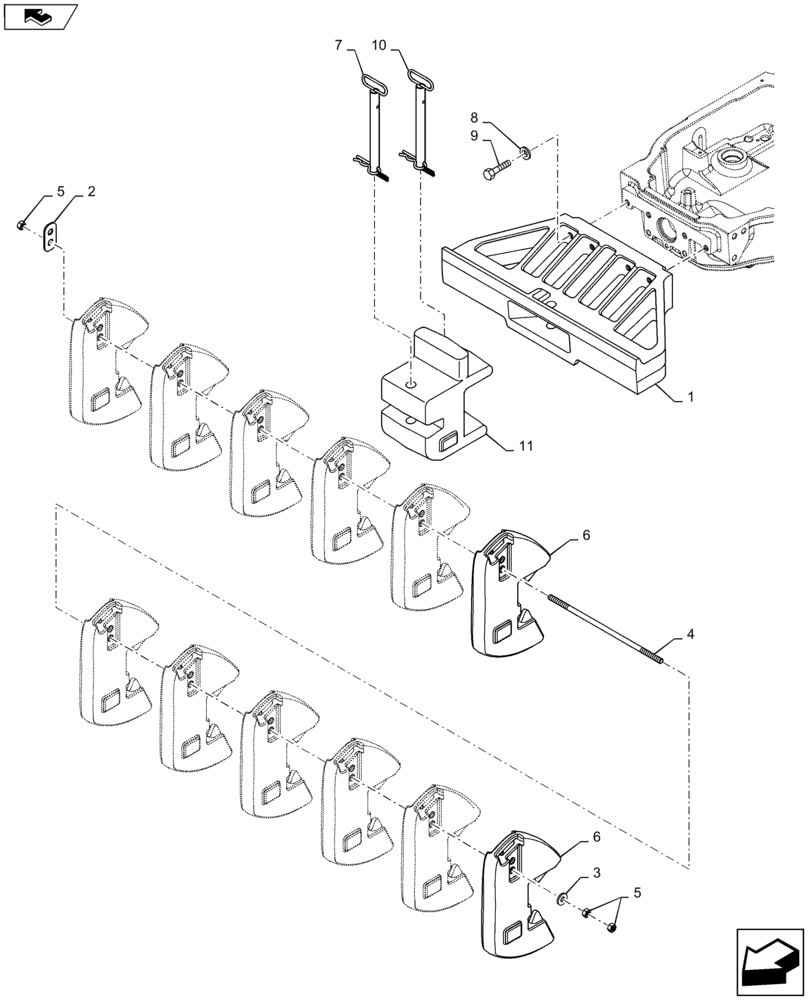

Схема запчастей Case IH MAXXUM 115 - (39.140.AF[07]) - VAR - 330228, 743705 - FRONT WEIGHT CARRIER AND 12 WEIGHTS WITH PULL HOOK (39) - FRAMES AND BALLASTING
7
2
5
11
10
6
1
8
5
4
3
9
6
home

Артикул

Название

Примечание

Количество

1

82031491

WEIGHT CARRIER

1шт.

2

44995007

CLAMP,Grey

PLATE

1шт.

3

83924746

WASHER,17mm ID x 40mm OD x 5mm Thk

1шт.

4

82028307

ROD

1шт.

5

82011968

NUT,Hex, M16, 2mm Pitch, 13.00mm High, ZND

3шт.

6

86988727

WEIGHT,45Kg

12шт.

7

44995008

CLEVIS PIN,31mm OD x 337mm L

w/ Chain

1шт.

8

11191774

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

6шт.

9

16050821

BOLT,Hex, M20 x 90mm, Cl 8.8

6шт.

10

44995060

CLEVIS PIN,31mm OD x 315mm L

w/ Chain

1шт.

11

82024272

SUPPORT,110Kg

1шт.

Выбрано товаров: 11
