(37.100.AF[01]) - VAR - 330942, 331954, 332954 - SLIDER TOW HOOD WITH FIXED C AND D3 TYPE COUPLINGS - ITALY

Запчасти Case IH MAXXUM 115 (37.100.AF[01]) - VAR - 330942, 331954, 332954 - SLIDER TOW HOOD WITH FIXED C AND D3 TYPE COUPLINGS - ITALY (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

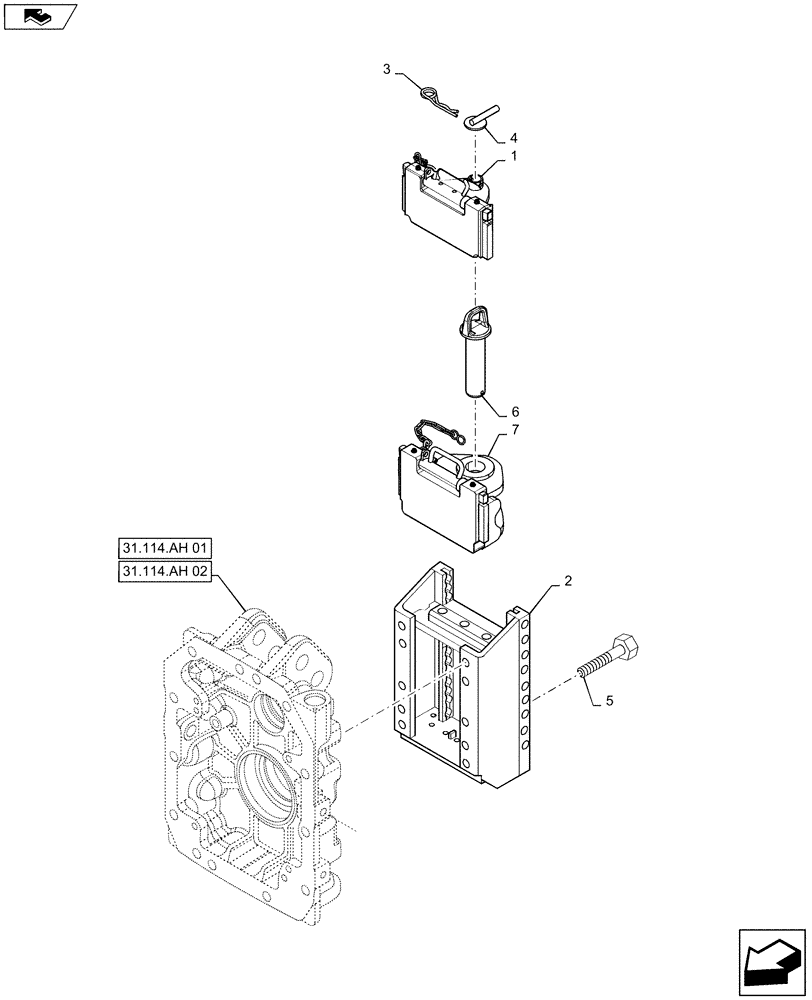

Схема запчастей Case IH MAXXUM 115 - (37.100.AF[01]) - VAR - 330942, 331954, 332954 - SLIDER TOW HOOD WITH FIXED C AND D3 TYPE COUPLINGS - ITALY (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
2
1
home
4
31.114.ah 02
7
5
6
3
31.114.ah 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5199458

TOW HOOK

Cat C

1шт.

2

84351239

FRAME

1шт.

3

82000094

SPRING,40mm OD x 142mm L

1шт.

4

82016898

HITCH PIN

1шт.

5

16220874

BOLT,Hex, M18 x 1.5 x 45mm, Cl 12.9

10шт.

6

5152005

PIN

1шт.

7

82027419

TOW HOOK

Cat D3

1шт.

Выбрано товаров: 7
