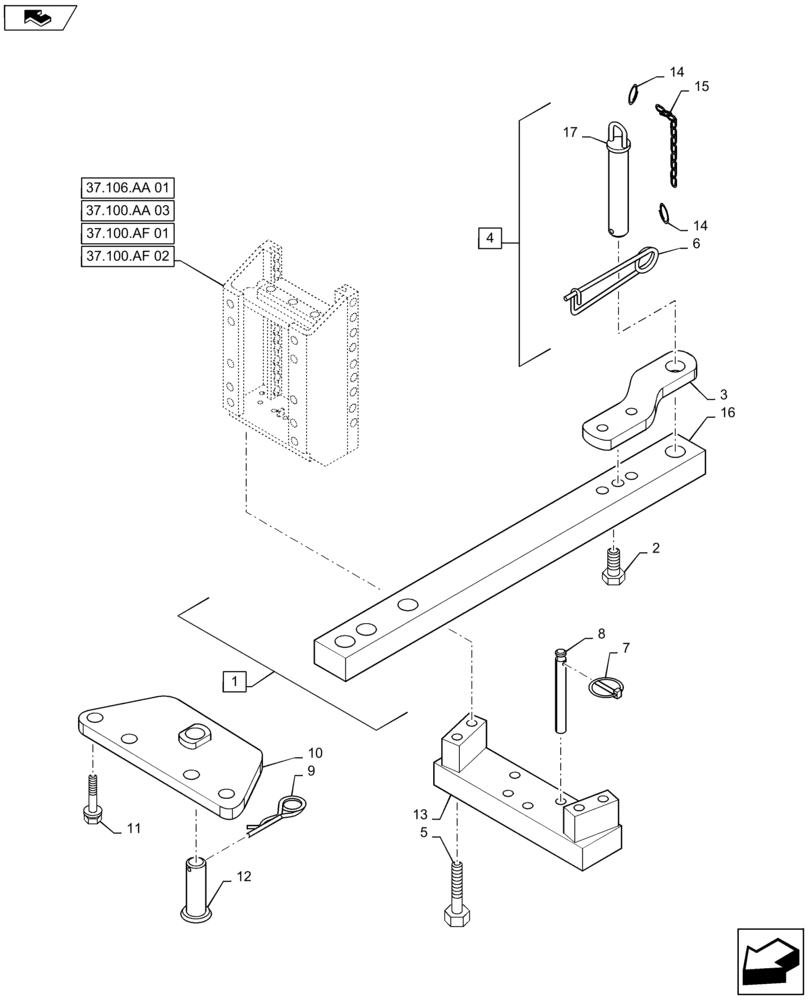

Запчасти Case IH MAXXUM 115 (37.100.AA[02]) - VAR - 331918 - SWINGING DRAWBAR FOR SLIDER TOW HOOK -ITALY (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

82029087

DRAWBAR

Incl 2, 3, 16

1шт.

2

11125234

SCREW,Hex, M20 x 75mm, Cl 10.9

4шт.

3

82026909

SUPPORT

1шт.

4

5162713

HITCH PIN,28mm OD x 711.5mm L

Incl 6, 14, 15, 17

1шт.

5

11125734

BOLT,Hex, M20 x 100mm, Cl 10.9

4шт.

6

5152004

HAIR PIN COTTER,195mm L

1шт.

7

82014909

LOCK PIN,5.5mm OD

2шт.

8

82015207

PIN,16mm OD x 141mm L

2шт.

9

82000094

SPRING,40mm OD x 142mm L

1шт.

10

82020237

BRACKET

2шт.

11

87558076

BOLT,Flng, M16 x 1.5 x 130mm, Cl 12.9

4шт.

12

82029083

PIN,28.5mm OD x 124mm L

1шт.

13

82039556

SUPPORT

1шт.

14

44901192

SNAP RING,25mm ID

2шт.

15

596063

LINK CHAIN,13 Links x 18mm = 234mm L

1шт.

16

NSS

NOT SOLD SEPARAT

Drawbar, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

Pin, Incl in 4

1шт.
