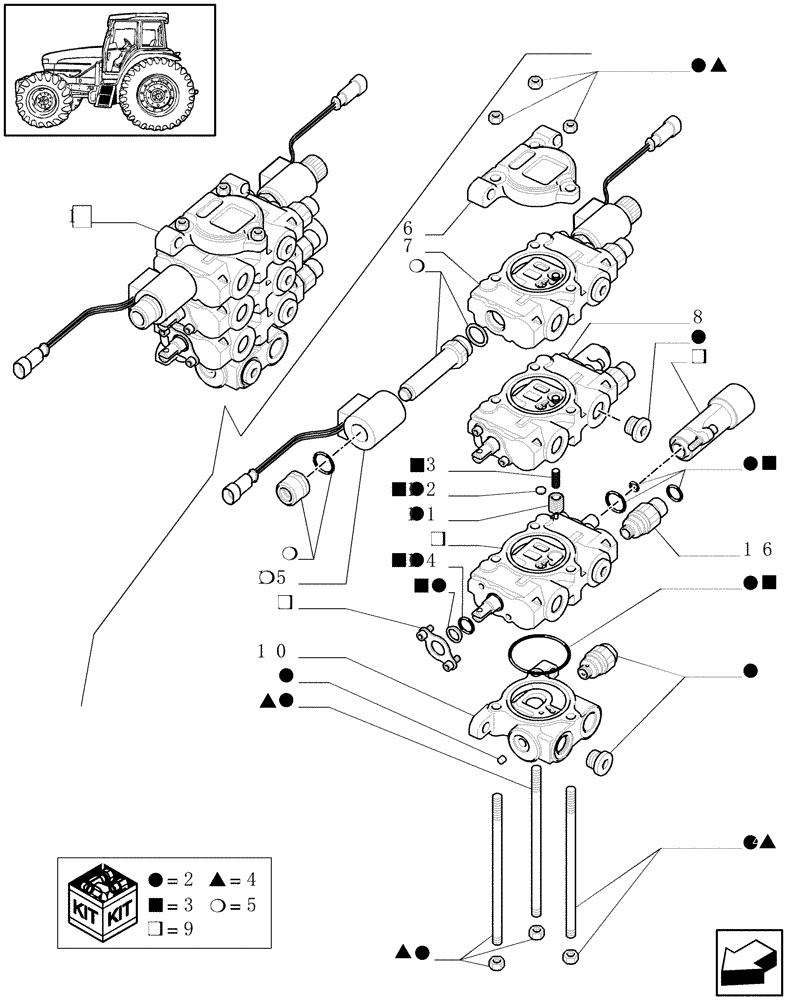

Запчасти Case IH MAXXUM 115 (35.204.BS[05]) - VAR - 332564, 332562, 334562, 743901 - CONTROL VALVE - BREAKDOWN (35) - HYDRAULIC SYSTEMS

1

82030383

VALVE SECTION

ASSY, Serial Range: -CZCBE57526

1шт.

82030383R

REMAN-HYD VALVE

MAXXUM 100, MAXXUM 110, MAXXUM 115, MAXXUM 120, MAXXUM 125, MAXXUM 130, MAXXUM 140, All (1/07)

1шт.

82030383C

CORE-VALVE HYD

Return Number

1шт.

47367743

VALVE SECTION

, Start Serial: DZCBE57527

1шт.

47367743R

REMAN-HYD VALVE

MAXXUM 100, MAXXUM 110, MAXXUM 115, MAXXUM 120, MAXXUM 125, MAXXUM 130, MAXXUM 140, All TRACTOR (1/07), Reman for New PN 82030383

1шт.

47367743C

CORE-VALVE HYD

Return Number

1шт.

2

82039636

SERVICE KIT

1шт.

3

82034760

SEAL KIT

1шт.

4

86582440

KIT

1шт.

5

86582449

SOLENOID VALVE

1шт.

6

82030637

HYD VALVE SECTION

End Cap

1шт.

7

82030636

HYDRAULIC VALVE

Assy.

1шт.

8

82030635

HYDRAULIC VALVE

No Float

1шт.

9

82030634

HYDRAULIC VALVE

Float Detent

1шт.

10

82030632

HYD VALVE SECTION

Inlet Section

1шт.

11

75289566

SPOOL

3шт.

12

75312804

DISC

2шт.

13

75289565

SPRING

3шт.

14

14457180

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

4шт.

15

86582450

COIL

1шт.

16

86582451

HYD CONNECTOR

1шт.

Threaded steel Cap on the end of 86582451 is 13/16"-16 threads. It is only available with a new valve

1шт.
