Запчасти Case IH MAXXUM 115 (35.204.BQ[05]) - VAR - 330862, 338851, 743733 -4 ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES WITH PUMP 113 L/MIN CCLS - DISTRIBUTOR, COVER AND OIL COLLECTOR (35) - HYDRAULIC SYSTEMS

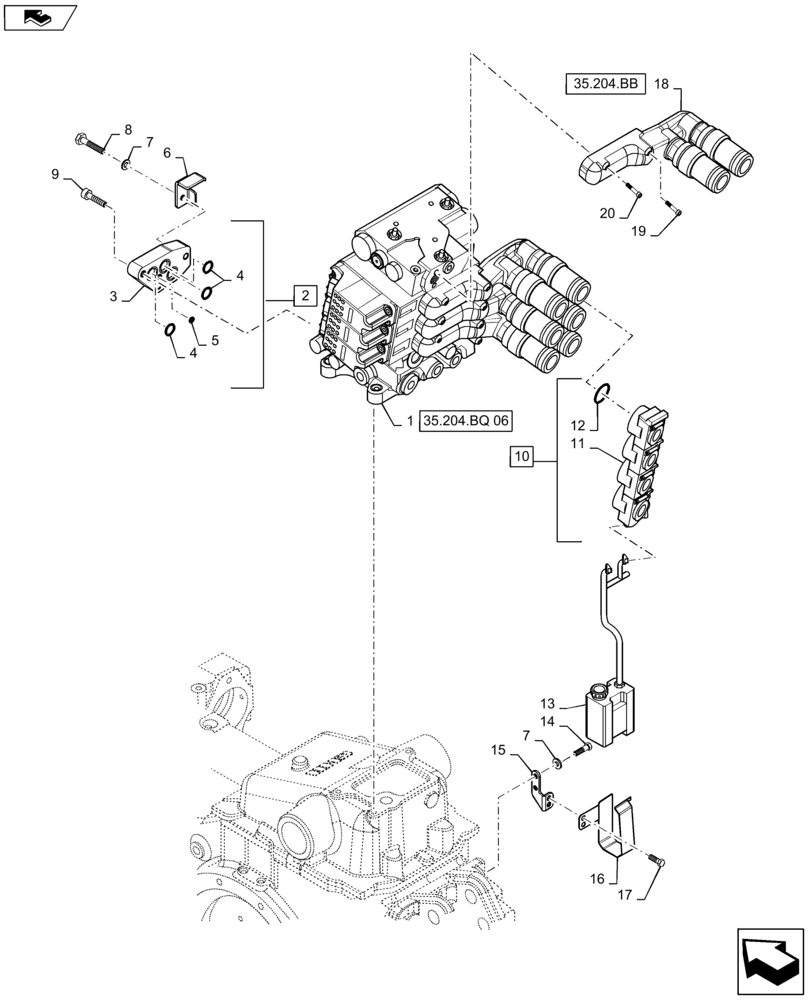

Схема запчастей Case IH MAXXUM 115 - (35.204.BQ[05]) - VAR - 330862, 338851, 743733 -4 ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES WITH PUMP 113 L/MIN CCLS - DISTRIBUTOR, COVER AND OIL COLLECTOR (35) - HYDRAULIC SYSTEMS
9
12
1
11
17
8
6
35.204.bq 06
2
16
35.204.bb
15
19
4
10
3
13
5
14
18
7
7
20
home
4

Артикул

Название

Примечание

Количество

1

84266085

CONTROL VALVE

1шт.

2

5199101

COVER

Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Cover, Incl in 2

1шт.

4

81862872

O-RING,2.4mm Thk x 19.6mm ID

3шт.

5

81862879

O-RING,2.4mm Thk x 7.6mm ID

1шт.

6

84478254

BRACKET

1шт.

7

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.

8

16044124

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.

9

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

10

84338824

DUST CAP

Incl 11, 12. VAR 330862

2шт.

10

84290177

DUST CAP

Incl 11, 12. VAR 338851

2шт.

11

NSS

NOT SOLD SEPARAT

Dust, Cap, Incl in 10

1шт.

12

14454580

O-RING,34.65mm ID x 1.78mm

8шт.

13

84287277

RESERVOIR, HYDRAULIC

1шт.

14

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

15

84311423

SUPPORT

1шт.

16

84312030

SUPPORT

1шт.

17

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

18

87381965

QUICK MALE COUPLING

1шт.

19

14306071

SCREW,M6 x 50mm, Cl 12.9

2шт.

20

14305671

SCREW,M6 x 35mm, Cl 12.9

2шт.

Выбрано товаров: 21
