Запчасти Case IH MAXXUM 115 (35.106.AQ[01A]) - VAR - 331836, 333836, 336835, 338835, 743744 - HYDRAULIC PUMP 113 L/MIN CCLS FOR SPS - FILTER - D7420 (35) - HYDRAULIC SYSTEMS

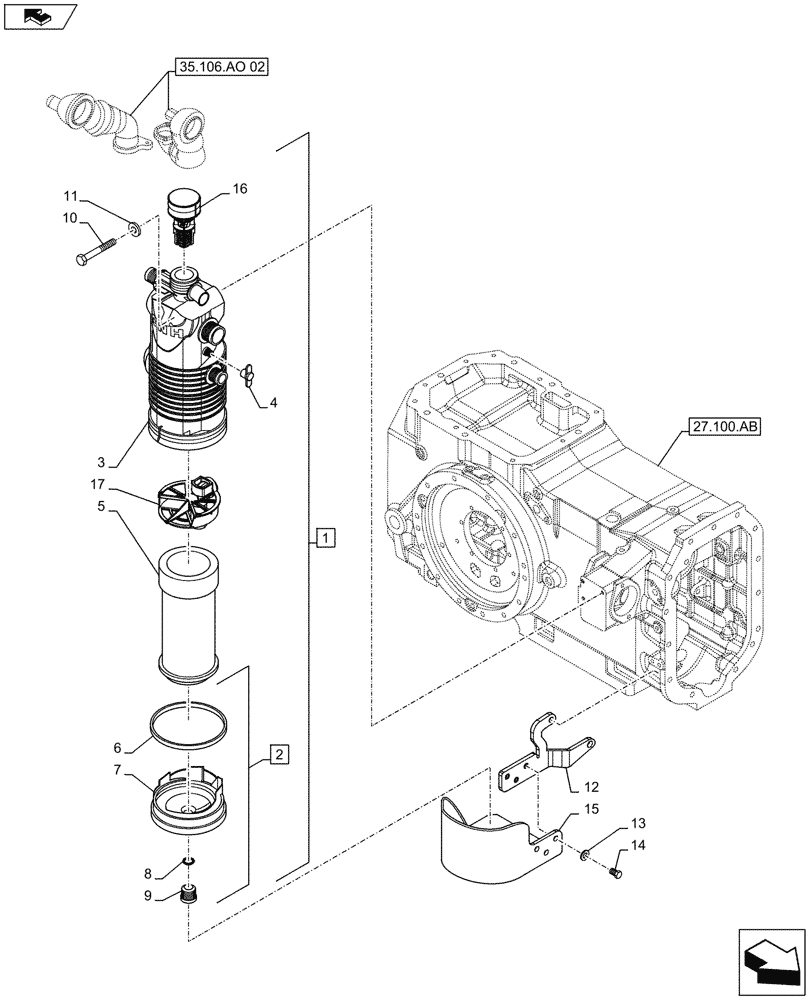

Схема запчастей Case IH MAXXUM 115 - (35.106.AQ[01A]) - VAR - 331836, 333836, 336835, 338835, 743744 - HYDRAULIC PUMP 113 L/MIN CCLS FOR SPS - FILTER - D7420 (35) - HYDRAULIC SYSTEMS
35.106.ao 02
14
9
17
11
1
13
10
6
15
4
8
12
7
home
5
16
2
3
27.100.ab

Артикул

Название

Примечание

Количество

1

47715392

FILTER ASSY

Incl 2 - 5, 16, 17

1шт.

2

87705159

FILTER COVER

Incl 6 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

Filter, Incl in 1

1шт.

4

87705160

ARRESTER

1шт.

5

47715391

HYDRAULIC OIL FILTER,148mm OD x 268mm L

Filter & Seal, Oil Filter, Suction

1шт.

6

NSS

NOT SOLD SEPARAT

Gasket, Incl in 2

1шт.

7

NSS

NOT SOLD SEPARAT

Base, Incl in 2

1шт.

8

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 2

1шт.

9

NSS

NOT SOLD SEPARAT

Plug, Incl in 2

1шт.

10

15972421

SCREW,Hex, M10 x 1.25 x 130mm, Cl 8.8

2шт.

11

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

12

84489570

BRACKET

1шт.

13

14496724

WASHER,13mm ID x 24mm OD x 2.5mm Thk

3шт.

14

15232521

BOLT,Hex, M12 x 1.25 x 22mm, Cl 8.8, Full Thd

3шт.

15

84489647

COVER

1шт.

16

87600439

VALVE PRESSURE RELIE

1шт.

17

47715390

TUBE

1шт.

Выбрано товаров: 17
