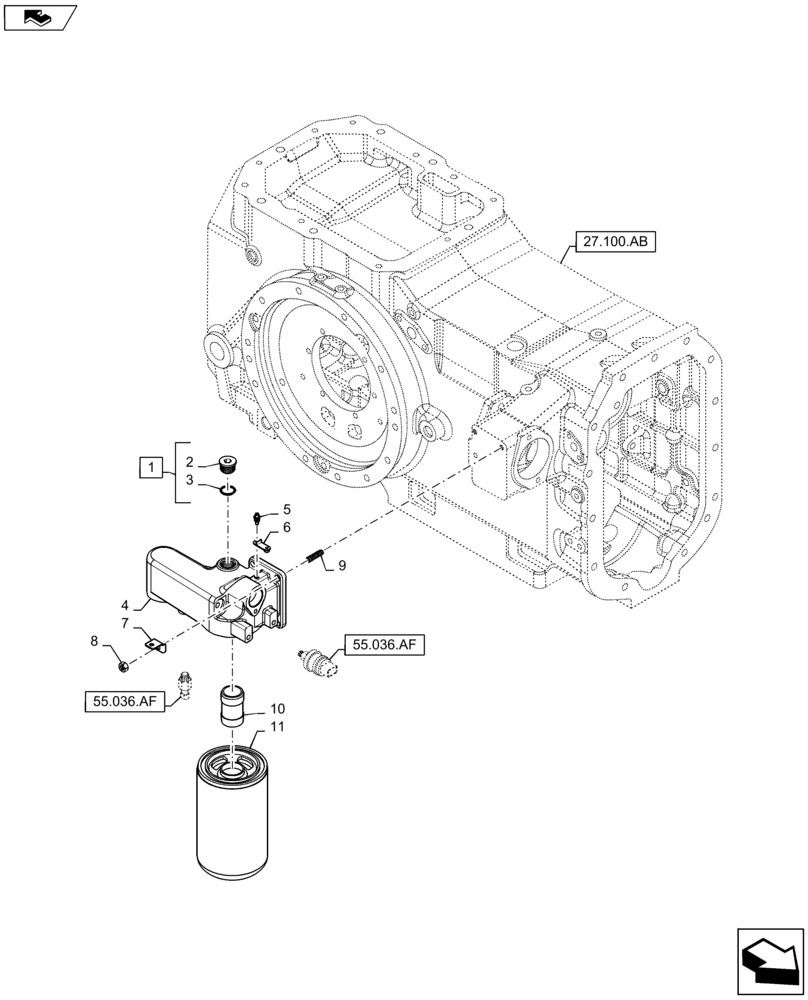

Запчасти Case IH MAXXUM 115 (35.100.AL) - HYDRAULIC PUMP 80 L/MIN FD - FILTER (35) - HYDRAULIC SYSTEMS

1

10119040

PLUG,M27 x 2 x 20, Brass

Incl 2,3

1шт.

2

NSS

NOT SOLD SEPARAT

1шт.

3

14438185

O-RING,24mm ID x 3mm

1шт.

4

47123333

SUPPORT

1шт.

5

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

1шт.

6

47129062

PLATE

1шт.

7

82023638

BRACKET

1шт.

8

12164711

NUT,M10 x 1.25, Cl 8

3шт.

9

13449521

STUD

3шт.

10

5192915

FITTING

1шт.

11

84248043

HYDRAULIC OIL FILTER,136mm OD x 244mm L, 1" 3/4-16 UN-2B

Suction, Fixed Displacement Pump

1шт.
