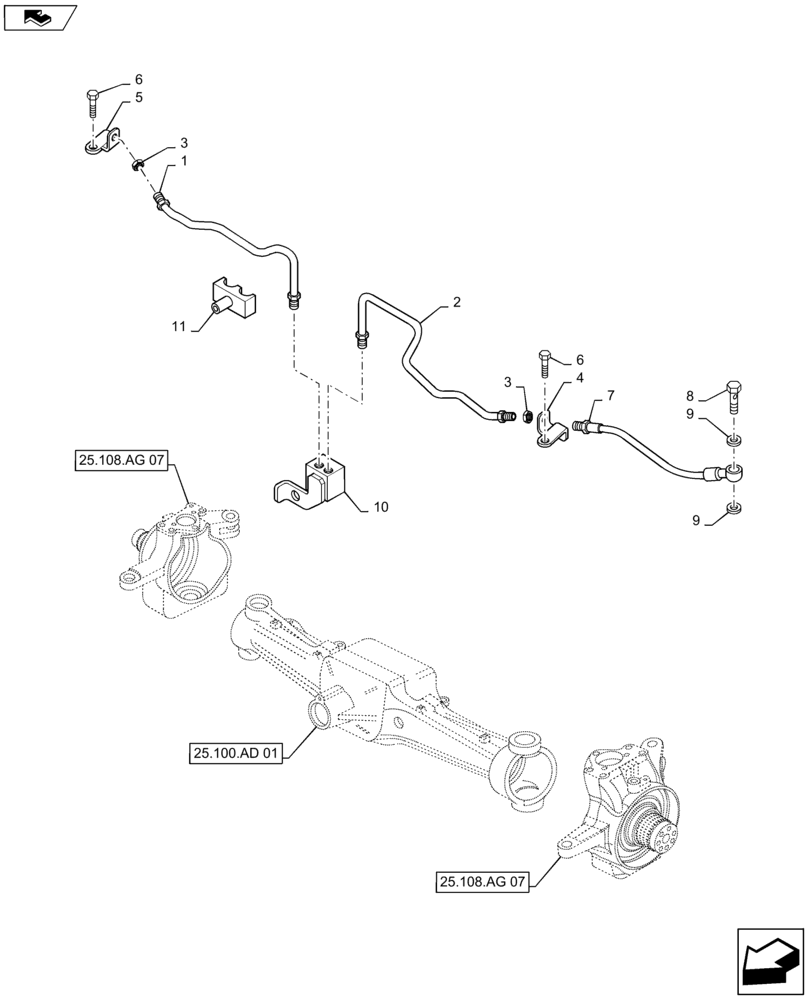

Запчасти Case IH MAXXUM 115 (33.204.AG[03]) - VAR - 330425 - CL.3 FRONT AXLE - BRAKE PIPES (33) - BRAKES & CONTROLS

1

87602113

BRAKE LINE

RH

1шт.

2

87602115

BRAKE LINE

LH

1шт.

3

10718114

THIN NUT,Thin, M16, 1.00mm Pitch, Cl 04, DAC

2шт.

4

87571108

BRACKET

LH

1шт.

5

87571109

BRACKET

RH

1шт.

6

15540324

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

7

5155700

HOSE,4.75mm ID x 315.00mm

2шт.

8

5155703

BANJO BOLT,M12 x 1.25 x 22mm

2шт.

9

87356828

SEALING WASHER,12.00mm ID x 20.00mm OD x 1.50mm

4шт.

10

87611523

BRACKET

1шт.

11

14575580

CLAMP BRACKET

3шт.
