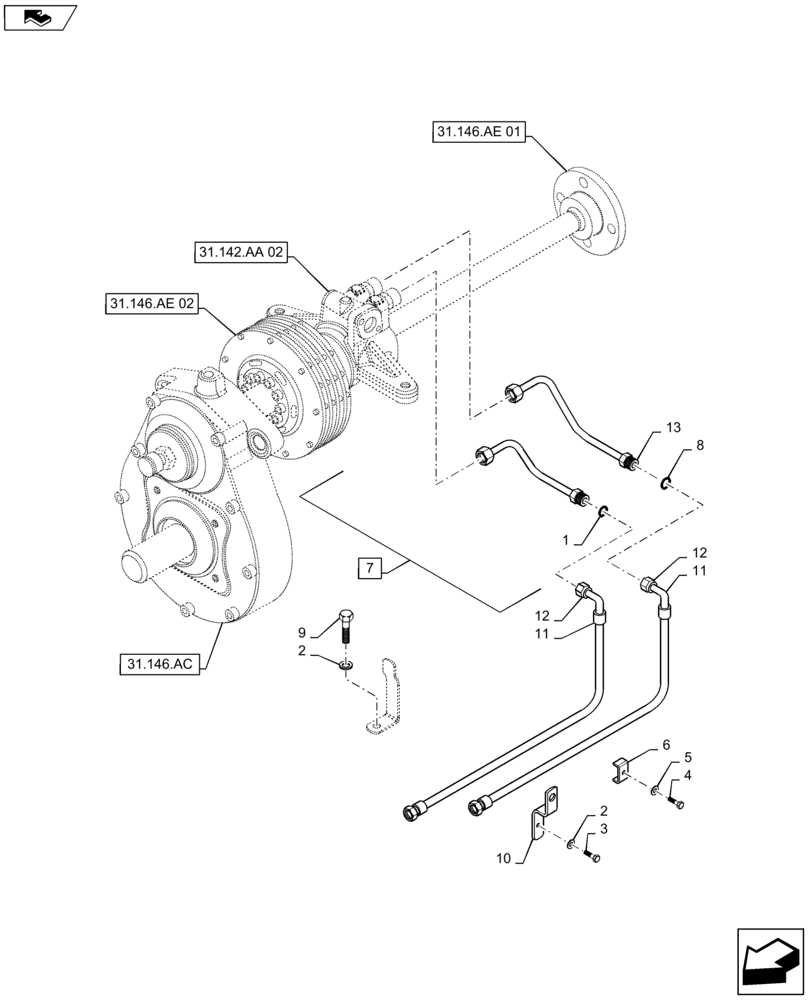

Запчасти Case IH MAXXUM 115 (31.142.AF[02]) - VAR - 333648, 334648, 743700 - INTEGRATED FRONT HPL WITH PTO - PIPES (31) - IMPLEMENT POWER TAKE OFF

1

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

2

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

3шт.

3

10979221

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8

2шт.

4

10902621

SCREW,Hex, M6 x 25mm, Cl 8.8

4шт.

5

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

6

82034363

CLAMP

4шт.

7

87539241

PIPE

Incl 1, 8,13

1шт.

8

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

9

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

1шт.

10

82034365

BRACKET

2шт.

11

87544004

HOSE

Feed, Maxxum 115, 125, 140 Models Only

1шт.

11

87541731

HOSE

Feed, Maxxum 110, 120, 130 Models Only

1шт.

12

87544003

HOSE

Return, Maxxum 115, 125, 140 Models Only

1шт.

12

87541732

HOSE

Return, Maxxum 110, 120, 130 Models Only

1шт.

13

NSS

NOT SOLD SEPARAT

Pipes, Incl in 7

1шт.
