(31.104.AN) - SUPPLY LINES TO PTO CLUTCH VALVE

Запчасти Case IH MAXXUM 115 (31.104.AN) - SUPPLY LINES TO PTO CLUTCH VALVE (31) - IMPLEMENT POWER TAKE OFF

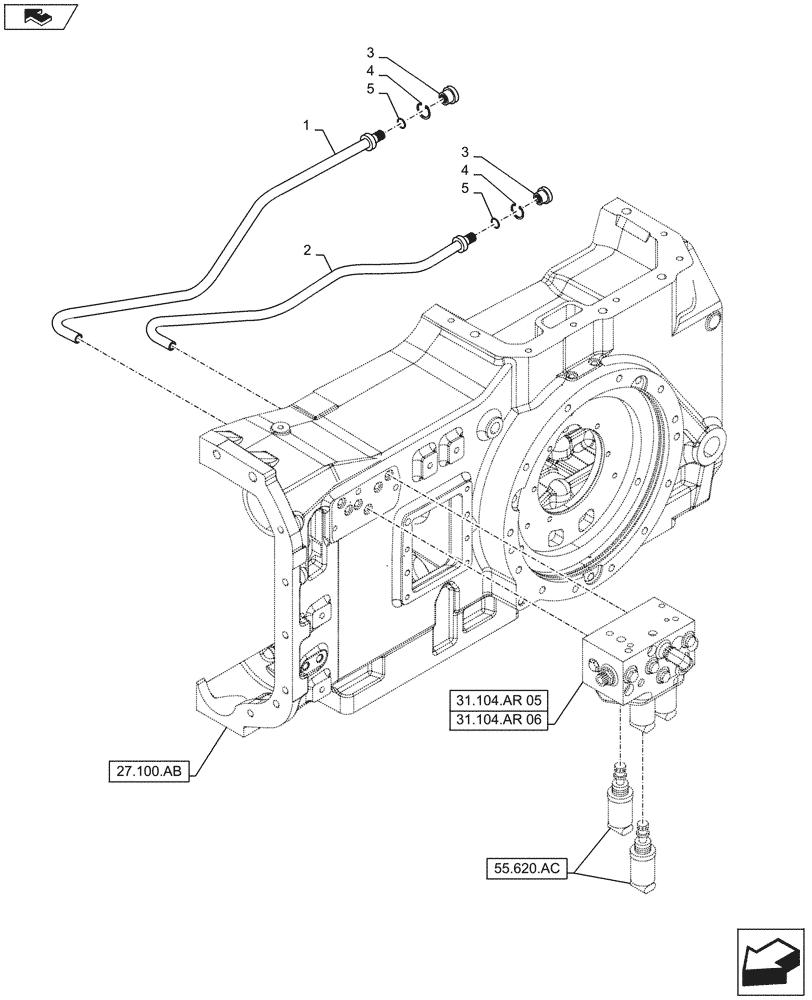

Схема запчастей Case IH MAXXUM 115 - (31.104.AN) - SUPPLY LINES TO PTO CLUTCH VALVE (31) - IMPLEMENT POWER TAKE OFF
home
4
3
5
2
3
1
4
5
55.620.ac
31.104.ar 06
31.104.ar 05
27.100.ab
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5193856

TUBE

Supply to Rear PTO Clutch

1шт.

2

5196279

TUBE

Brake PTO

1шт.

3

5186628

BUSHING,16mm ID x 22mm OD x 14mm L

2шт.

4

300625

SNAP RING,M16, Ext

2шт.

5

14453181

O-RING,0.489" ID x 0.07" Width

2шт.

Выбрано товаров: 5
