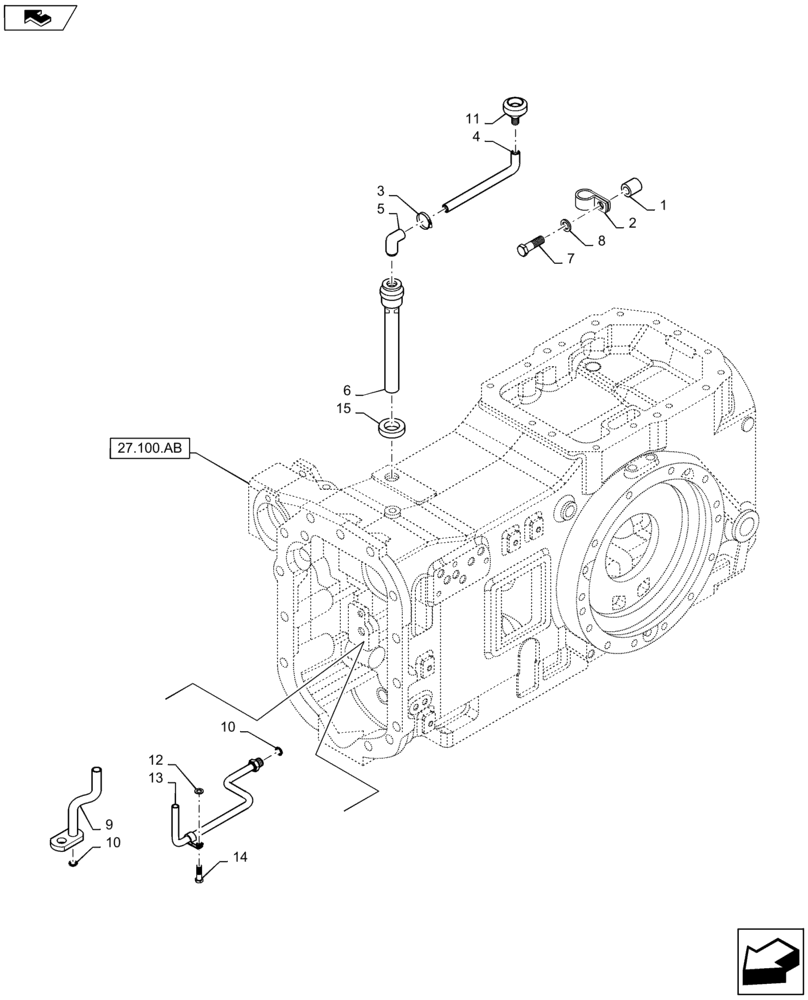

Запчасти Case IH MAXXUM 115 (27.100.AI [01]) - VAR - 330247, 743766, 330291, 743764, 331970, 331908, 330909, 331909, 743811, 331920 + STD TRANSMISSION 16X16 AND 17X16 (40 KM/H), SPS - REAR AXLE HOUSING, INNER PIPES AND BREATHERS (27) - REAR AXLE SYSTEM

1

13611211

SPACER,8.5mm ID x 15mm OD x 23mm L

1шт.

2

87302117

CLAMP,18.5mm ID, 9mm Bolt Hole, P Type

1шт.

3

82000599

CLAMP,22mm - 26mm

1шт.

4

82012599

FUEL HOSE,15.9mm ID x 800mm L

1шт.

5

47134073

PIPE

1шт.

6

47133085

BREATHER

1шт.

7

16044021

SCREW,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

8

83931520

WASHER,8.4mm ID x 17mm OD x 2mm Thk

1шт.

9

47135779

TUBE

EDC Oil Discharge Pipe, Std or Var 331908, 330909, 331909, 743811

1шт.

10

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

Std Equip or Var 330247, 743766, 330291, 743764

4шт.

11

83925022

BREATHER,.375-18 NPT

1шт.

12

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

1шт.

13

47136932

TUBE

Valid with Std Equip or Var 330247, 743766, 330291, 743764

1шт.

14

15970424

SCREW,Hex, M10 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

14

15540124

SCREW,Hex, M12 x 1.25 x 18mm, Cl 8.8, Full Thd

Valid with Std Equip or Var 330247, 743766, 330291, 743764

1шт.

15

10262160

SEAL,M28.4 x 34 x 2, Copper

1шт.
