(27.100.AI[02]) - VAR - 330247, 743766, 330291, 743764, 331970, 331908, 330909, 331909, 743811, 335245, 743673, 331920, 330921, 331921, 743696, 332923 + STD - TRANSMISSION 24X24 (40 KM/H) HI-LO - REAR AXLE HOUSING, INNER PIPES AND BREATHERS

Запчасти Case IH MAXXUM 115 (27.100.AI[02]) - VAR - 330247, 743766, 330291, 743764, 331970, 331908, 330909, 331909, 743811, 335245, 743673, 331920, 330921, 331921, 743696, 332923 + STD - TRANSMISSION 24X24 (40 KM/H) HI-LO - REAR AXLE HOUSING, INNER PIPES

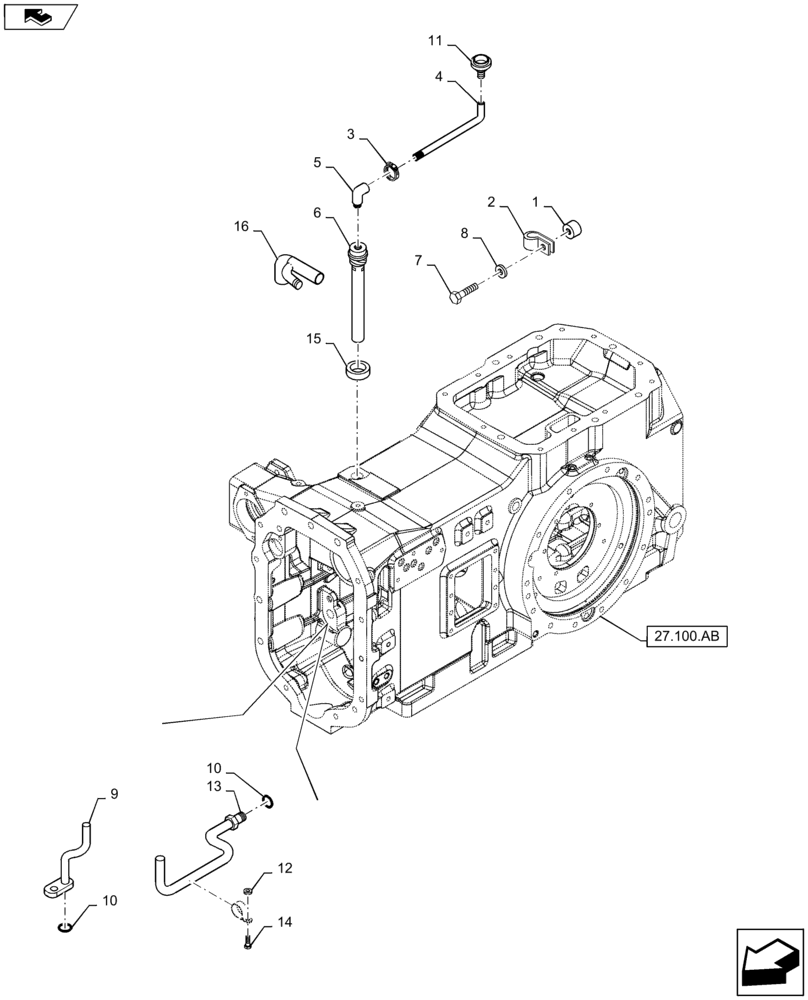

Схема запчастей Case IH MAXXUM 115 - (27.100.AI[02]) - VAR - 330247, 743766, 330291, 743764, 331970, 331908, 330909, 331909, 743811, 335245, 743673, 331920, 330921, 331921, 743696, 332923 + STD - TRANSMISSION 24X24 (40 KM/H) HI-LO - REAR AXLE HOUSING, INN
home
9
10
7
14
12
10
27.100.ab
4
11
1
3
5
13
6
8
15
2
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

13611211

SPACER,8.5mm ID x 15mm OD x 23mm L

1шт.

2

87302117

CLAMP,18.5mm ID, 9mm Bolt Hole, P Type

1шт.

3

82000599

CLAMP,22mm - 26mm

1шт.

4

82012599

FUEL HOSE,15.9mm ID x 800mm L

1шт.

5

47134073

PIPE

Valid with Std Equip or Var 331970, 331920

1шт.

6

47133085

BREATHER

1шт.

7

16044021

SCREW,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

8

83931520

WASHER,8.4mm ID x 17mm OD x 2mm Thk

1шт.

9

47135779

TUBE

EDC Oil Discharge Pipe, Valid with Std Equip or Var 331908, 330909, 331909, 743811

1шт.

10

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

4шт.

11

83925022

BREATHER,.375-18 NPT

1шт.

12

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

1шт.

13

47136932

TUBE

Differential Lube, Var 330247, 743766, 330291, 743764, 335245, 743673

1шт.

14

15970424

SCREW,Hex, M10 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

14

15540124

SCREW,Hex, M12 x 1.25 x 18mm, Cl 8.8, Full Thd

Var 330247, 743766, 330291, 743764, 335245, 743673

1шт.

15

10262160

SEAL,M28.4 x 34 x 2, Copper

1шт.

16

47135760

TUBE

Var 330921, 743696

1шт.
