(MAXXUM 115) - EP EFFICIENT POWER TRACTOR - TIER 4 (2/12-12/15)
/
(25) - FRONT AXLE SYSTEM
/

(25.102.AC[13]) - VAR - 330414, 330427 - CL.3 SUSPENDED FRONT AXLE - BEVEL GEAR AND ADJUSTING SHIMS

Запчасти Case IH MAXXUM 115 (25.102.AC[13]) - VAR - 330414, 330427 - CL.3 SUSPENDED FRONT AXLE - BEVEL GEAR AND ADJUSTING SHIMS (25) - FRONT AXLE SYSTEM

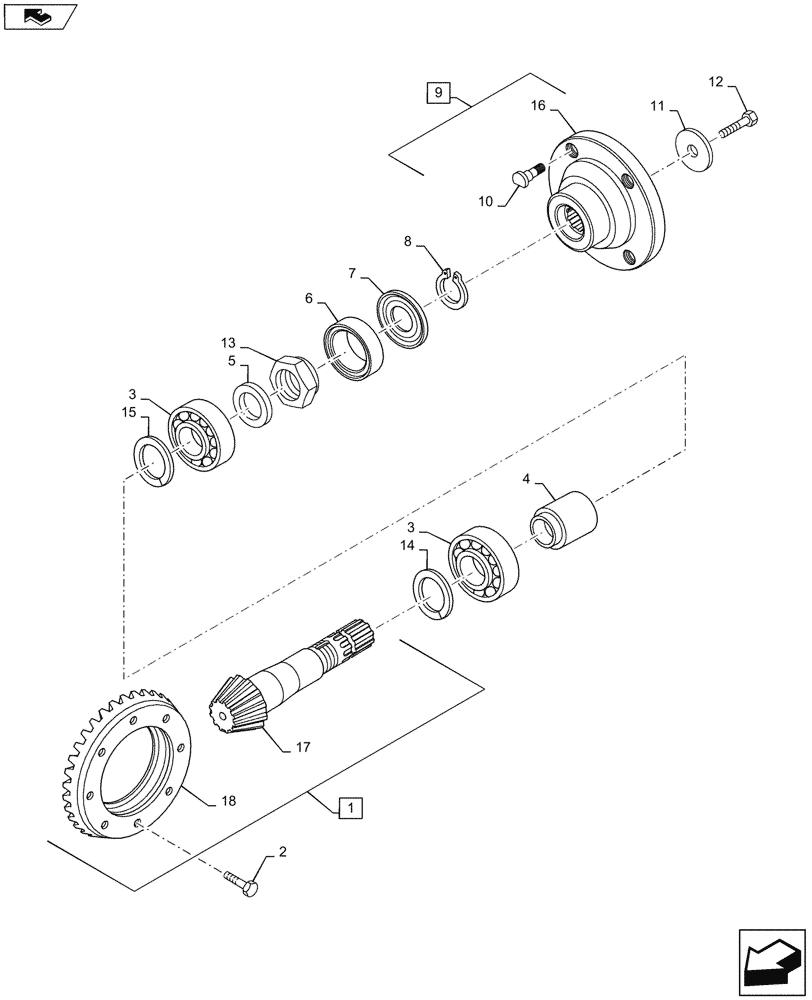

Схема запчастей Case IH MAXXUM 115 - (25.102.AC[13]) - VAR - 330414, 330427 - CL.3 SUSPENDED FRONT AXLE - BEVEL GEAR AND ADJUSTING SHIMS (25) - FRONT AXLE SYSTEM
home
11
7
17
8
10
4
18
5
1
6
3
2
12
13
9
15
3
14
16

№

Артикул

Название

Примечание

Количество

1

47582843

BEVEL GEAR

Ratio 10/34, Incl 17 and 18

1шт.

2

14274434

LOCK BOLT,Hex, M12 x 1.25 x 25mm, Cl 10.9, Full Thd

8шт.

3

5143109

TAPERED BEARING,41.27mm x 82.55mm x 26.54mm

2шт.

4

5197256

SPACER

1шт.

5

84161677

E-RING

1шт.

6

87349657

SEAL,37mm ID x 85mm OD x 15.5mm Thk

1шт.

7

87528144

SEAL PROTECTION

1шт.

8

11068476

SNAP RING,M36, Ext

1шт.

9

87350786

FLANGE

Incl 10, 16

1шт.

10

87550808

PIN,12.5mm OD x 37mm L

4шт.

11

87350787

WASHER

1шт.

12

15540431

SCREW,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.

13

84289762

NUT,M40,1.5mm Pitch

1шт.

14

5142027

SHIM,41.4mm ID x 58mm OD x 2.5mm Thk

1шт.

14

5142028

SHIM,41.4mm ID x 58mm OD x 2.6mm Thk

1шт.

14

5142029

SHIM,41.4mm ID x 58mm OD x 2.7mm Thk

1шт.

14

5142030

SHIM,41.4mm ID x 58mm OD x 2.8mm Thk

1шт.

14

5142031

SHIM,41.4mm ID x 58mm OD x 2.9mm Thk

1шт.

14

5142032

SHIM,41.4mm ID x 58mm OD x 3mm Thk

1шт.

14

5142033

SHIM,41.4mm ID x 58mm OD x 3.1mm Thk

1шт.

14

5142034

SHIM,41.4mm ID x 58mm OD x 3.2mm Thk

1шт.

14

5142035

SHIM,41.4mm ID x 58mm OD x 3.3mm Thk

1шт.

14

5142036

SHIM,41.4mm ID x 58mm OD x 3.4mm Thk

1шт.

14

5142037

SHIM,41.4mm ID x 58mm OD x 3.5mm Thk

1шт.

14

5142038

SHIM,41.4mm ID x 58mm OD x 3.6mm Thk

1шт.

14

5142039

SHIM,41.4mm ID x 58mm OD x 3.7mm Thk

1шт.

15

5169288

SHIM,41.7mm ID x 48mm OD x 2.25mm Thk

1шт.

15

5169289

SHIM,41.7mm ID x 48mm OD x 2.3mm Thk

1шт.

15

5169290

SHIM,41.7mm ID x 48mm OD x 2.35mm Thk

1шт.

15

5169291

SHIM,41.7mm ID x 48mm OD x 2.4mm Thk

1шт.

15

5169292

SHIM,41.7mm ID x 48mm OD x 2.45mm Thk

1шт.

15

5169293

SHIM,41.7mm ID x 48mm OD x 2.5mm Thk

1шт.

15

5169294

SHIM,41.7mm ID x 48mm OD x 2.55mm Thk

1шт.

15

5169295

SHIM,41.7mm ID x 48mm OD x 2.6mm Thk

1шт.

15

5169296

SHIM,41.7mm ID x 48mm OD x 2.65mm Thk

1шт.

15

5169297

SHIM,41.7mm ID x 48mm OD x 2.7mm Thk

1шт.

15

5169298

SHIM,41.7mm ID x 48mm OD x 2.75mm Thk

1шт.

15

5169299

SHIM,41.7mm ID x 48mm OD x 2.8mm Thk

1шт.

15

5169300

SHIM,41.7mm ID x 48mm OD x 2.85mm Thk

1шт.

15

5169301

SHIM,41.7mm ID x 48mm OD x 2.9mm Thk

1шт.

15

5169302

SHIM,41.7mm ID x 48mm OD x 2.95mm Thk

1шт.

15

5169303

SHIM,41.7mm ID x 48mm OD x 3mm Thk

1шт.

15

5169304

SHIM,41.7mm ID x 48mm OD x 3.05mm Thk

1шт.

15

5169305

SHIM,41.7mm ID x 48mm OD x 3.1mm Thk

1шт.

15

5169306

SHIM,41.7mm ID x 48mm OD x 3.15mm Thk

1шт.

15

5169307

SHIM,41.7mm ID x 48mm OD x 3.2mm Thk

1шт.

15

5169308

SHIM,41.7mm ID x 48mm OD x 3.25mm Thk

1шт.

15

5169309

SHIM,41.7mm ID x 48mm OD x 3.3mm Thk

1шт.

15

5169310

SHIM,41.7mm ID x 48mm OD x 3.35mm Thk

1шт.

15

5169311

SHIM,41.70mm ID x 48.00mm OD x 3.40mm T

1шт.

15

5169312

SHIM,41.7mm ID x 48mm OD x 3.45mm Thk

1шт.

16

NSS

NOT SOLD SEPARAT

Flange, Incl in 9

1шт.

17

NSS

NOT SOLD SEPARAT

Pinion, Incl in 1

1шт.

18

NSS

NOT SOLD SEPARAT

Gear, Incl in 1

1шт.

Выбрано товаров: 54
