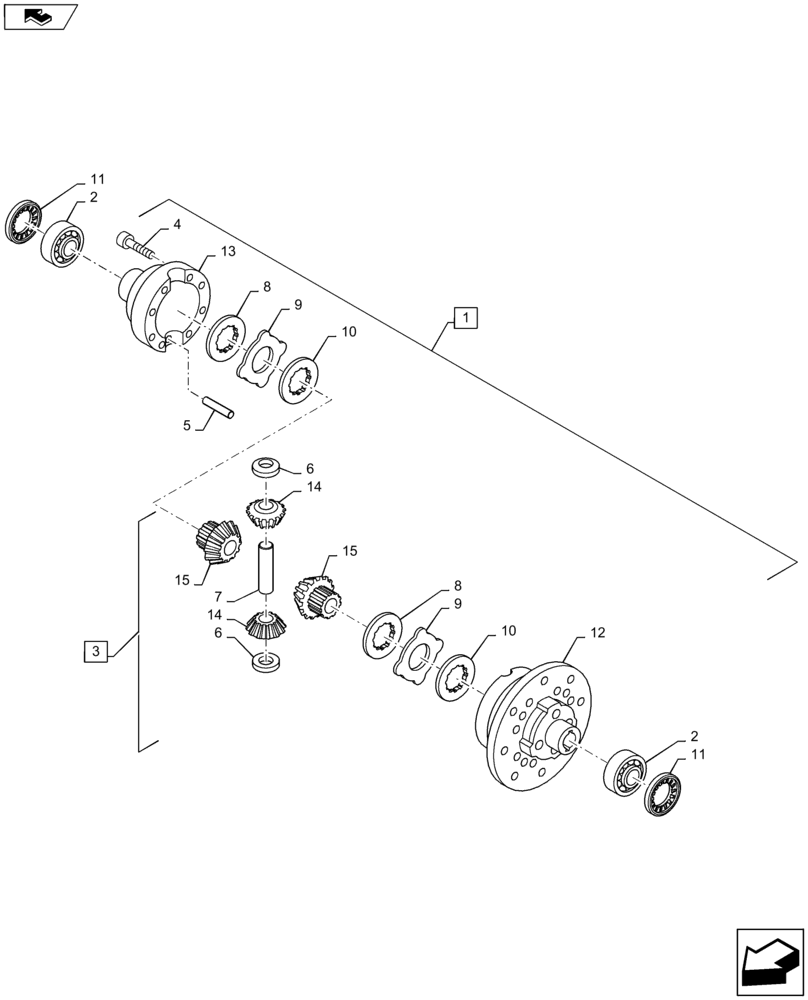

Запчасти Case IH MAXXUM 115 (25.102.AC[09]) - STD + VAR - 330425 - CL.3 FRONT AXLE - DIFFERENTIAL - BREAKDOWN (25) - FRONT AXLE SYSTEM

1

5162583

DIFFERENTIAL GEAR

Incl 3 - 10, 12 - 15

1шт.

2

24903450

TAPERED BEARING,60mm ID x 95mm OD x 23mm W

2шт.

3

1930983

KIT

Incl 6, 7, 14, 15

1шт.

4

14421034

HEX SOC SCREW,M10 x 70mm, Cl 10.9

12шт.

5

9966356

ROLL PIN,7mm OD x 40mm L

1шт.

6

9966352

THRUST WASHER

2шт.

7

9966354

SHAFT

1шт.

8

9966308

PLATE

2шт.

9

9966309

DRIVEN PLATE

10шт.

10

9966310

PLATE

8шт.

11

4996750

RING NUT,M100 x 2

2шт.

12

NSS

NOT SOLD SEPARAT

Flange, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Coupling Half, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Gear, Incl in 3

2шт.

15

NSS

NOT SOLD SEPARAT

Pinion, Incl in 3

2шт.
