Запчасти Case IH MAXXUM 115 (25.102.AC[03]) - STD + VAR - 330425 - CL.3 FRONT AXLE - DIFFERENTIAL CARRIER (25) - FRONT AXLE SYSTEM

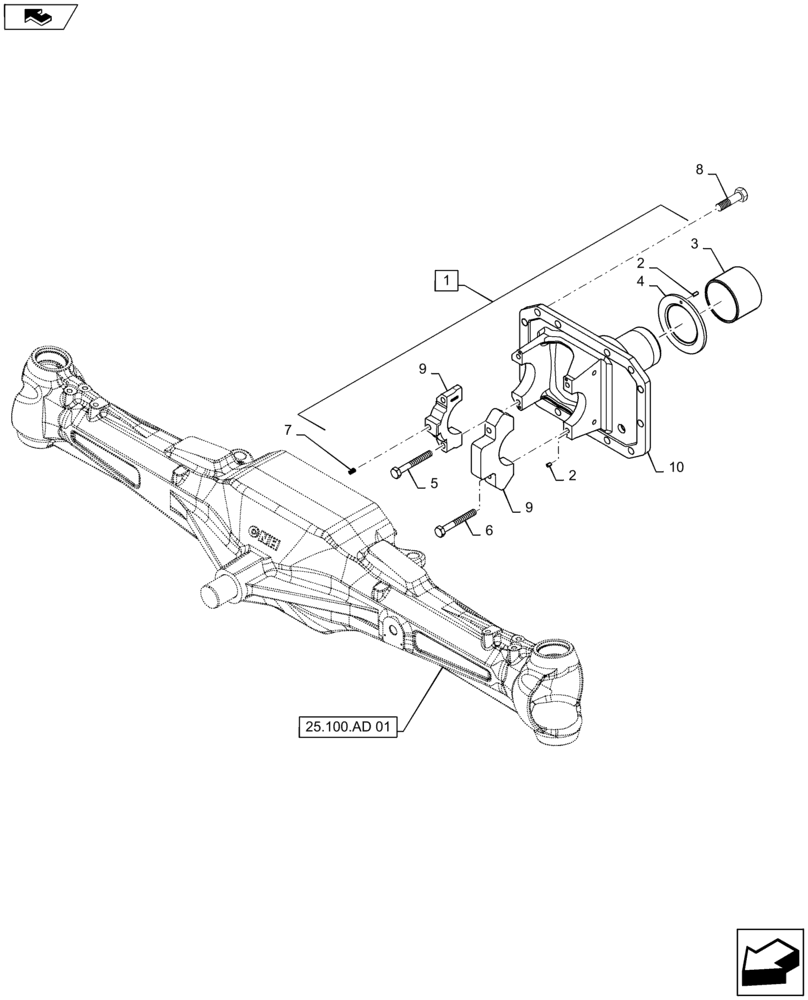

Схема запчастей Case IH MAXXUM 115 - (25.102.AC[03]) - STD + VAR - 330425 - CL.3 FRONT AXLE - DIFFERENTIAL CARRIER (25) - FRONT AXLE SYSTEM
1
7
3
home
9
25.100.ad 01
8
6
5
4
2
9
2
10

Артикул

Название

Примечание

Количество

1

87523104

SUPPORT

Incl 2 - 6, 9, 10

1шт.

2

4966244

PIN,5mm OD x 15mm L

2шт.

3

5136120

BUSHING,90mm ID x 99.05mm OD x 72mm L

1шт.

4

5136119

RING,90.3mm ID x 136mm OD x 5mm Thk

1шт.

5

14275334

BOLT,Lock, Hex, M12 x 1.25 x 70mm, Cl 10.9

2шт.

6

14276934

BOLT,Hex, M12 x 1.25 x 78mm, Cl 10.9

2шт.

7

13798231

SET SCREW,Hex Skt, M6 x 25mm, Cl 10.9, Full Thd, Cone Pt

1шт.

8

16217734

BOLT,Hex, M16 x 1.5 x 50mm, Cl 10.9, Full Thd

10шт.

9

NSS

NOT SOLD SEPARAT

Brackets, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Carrier, Incl in 1

1шт.

Выбрано товаров: 10
