Запчасти Case IH MAXXUM 115 (23.314.AH[01]) - VAR - 330414, 330427 - CL.3 SUSPENDED FRONT AXLE - BEARINGS AND DRIVE SHAFT CARRIER ARM (23) - FOUR WHEEL DRIVE SYSTEM

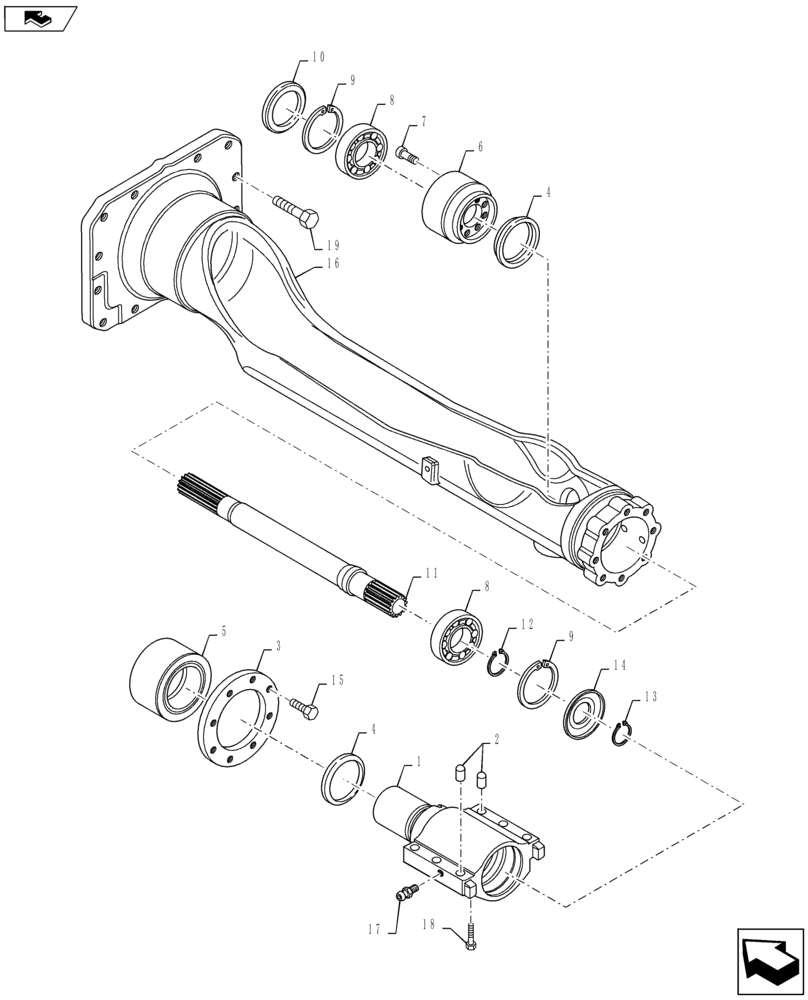

Схема запчастей Case IH MAXXUM 115 - (23.314.AH[01]) - VAR - 330414, 330427 - CL.3 SUSPENDED FRONT AXLE - BEARINGS AND DRIVE SHAFT CARRIER ARM (23) - FOUR WHEEL DRIVE SYSTEM
5
11
13
16
8
15
14
10
7
9
19
3
1
8
12
6
9
2
17
4
home
4
18

Артикул

Название

Примечание

Количество

1

5198725

SUPPORT

Incl 2

1шт.

2

82020394

PIN,M18 x 30.00mm

2шт.

3

5197569

PLATE

1шт.

4

5197676

SEAL,80mm ID x 100mm OD x 5mm Thk

2шт.

5

47132210

BALL JOINT

1шт.

6

5197208

SUPPORT

1шт.

7

14833634

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 10.9, Full Thd

8шт.

8

28996690

BALL BEARING,35mm x 80mm x 21mm

2шт.

9

11061976

SNAP RING,M80, Int

2шт.

10

5198541

PLATE,62.2mm ID x 85mm OD x 1mm Thk

1шт.

11

5197193

SHAFT

1шт.

12

11068376

SNAP RING,M35, Ext x 1.5 Thk

1шт.

13

11067876

SNAP RING,M30, Ext

1шт.

14

5150371

DISC,35.2mm ID x 80mm OD x 6mm Thk

1шт.

15

14233634

LOCK BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd

8шт.

16

87383940

ARM

For Maxxum 110, 120, 130

1шт.

16

87340148

ARM

For Maxxum 115, 125, 140

1шт.

17

13407211

LUBE NIPPLE,M10 x 1

2шт.

18

14272134

LOCK BOLT,Hex, M18 x 1.5 x 70mm, Cl 10.9

4шт.

19

11254134

SCREW,Hex, M16 x 1.5 x 80mm, Cl 10.9

12шт.

Выбрано товаров: 20
