Запчасти Case IH MAXXUM 115 (21.900.AA) - HYDRAULIC PUMPS GEARS (21) - TRANSMISSION

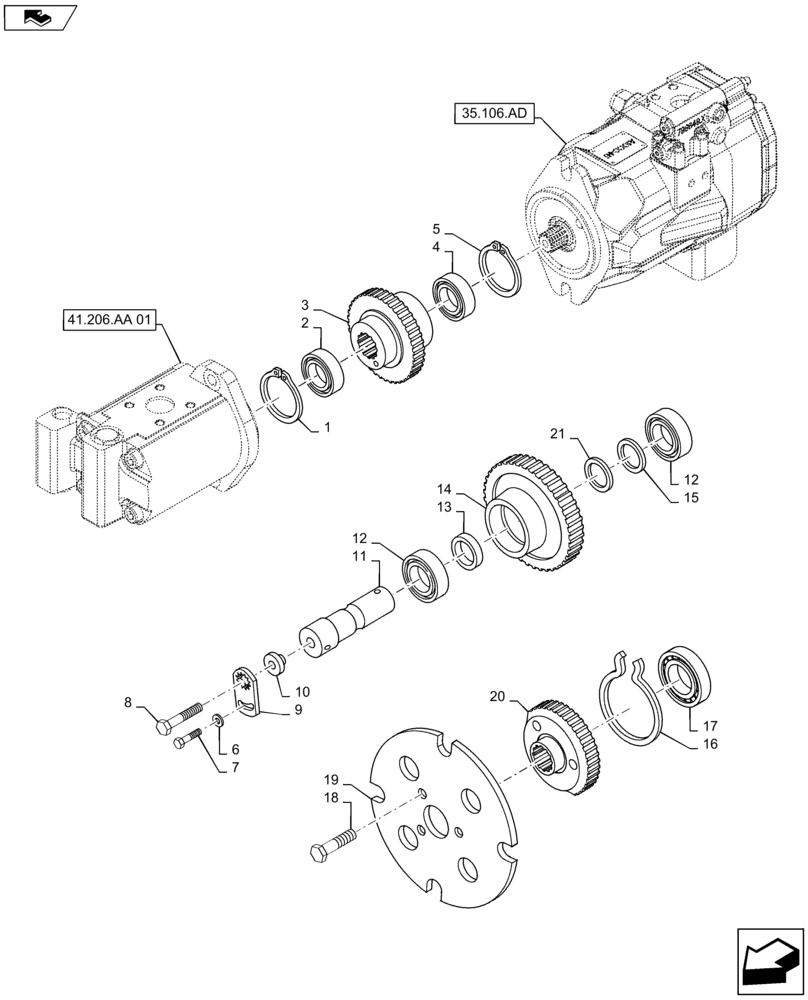

Схема запчастей Case IH MAXXUM 115 - (21.900.AA) - HYDRAULIC PUMPS GEARS (21) - TRANSMISSION
1
18
11
17
3
4
home
6
10
19
12
21
35.106.ad
15
20
8
16
14
2
7
13
9
12
41.206.aa 01
5

Артикул

Название

Примечание

Количество

1

11061976

SNAP RING,M80, Int

1шт.

2

20915780

BALL BEARING,40mm ID x 80mm OD x 18mm W

1шт.

3

47126607

DRIVEN GEAR,28T

1шт.

4

5186964

BALL BEARING,55mm ID x 100mm OD x 21mm W

1шт.

5

11062976

SNAP RING,Int, M100 x 3

1шт.

6

11190579

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.

7

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

8

15972834

BOLT,Hex, M10 x 1.25 x 150mm, Cl 10.9

1шт.

9

5198177

PLATE

1шт.

10

5197772

RING

1шт.

11

47124774

PIN,30mm OD x 124.7mm L

1шт.

12

26800120

TAPERED BEARING,30mm x 62mm x 21.25mm

2шт.

13

5191844

SPACER,30.4mm ID x 37.3mm OD x 8.3mm L

1шт.

14

5191840

GEAR,45T

1шт.

15

5197777

SPACER,30.5mm ID x 38mm OD x 3.3mm L

1шт.

16

5192305

SNAP RING,M80.6, Ext

1шт.

17

5198391

BALL BEARING,45mm ID x 85mm OD x 19mm W

1шт.

18

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

19

5195980

DISC

1шт.

20

47131427

GEAR,42T

1шт.

21

5169854

SPACER,30.5mm ID x 38mm OD x 11.8mm L

1шт.

21

5169855

SPACER,30.55mm ID x 38mm OD x 11.82mm L

1шт.

21

5169856

SPACER,30.5mm ID x 38mm OD x 11.85mm L

1шт.

21

5169857

SPACER,30.5mm ID x 38mm OD x 11.88mm L

1шт.

21

5169858

SPACER,30.50mm ID x 38.00mm OD x 11.900mm T

1шт.

21

5169859

SPACER,30.50mm ID x 38.00mm OD x 11.925mm T

1шт.

21

5169860

SPACER,30.5mm ID x 38mm OD x 11.95mm L

1шт.

21

5169861

SPACER,30.50mm ID x 38.00mm OD x 11.975mm T

1шт.

21

5169862

SPACER,30.50mm ID x 38.00mm OD x 12.000mm T

1шт.

21

5169863

SPACER,30.50mm ID x 38.00mm OD x 12.025mm T

1шт.

21

5169864

SPACER,30.50mm ID x 38.00mm OD x 12.050mm T

1шт.

21

5169865

SPACER,30.50mm ID x 38.00mm OD x 12.075mm T

1шт.

21

5169866

SPACER,30.50mm ID x 38.00mm OD x 12.100mm T

1шт.

21

5169867

SPACER,30.50mm ID x 38.00mm OD x 12.125mm T

1шт.

21

5169868

SPACER,30.50mm ID x 38.00mm OD x 12.150mm T

1шт.

21

5169869

SPACER,30.50mm ID x 38.00mm OD x 12.175mm T

1шт.

21

5169870

SPACER,30.50mm ID x 38.00mm OD x 12.200mm T

1шт.

21

5169871

SPACER,30.5mm ID x 38mm OD x 12.22mm L

1шт.

21

5169872

SPACER,30.50mm ID x 38.00mm OD x 12.250mm T

1шт.

21

5169873

SPACER,30.50mm ID x 38.00mm OD x 12.275mm T

1шт.

21

5169874

SPACER,30.50mm ID x 38.00mm OD x 12.300mm T

1шт.

21

5169875

SPACER,30.5mm ID x 38mm OD x 12.32mm L

1шт.

21

5169876

SPACER,30.50mm ID x 38.00mm OD x 12.350mm T

1шт.

21

5169877

SPACER,30.50mm ID x 38.00mm OD x 12.375mm T

1шт.

21

5169878

SPACER,30.50mm ID x 38.00mm OD x 12.240mm T

1шт.

21

5169879

SPACER,30.50mm ID x 38.00mm OD x 12.425mm T

1шт.

21

5169880

SPACER,30.50mm ID x 38.00mm OD x 12.450mm T

1шт.

21

5169881

SPACER,30.50mm ID x 38.00mm OD x 12.475mm T

1шт.

21

5169882

SPACER,30.50mm ID x 38.00mm OD x 12.500mm T

1шт.

21

5169883

SPACER,30.50mm ID x 38.00mm OD x 12.525mm T

1шт.

21

5169884

SPACER,30.50mm ID x 38.00mm OD x 12.550mm T

1шт.

21

5169885

SPACER,30.5mm ID x 38mm OD x 12.57mm L

1шт.

21

5169886

SPACER,30.50mm ID x 38.00mm OD x 12.600mm T

1шт.

Выбрано товаров: 53
