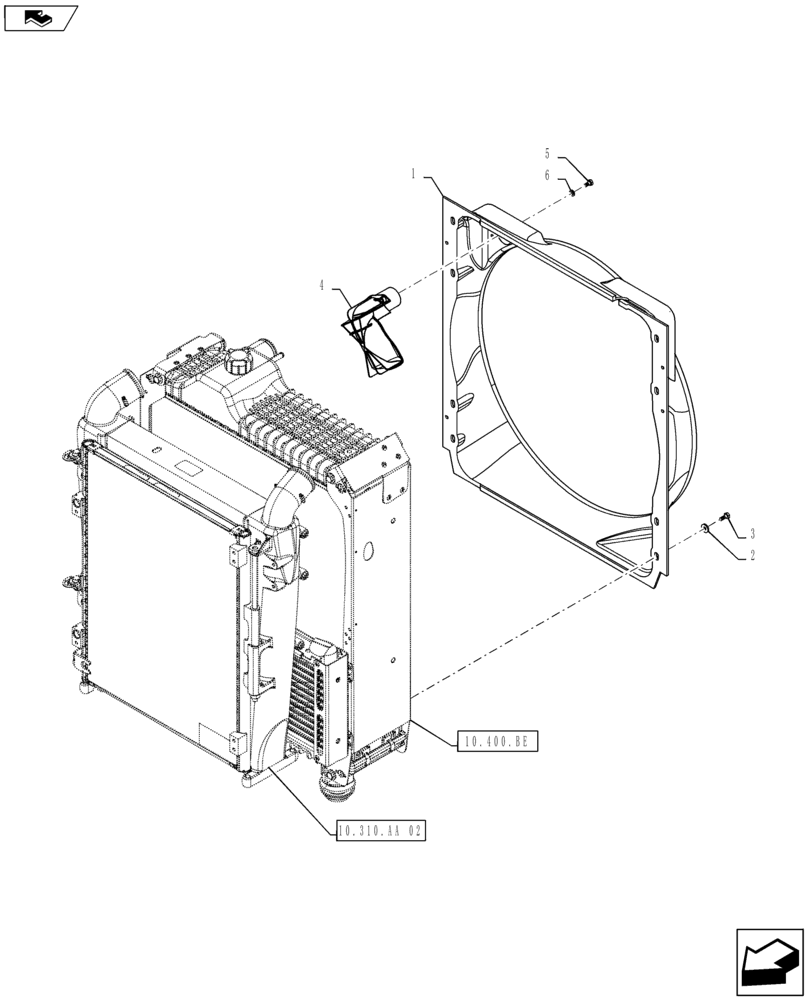

Запчасти Case IH MAXXUM 115 (10.400.BF[02]) - STD + VAR - 330189, 332189, 743763 - RADIATOR FAN SHROUD (10) - ENGINE

1

84472845

SHROUD

Maxxum 110

1шт.

1

84472325

SHROUD

Maxxum 120, 130, 115, 125, 140

1шт.

2

81872184

WASHER,6.4mm ID x 17mm OD

8шт.

3

87377778

SCREW,Hex, M6 x 16mm, Cl 8.8

8шт.

4

84185540

DUST CAP

Only with Air Filter with Precleaner Spin Tube, Var 330189, 332189, Commercial Code 743763

1шт.

5

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

Only with Air Filter with Precleaner Spin Tube, Var 330189, 332189, Commercial Code 743763

2шт.

6

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

Only with Air Filter with Precleaner Spin Tube, Var 330189, 332189, Commercial Code 743763

2шт.
