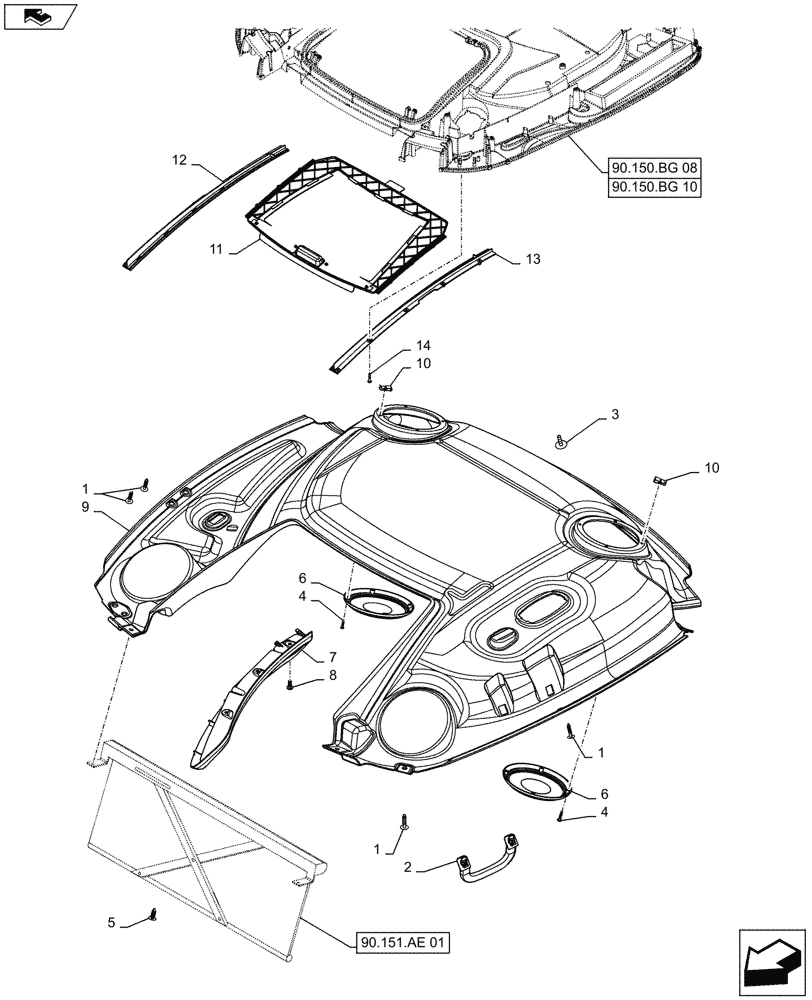

Запчасти Case IH MAXXUM 115 (90.160.AX[01]) - VAR - 330827, 743710 + STD - CAB INTERIOR TRIM WITH SUN CURTAIN FOR ROOF WITH HIGH PROFILE - HEADLINER - C9018 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

82033699

PLASTIC PLUG,6.8mm D x 35mm L, Grey

4шт.

2

84227380

HANDLE

1шт.

3

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

1шт.

4

15642707

SCREW,Pozidriv Pan Hd, M3.5 x 16mm

8шт.

5

81870039

FASTENER,M8 x 1.5 x 22mm

1шт.

6

82022875

GRILLE,185mm OD

2шт.

7

87673408

CONSOLE

1шт.

7

87673403

CONSOLE

1шт.

Only with Telescopic/Heated/Remote adjust Mirrors with High Visibility Panel, VAR 330827, 743710

1шт.

8

81870066

SCREW,Torx, Pan HD, M6 x 12mm, Cl 8.8

3шт.

9

87521214

ROOF LINING

1шт.

10

81872135

NUT,Retaining, M4.20

8шт.

11

87640273

SUN VISOR

1шт.

12

87640268

GUIDE

RH

1шт.

13

87640267

GUIDE

LH

1шт.

14

82034113

SELF-TAP SCREW,Torx, Round HD, M5 x 3 x 25mm

10шт.
