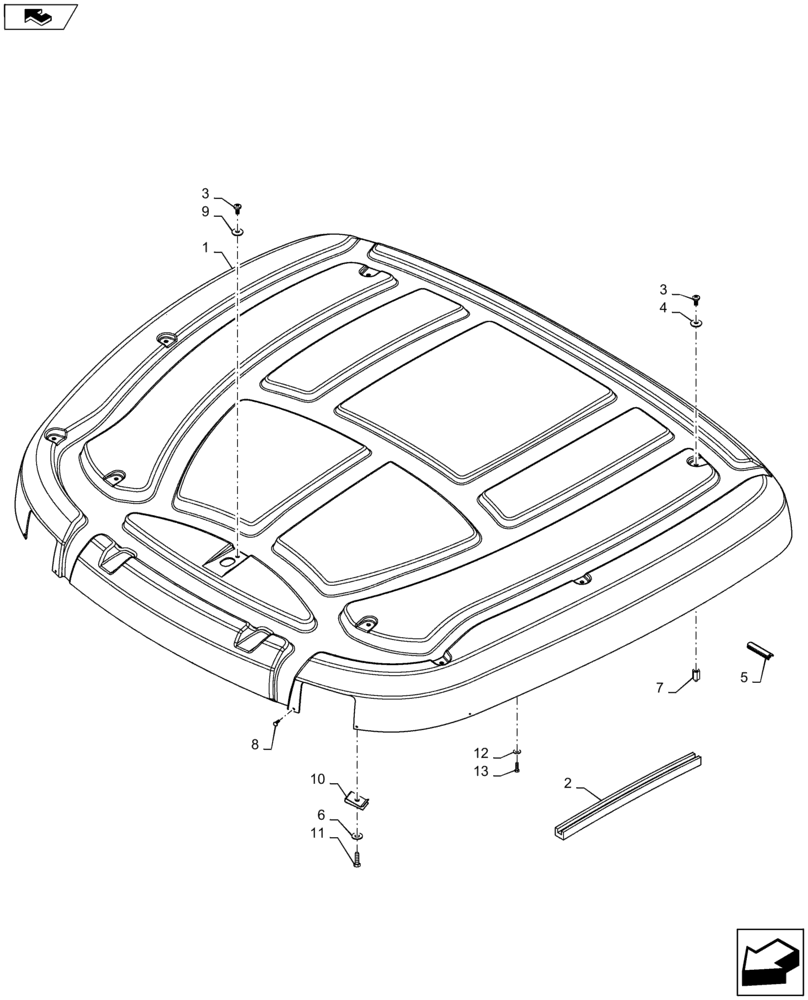

Запчасти Case IH MAXXUM 115 (90.150.BG[04]) - VAR - 331515, 743729 - ISO ROOF WITH HIGH PROFILE LESS HIGH VISIBILITY PANEL - ROOF (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84316054

ROOF

1шт.

2

82028318

SEAL

1шт.

3

83998908

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 4.8, Full Thd

9шт.

4

82037891

SEALING WASHER,6mm ID x 19mmOD x 1.5mm Thk

8шт.

5

82034370

SEAL

1шт.

6

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

7

82034114

SPACER,M6 x 25mm L

8шт.

8

82034112

SELF-TAP SCREW,Pan, M3 x 10mm

9шт.

9

12647607

WASHER,6.15mm ID x 16mm OD x 2mm Thk

1шт.

10

83935425

SPRING NUT,Prev Torque, #8

4шт.

11

15213321

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

4шт.

12

14496307

WASHER,5.3mm ID x 10mm OD x 1mm Thk

6шт.

13

84187830

SCREW,Torx, Pan HD, M4.2 x 1.4 x 13mm

6шт.
