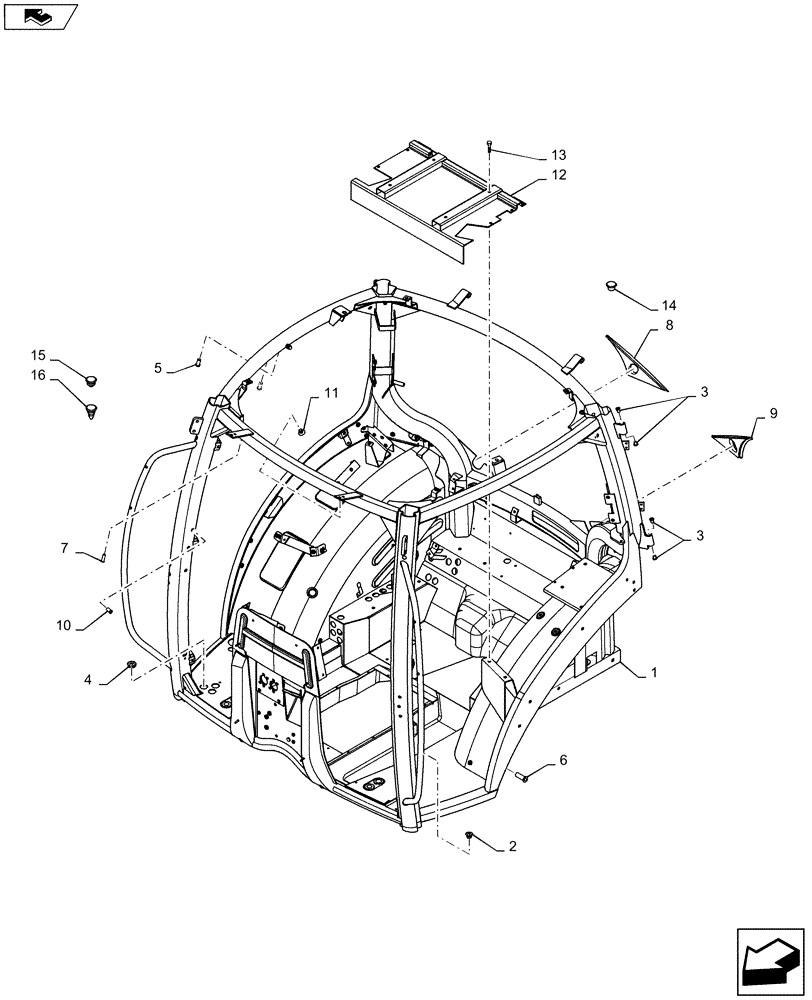

Запчасти Case IH MAXXUM 115 (90.150.AC[02]) - VAR - 331619 - CAB FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87499411

CAB BODY

1шт.

2

82003283

PLUG,10.5mm OD

8шт.

3

82027697

BUSHING,9.5mm ID x 18mm OD x 17mm L

8шт.

4

82031549

BLANK-OFF PLUG,35mm OD, Black

3шт.

5

82024992

RIVET,Flng, 11mm OD x 19.5mm L

15шт.

6

82024991

NUT,M6

1шт.

7

82024990

RIVET,Flng, 7mm OD x 16mm L

2шт.

8

82036801

PLUG

RH

1шт.

9

82036800

PLUG

LH

1шт.

10

84214045

RIVET,Flat, M10 OD x 25.75mm L

5шт.

11

87716701

PLUG,Blanking, Snap, 6.40mm Dia

1шт.

12

82033893

PLATE

1шт.

13

16287121

BOLT,Hex, M8 x 20mm, Cl 8.8, Full Thd

6шт.

14

87341141

PLUG

3шт.

14

84234592

PLUG,M20.7 x 10.5mm

2шт.

14

81865132

PLUG,11.20mm

2шт.

15

81865569

PLUG,Grommet automatic pick up

1шт.

16

87716701

PLUG,Blanking, Snap, 6.40mm Dia

2шт.
