Запчасти Case IH MAXXUM 115 (90.124.AK[02]) - VAR - 330709 - DELUXE SEAT WITH LOW FREQUENCY AIR SUSPENSION, HEATED CUSHIONS, BELT AND SWITCH - BREAKDOWN SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

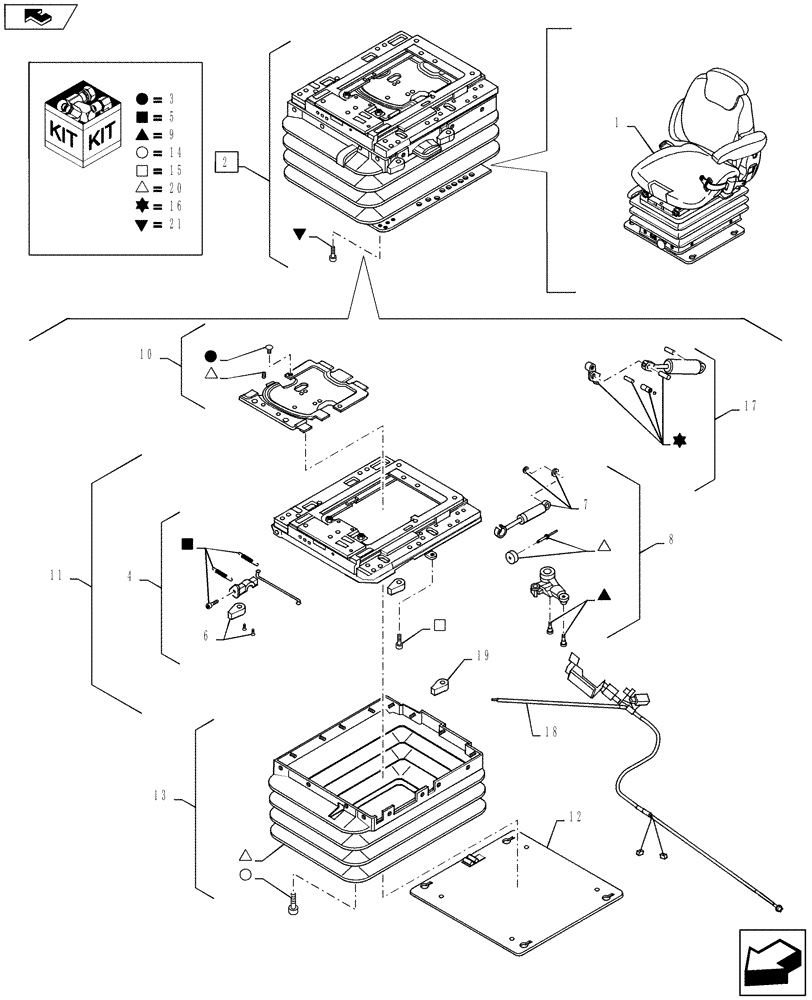

Схема запчастей Case IH MAXXUM 115 - (90.124.AK[02]) - VAR - 330709 - DELUXE SEAT WITH LOW FREQUENCY AIR SUSPENSION, HEATED CUSHIONS, BELT AND SWITCH - BREAKDOWN SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
15
21
16
20
15
14
9
20
6
1
3
9
2
5
14
17
3
7
10
21
home
16
19
20
20
21
13
5
15
16
9
11
14
5
18
4
8
12
20

Артикул

Название

Примечание

Количество

1

84171102

SEAT

1шт.

2

84191066

SUSPENSION

1шт.

3

84191006

REPAIR KIT

1шт.

4

84190989

ADJUSTER

Incl 5, 6

1шт.

5

84191015

REPAIR KIT

1шт.

6

1472163

HANDLE

1шт.

7

84190985

SHOCK ABSORBER

1шт.

8

84190983

SHOCK ABSORBER

Incl 7, 9, 20

1шт.

9

84191002

REPAIR KIT

1шт.

10

84190947

COVER

Incl 3, 20

1шт.

11

84190966

PLATE

Incl 4, 15

1шт.

12

84191021

PLATE

1шт.

13

84190978

BELLOWS

Incl 14, 20

1шт.

14

84191003

REPAIR KIT

1шт.

15

84191010

REPAIR KIT

1шт.

16

84190998

SERVICE KIT

1шт.

17

84191071

KIT

Incl 16

1шт.

18

84191074

WIRE HARNESS

1шт.

19

82035123

HANDLE

1шт.

20

84190975

REPAIR KIT

1шт.

21

84191020

REPAIR KIT

1шт.

Выбрано товаров: 21
