Запчасти Case IH MAXXUM 115 (90.118.BM[03]) - VAR - 330827, 331827, 743710 - TELESCOPIC, HEATED AND WITH REMOTE ADJUSTMENT REAR VIEW MIRRORS (90) - PLATFORM, CAB, BODYWORK AND DECALS

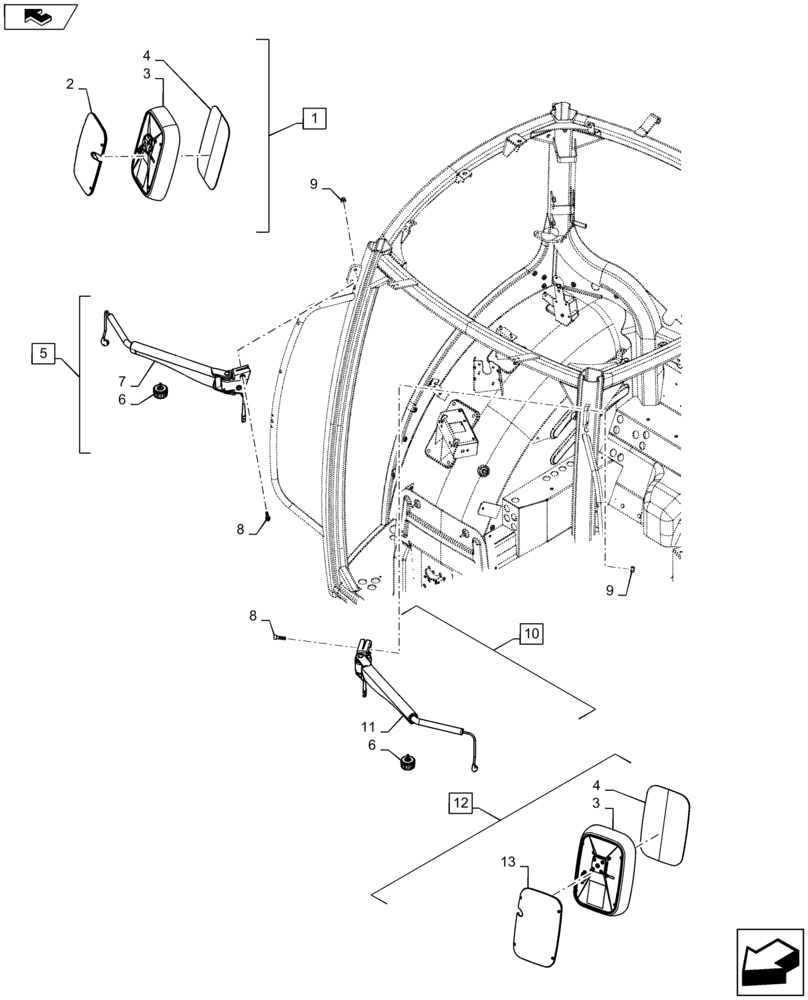

Схема запчастей Case IH MAXXUM 115 - (90.118.BM[03]) - VAR - 330827, 331827, 743710 - TELESCOPIC, HEATED AND WITH REMOTE ADJUSTMENT REAR VIEW MIRRORS (90) - PLATFORM, CAB, BODYWORK AND DECALS
7
2
1
3
10
12
4
4
13
home
6
8
9
5
9
3
6
8
11

Артикул

Название

Примечание

Количество

1

87316908

RH MIRROR,238mm x 328mm

RH, Incl 2 - 4

1шт.

2

87531075

COVER

1шт.

3

NSS

NOT SOLD SEPARAT

Housing, Incl in 1 and 12

2шт.

4

87706600

MIRROR

2шт.

5

84398576

ARM

RH, Incl 6, 7

1шт.

6

87365131

KNOB

2шт.

7

NSS

NOT SOLD SEPARAT

Arm, Incl in 5

1шт.

8

81869630

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

9

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

4шт.

10

87346605

ARM

LH, Incl 6, 11

1шт.

11

NSS

NOT SOLD SEPARAT

Arm, Incl in 10

1шт.

12

87316907

LH MIRROR

LH, Incl 3, 4, 13

1шт.

13

87578865

COVER

1шт.

Выбрано товаров: 13
