(90.116.AC[07]) - VAR - 338122, 338201 - STANDARD REAR FENDERS WITH EXTENSIONS - MUDGUARD, LH

Запчасти Case IH MAXXUM 115 (90.116.AC[07]) - VAR - 338122, 338201 - STANDARD REAR FENDERS WITH EXTENSIONS - MUDGUARD, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS

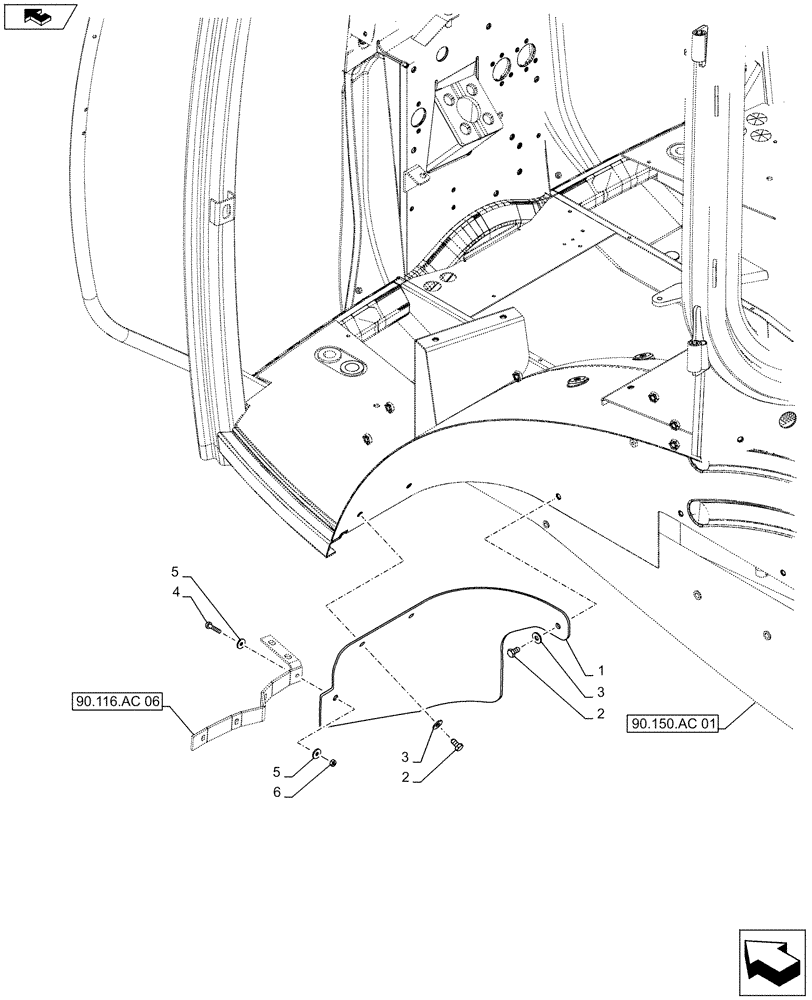

Схема запчастей Case IH MAXXUM 115 - (90.116.AC[07]) - VAR - 338122, 338201 - STANDARD REAR FENDERS WITH EXTENSIONS - MUDGUARD, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS
home
5
90.150.ac 01
3
1
2
6
5
3
90.116.ac 06
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82037004

MUDFLAP

LH

1шт.

2

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

3шт.

3

12647104

WASHER,8.15mm ID x 20mm OD x 3mm Thk

3шт.

4

84187823

SCREW,Torx, Pan HD, M6 x 25mm, Cl 4.8

1шт.

5

84188433

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

6

15896211

NUT,M6, Cl 8

1шт.

Выбрано товаров: 6
