(90.116.AC[02]) - VAR - 338205, 338206, 743708 - WIDE REAR FENDERS - EXTENSIONS

Запчасти Case IH MAXXUM 115 (90.116.AC[02]) - VAR - 338205, 338206, 743708 - WIDE REAR FENDERS - EXTENSIONS (90) - PLATFORM, CAB, BODYWORK AND DECALS

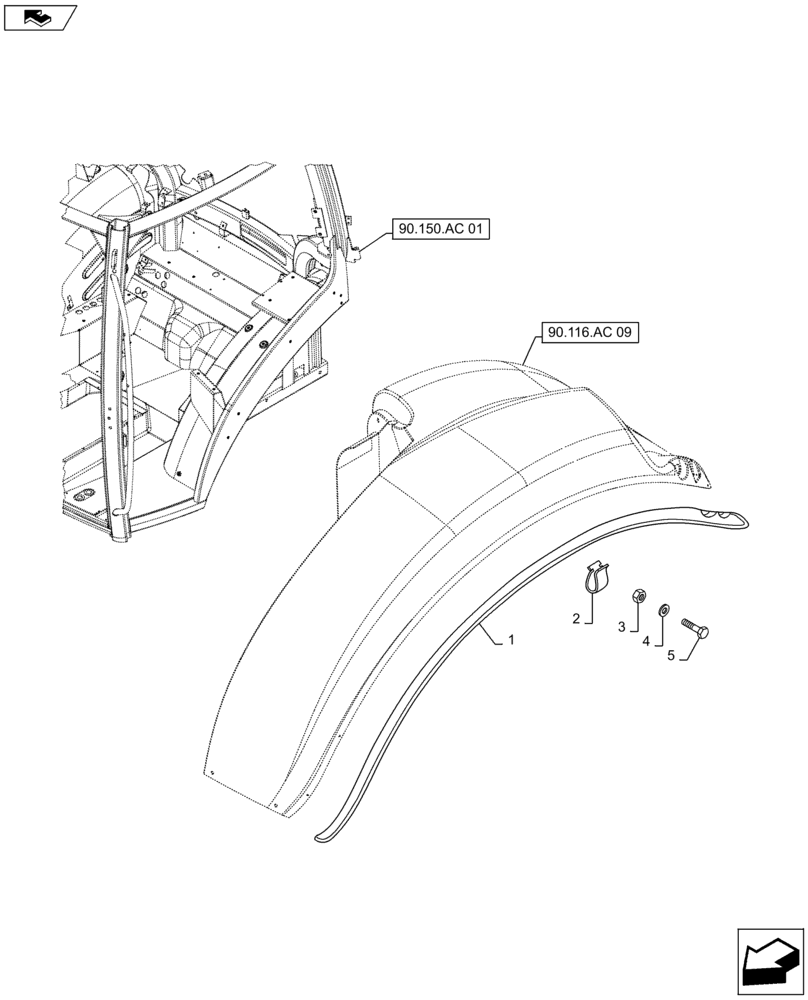

Схема запчастей Case IH MAXXUM 115 - (90.116.AC[02]) - VAR - 338205, 338206, 743708 - WIDE REAR FENDERS - EXTENSIONS (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
1
90.116.ac 09
home
3
90.150.ac 01
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84349866

FENDER EXTENSION

LH

1шт.

1

84349867

FENDER EXTENSION

RH

1шт.

2

87622826

SPRING CLIP,0.5mm Thk

14шт.

3

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

8шт.

4

12638101

WASHER,5.2mm ID x 14mm OD x 1mm Thk

16шт.

5

10977821

BOLT,M5 x 19.65mm OAL, Cl 8.8

8шт.

Выбрано товаров: 6
