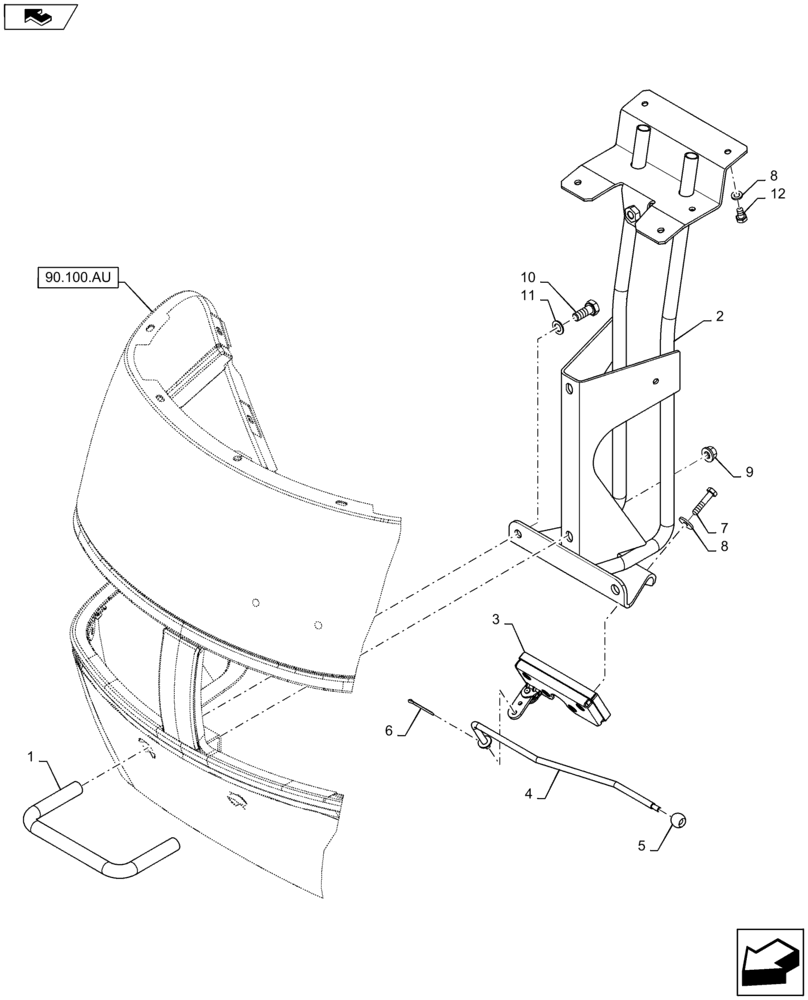

Запчасти Case IH MAXXUM 115 (90.102.AU[02]) - VAR - 331515, 331520, 743729 - HOOD - LATCH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84147851

HANDLE

1шт.

2

87669517

SUPPORT

1шт.

3

87729381

LATCH

1шт.

4

84288790

ROD

1шт.

5

84287785

BALL,5mm ID x 16mm OD

1шт.

6

10734401

COTTER PIN,M2 x 22

1шт.

7

10902821

SCREW,Hex, M6 x 30mm, Cl 8.8

4шт.

8

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

4шт.

9

14059311

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

10

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

11

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

12

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

4шт.
