Запчасти Case IH MAXXUM 115 (88.100.90[10]) - DIA KIT - INTERNAL REAR-VIEW MIRRORS (88) - ACCESSORIES

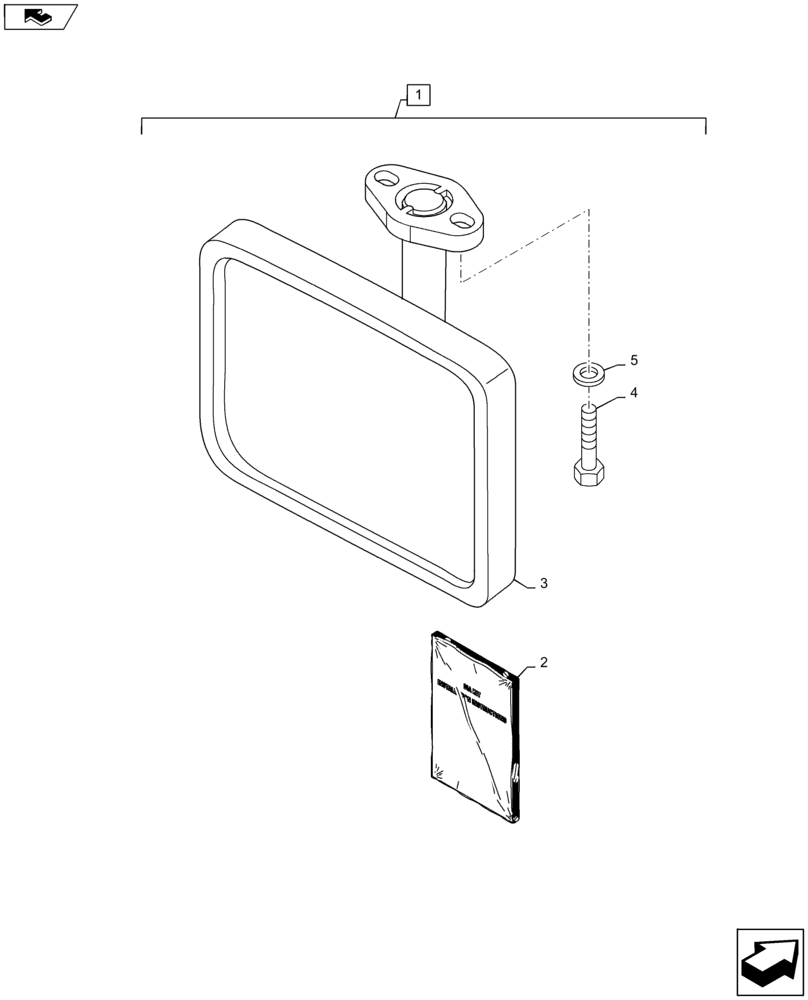

Схема запчастей Case IH MAXXUM 115 - (88.100.90[10]) - DIA KIT - INTERNAL REAR-VIEW MIRRORS (88) - ACCESSORIES
home
3
4
5
2
1

Артикул

Название

Примечание

Количество

1

719876014

DIA KIT, TRACTOR

Wide Wiew Internal Mirror, Incl 2 - 5

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

2

87750082

INSTRUCTION

1шт.

3

82023028

REAR VIEW MIRROR

1шт.

4

82880826

SCREW,Hex, M6 x 1 x 25mm, Cl 8.8

2шт.

5

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

Выбрано товаров: 6
