Запчасти Case IH MAXXUM 115 (88.100.90[05]) - DIA KIT - DYNAMIC FRONT FENDERS (540MM) - SUPPORT (88) - ACCESSORIES

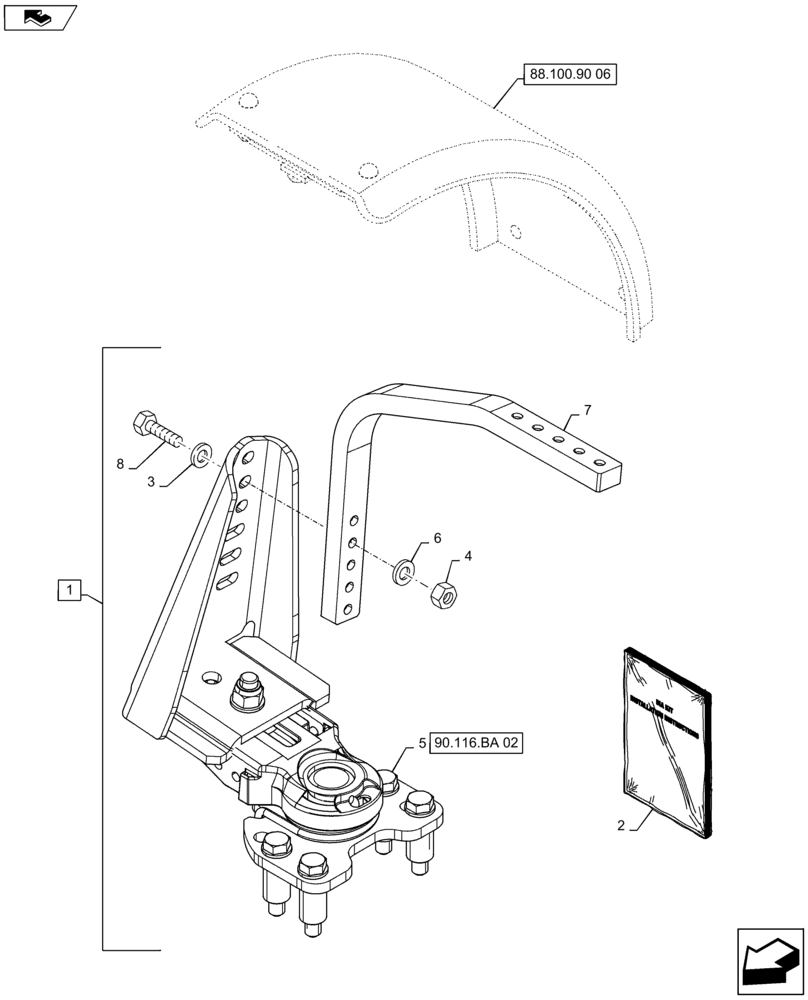

Схема запчастей Case IH MAXXUM 115 - (88.100.90[05]) - DIA KIT - DYNAMIC FRONT FENDERS (540MM) - SUPPORT (88) - ACCESSORIES
90.116.ba 02
8
2
home
4
6
3
7
1
88.100.90 06
5

Артикул

Название

Примечание

Количество

1

718775024

DIA KIT, TRACTOR

Front Fender 540mm Dynamic, Incl 2 - 8

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

Also Incl Parts on Figure 88.100.90 06

1шт.

2

84143209

INSTRUCTION

1шт.

3

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

13шт.

4

12164911

NUT,M12 x 1.75, Cl 8

4шт.

5

87748075

HUB

RH

1шт.

5

87748076

HUB

LH

1шт.

6

11198574

BELLEVILLE WASHER,Belleville, M10.5

8шт.

7

82027913

SUPPORT

2шт.

8

15540821

SCREW,Hex, M12 x 1.25 x 50mm, Cl 8.8

4шт.

Выбрано товаров: 11
