Запчасти Case IH MAXXUM 115 (88.100.55[06]) - DIA KIT - FUEL HEATER (88) - ACCESSORIES

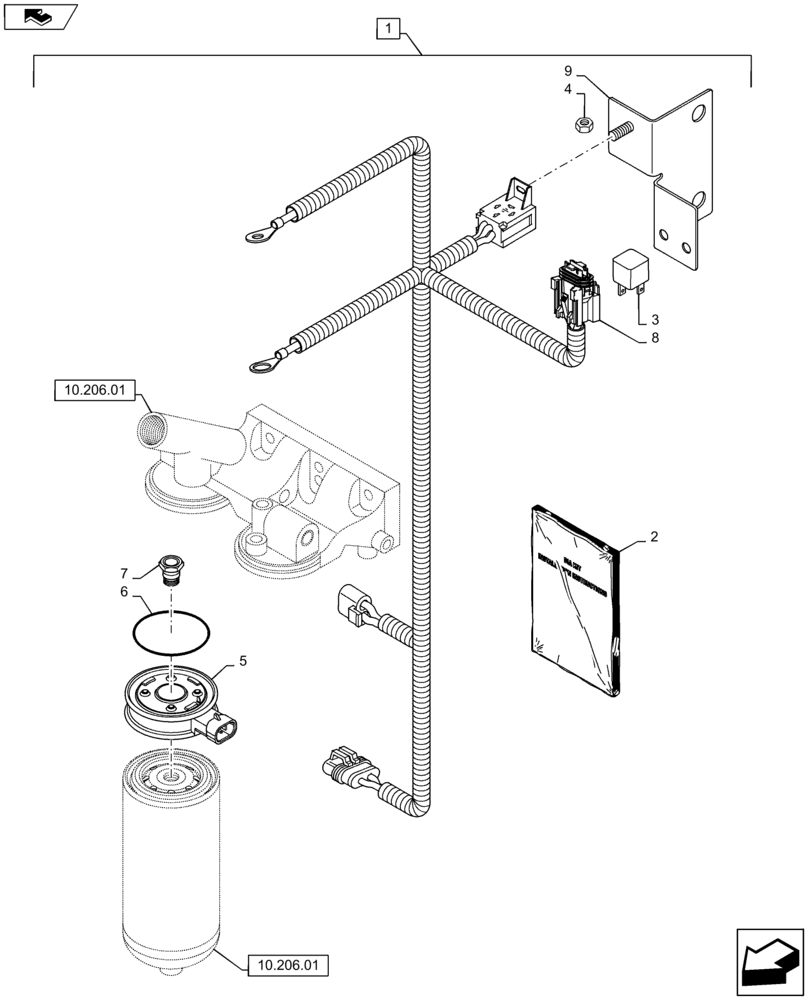

Схема запчастей Case IH MAXXUM 115 - (88.100.55[06]) - DIA KIT - FUEL HEATER (88) - ACCESSORIES
4
8
7
home
3
6
9
10.206.01
10.206.01
5
1
2

Артикул

Название

Примечание

Количество

1

718204044

DIA KIT, TRACTOR

Fuel Heater, Grid Heater to be fitted to Power Supply, 4V, Incl 2 - 9

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

2

84134158

INSTRUCTION

1шт.

3

82017871

RELAY,12V, 20A

1шт.

4

15896211

NUT,M6, Cl 8

1шт.

5

2831006

HEATING ELEMENT

1шт.

6

4898876

O-RING,63.1mm ID x 3.53mm Width

1шт.

7

2830936

ADAPTER

1шт.

8

87592019

WIRE HARNESS

1шт.

9

87594024

SUPPORT

1шт.

Выбрано товаров: 10
