Запчасти Case IH MAXXUM 115 (88.100.55[01]) - DIA KIT - FRONT HEADLIGHTS KIT FOR GRABRAILS FOR DRIVING ON THE LH SIDE (88) - ACCESSORIES

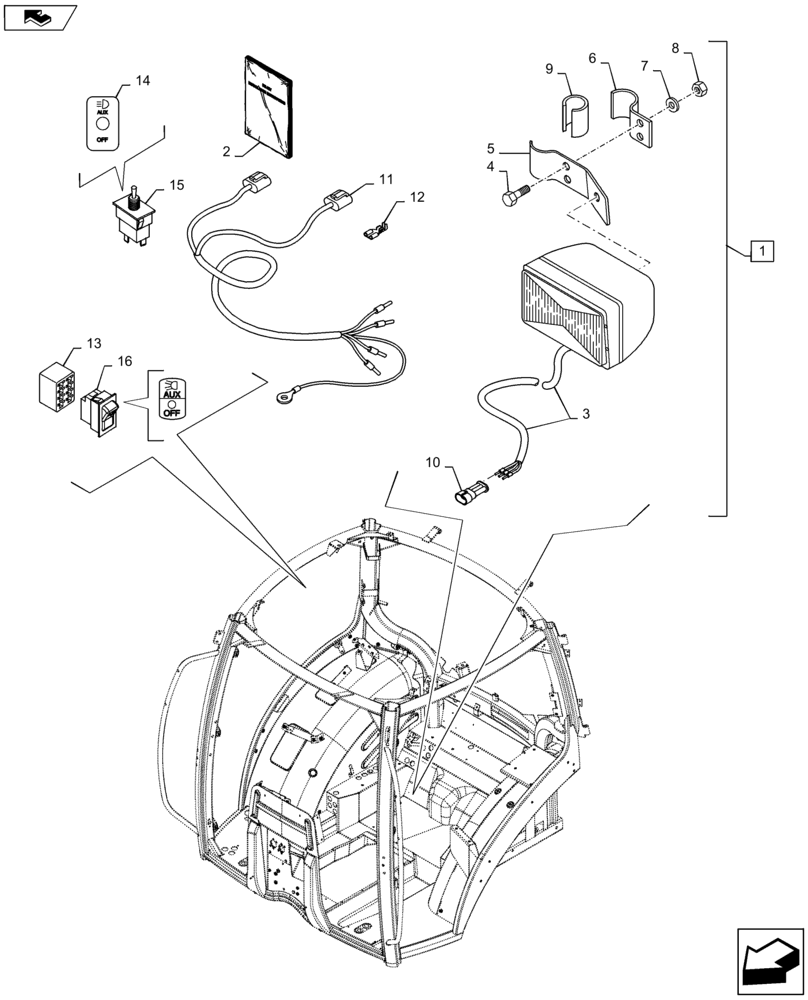

Схема запчастей Case IH MAXXUM 115 - (88.100.55[01]) - DIA KIT - FRONT HEADLIGHTS KIT FOR GRABRAILS FOR DRIVING ON THE LH SIDE (88) - ACCESSORIES
3
4
home
13
6
16
2
10
8
12
14
9
5
11
15
1
7

Артикул

Название

Примечание

Количество

1

710177034

DIA KIT, TRACTOR

Front Headlights Kit for Grabrails LH, Incl 2 - 18

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

2

84136033

INSTRUCTION

1шт.

3

82019850

LH HEADLAMP

2шт.

4

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

4шт.

5

82020406

BRACKET

LH

1шт.

5

82020407

BRACKET

RH

1шт.

6

82020408

BRACKET

2шт.

7

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

8

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

4шт.

9

82019994

PAD

2шт.

10

87680689

ELEC CONNECTOR

2шт.

11

82019667

WIRE HARNESS

1шт.

12

12062644

CABLE TERMINAL

4шт.

13

5148448

MULTIPOLE CONNECTOR,Female, 8 Pole

1шт.

14

87663415

DECAL

1шт.

15

82031979

SWITCH

1шт.

16

82029647

SWITCH ASSY

Auxiliary Lights

1шт.

17

82019845

LIGHT SWITCH

Not Illustrated

1шт.

18

82031956

ELECTRIC CABLE

Not Illustrated

1шт.
