Запчасти Case IH MAXXUM 115 (88.100.37[07]) - DIA KIT - AUTOMATIC PICK UP HITCH WITH HYDR. PUSH BACK, WITH SWINGING DRAWBAR - FRAME AND TOW BAR (88) - ACCESSORIES

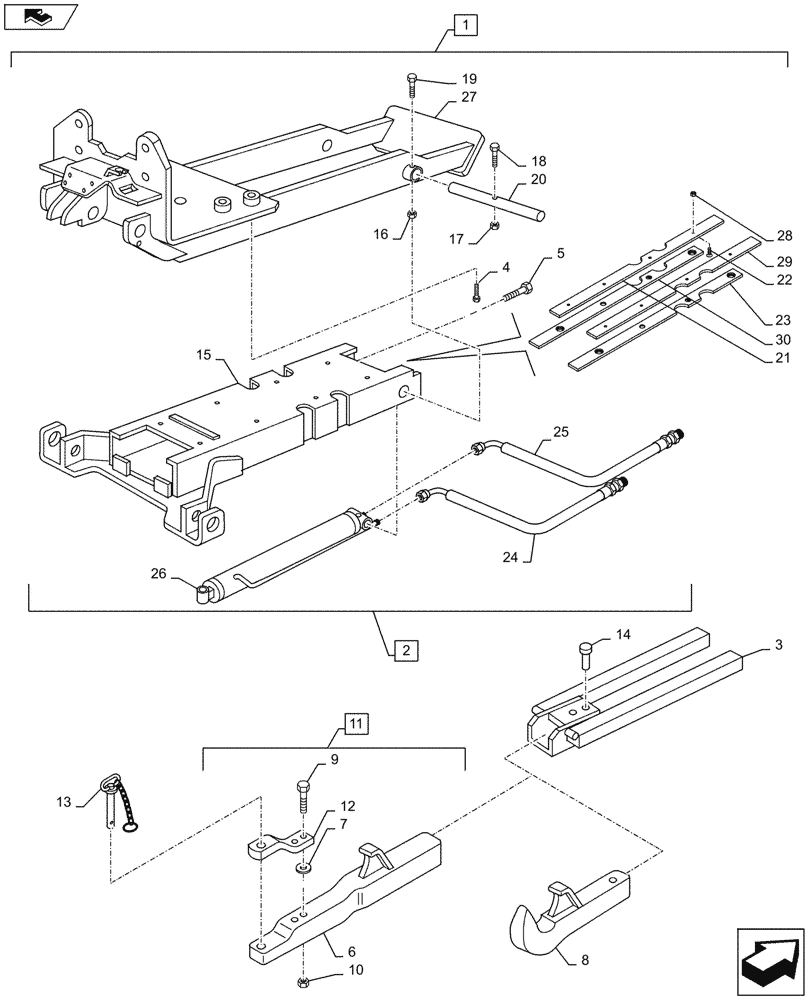

Схема запчастей Case IH MAXXUM 115 - (88.100.37[07]) - DIA KIT - AUTOMATIC PICK UP HITCH WITH HYDR. PUSH BACK, WITH SWINGING DRAWBAR - FRAME AND TOW BAR (88) - ACCESSORIES
home
20
14
19
3
17
2
11
29
23
7
12
1
27
15
10
16
22
18
26
28
8
9
30
6
5
21
24
25
13
4

Артикул

Название

Примечание

Количество

1

710086024

DIA KIT, TRACTOR

Hydraulic Push Back Hitch for EDC with 80mm External Rams, Incl 2 - 28 and Parts on Figure 88.100.37 06 and 08

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

2

87482831

FIXED HITCH

Incl 15 - 30

1шт.

3

87476076

DRAWBAR FRAME

1шт.

4

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

4

87306653

FLANGE BOLT,Hex, M16 x 1.5 x 140mm, Gr 12.9

4шт.

5

15219521

BOLT,Hex, M16 x 25mm, Cl 8.8, Full Thd

2шт.

6

87731775

DRAWBAR,672mm L x 70mm W x 60mm Thk, 15mm Offset

1шт.

7

82014658

LOCK WASHER,19.5mm ID x 29mm OD x 3.4mm Thk

6шт.

8

87731770

DRAW HOOK

1шт.

9

15985434

BOLT,M18 x 1.5 x 110mm

2шт.

10

10721034

NUT,M18 x 1.5

2шт.

11

87731771

DRAWBAR

Incl 6, 7, 9, 10, 12

1шт.

12

82036534

BAR,251mm L x 60mm W x 30mm Thk, 50.8mm Offset

1шт.

13

82025933

PIN,32mm OD x 180mm L

1шт.

14

82036199

PIN,30mm OD x 87mm L

2шт.

15

87482830

HITCH BRACKET

1шт.

16

16104131

NUT,Hex, M8, 1.25mm Pitch

2шт.

17

12577221

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 10, ZND

1шт.

18

11107431

SCREW,Hex, M10 x 1.5 x 60mm, Cl 10.9

1шт.

19

16040731

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9, Full Thd

2шт.

20

82036622

PIN,25mm OD x 287mm L

1шт.

21

82036613

SLIDE GUIDE

RH Top

1шт.

22

10356321

SCREW,Sl Csk, M8 x 20mm, Cl 8.8

16шт.

23

82036278

SLIDE GUIDE

LH Down

2шт.

24

82036629

HYDRAULIC HOSE,9.50mm ID x 2000.00mm, SAE 100R16

1шт.

25

82036628

HYDRAULIC HOSE,9.50mm ID x 2000.00mm, SAE 100R16

1шт.

26

82036196

HYDRAULIC CYLINDER,Double Acting, 40mm Rod, 390mm Stroke

1шт.

27

87482832

HITCH BRACKET

1шт.

28

82038798

NUT,Hex, M8, 1.25mm Pitch, 8.00mm High, G8, ZND

16шт.

29

82036612

SLIDE GUIDE

LH Top

1шт.

30

82036279

SLIDE GUIDE,670mm L x 40mm W x 8mm Thk

RH Down

2шт.
