Запчасти Case IH MAXXUM 115 (88.100.37[05]) - DIA KIT - SWIVEL COUPLING 38MM (88) - ACCESSORIES

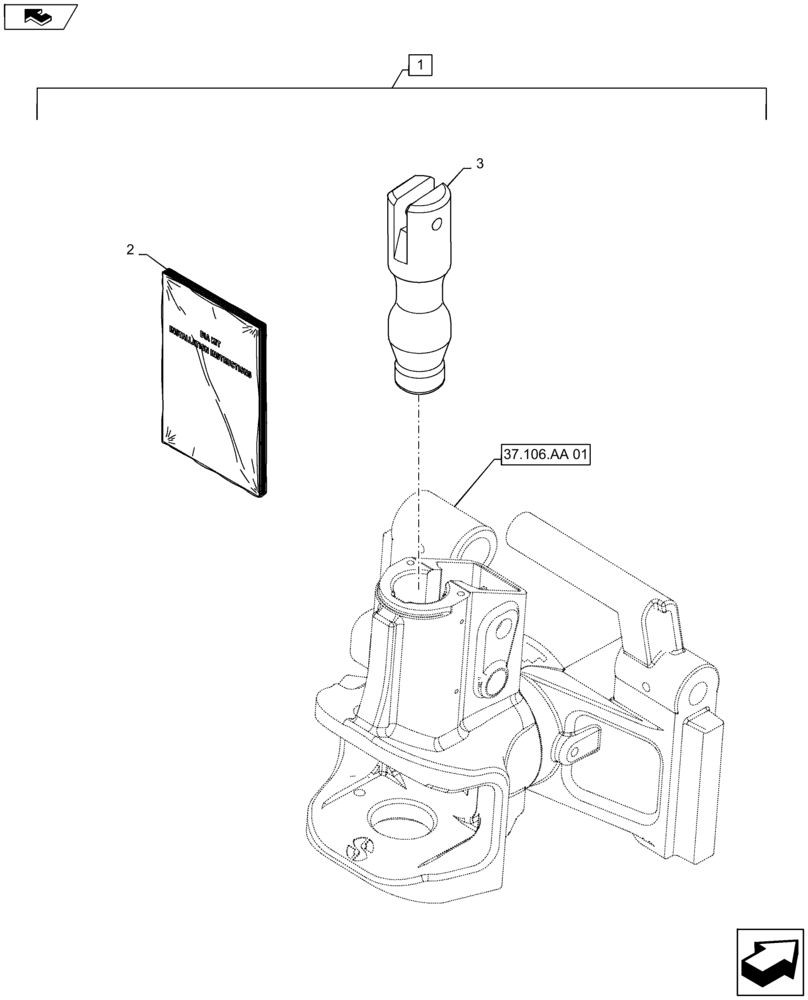

Схема запчастей Case IH MAXXUM 115 - (88.100.37[05]) - DIA KIT - SWIVEL COUPLING 38MM (88) - ACCESSORIES
1
3
2
37.106.aa 01
home

Артикул

Название

Примечание

Количество

1

719139014

DIA KIT, TRACTOR

German Tow Hook Auto Coupling 38mm, Incl 2, 3

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

2

84142694

INSTRUCTION

1шт.

3

82031288

PIN,37mm OD x 135mm L

1шт.

Выбрано товаров: 4
