Запчасти Case IH MAXXUM 115 (88.100.21[02]) - DIA KIT - TRANS, CREEPER FOR TRANSMISSION 16X16 - GEARSHIFT MECHANISM (88) - ACCESSORIES

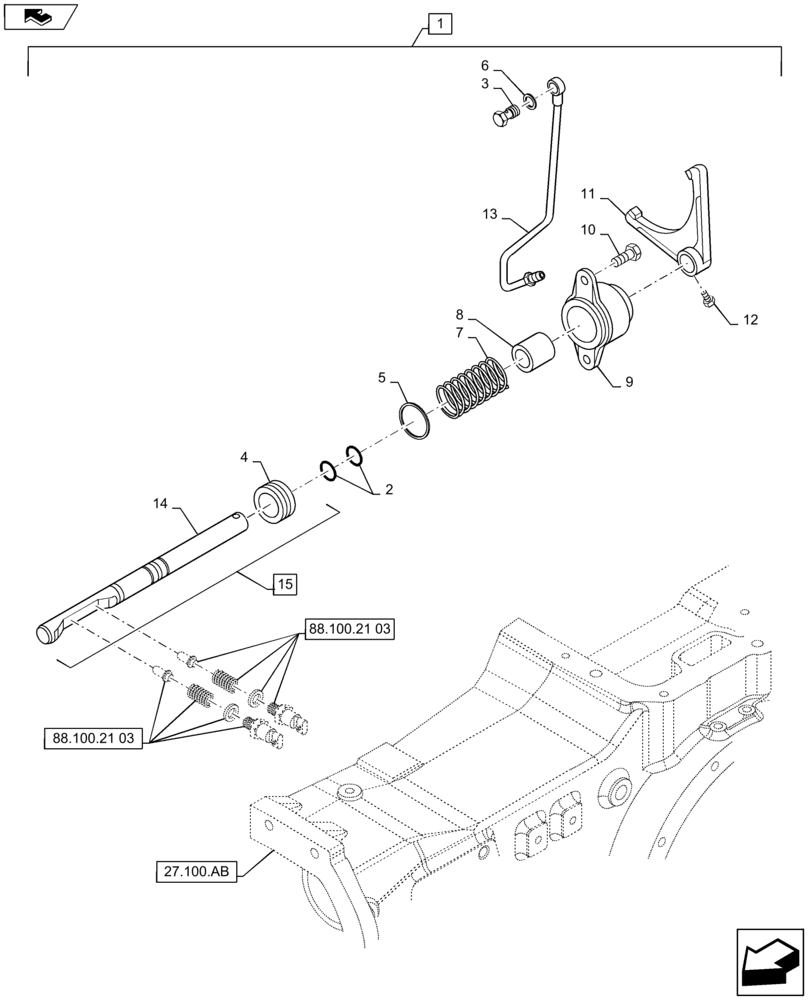

Схема запчастей Case IH MAXXUM 115 - (88.100.21[02]) - DIA KIT - TRANS, CREEPER FOR TRANSMISSION 16X16 - GEARSHIFT MECHANISM (88) - ACCESSORIES
9
1
88.100.21 03
5
14
7
2
6
home
27.100.ab
12
88.100.21 03
10
4
13
15
8
3
11

Артикул

Название

Примечание

Количество

1

718100014

DIA KIT, TRACTOR

Creeper Speed for 16x16 SPS, Incl 2 - 15

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

Also Incl Parts on Figures 88.100.21 01 and 88.100.21 03 Thru 88.100.21 05

1шт.

2

5174041

O-RING,2.62mm Thk x 13.1mm ID, 70 Duro

2шт.

3

10184311

BANJO BOLT,M14 x 1.5 x 27mm

1шт.

4

47137320

PISTON

1шт.

5

5160827

SEAL,22.55mm ID x 30.1mm OD x 3.2mm Thk

1шт.

6

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

1шт.

7

47133462

SPRING

1шт.

8

5194523

SPACER

1шт.

9

5194527

COVER

1шт.

10

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

11

5194528

SHIFTER FORK

1шт.

12

44013453

SCREW,Hex, M12 x 1.25 x 33mm

1шт.

13

47126718

HYD TUBE

1шт.

14

47137319

ROD

1шт.

15

47137318

CONTROL

Incl 4, 14

1шт.

Выбрано товаров: 17
