Запчасти Case IH MAXXUM 115 (88.100.21[01]) - DIA KIT - CREEPER FOR TRANSMISSION 16X16 - GEARS AND SUPPORT (88) - ACCESSORIES

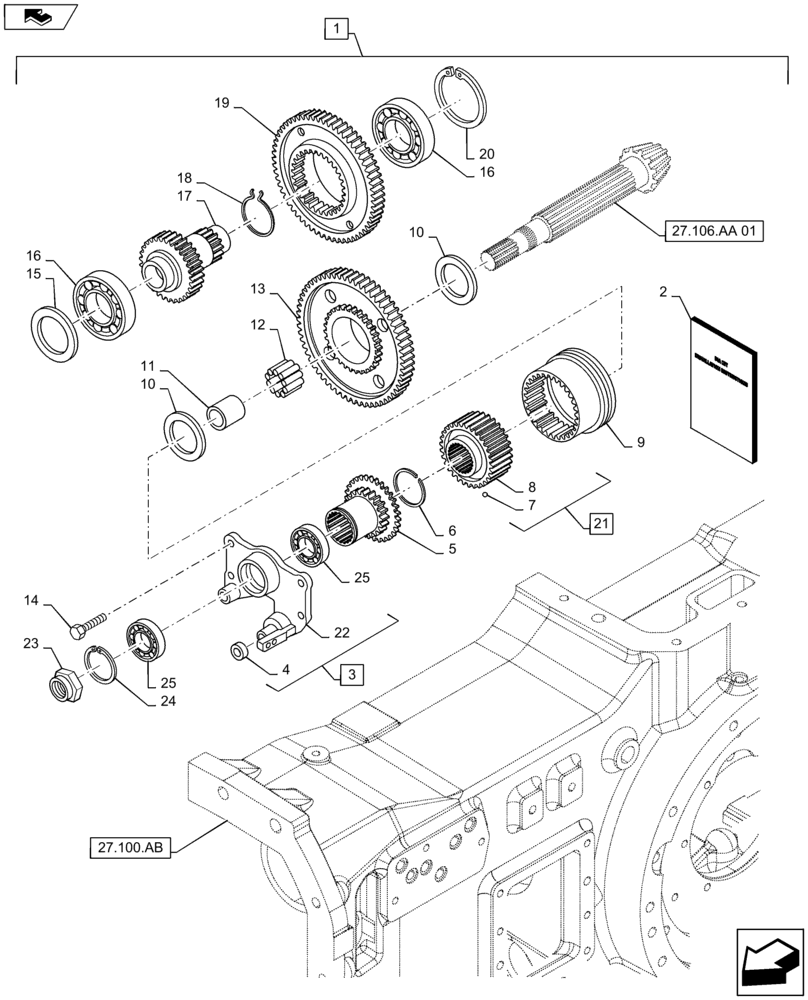

Схема запчастей Case IH MAXXUM 115 - (88.100.21[01]) - DIA KIT - CREEPER FOR TRANSMISSION 16X16 - GEARS AND SUPPORT (88) - ACCESSORIES
1
15
23
10
13
4
20
5
11
10
8
3
14
2
18
25
16
17
7
12
16
6
home
22
27.106.aa 01
21
24
9
27.100.ab
25
19

Артикул

Название

Примечание

Количество

1

718100014

DIA KIT, TRACTOR

Creeper Speed for 16x16 SPS, Incl 2 - 25

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

Also Incl Parts on Figures 88.100.21 02 Thru 88.100.21 05

1шт.

2

84252847

INSTRUCTION

1шт.

3

47126844

COVER

Incl 4, 22

1шт.

4

47126786

BUSHING,12.5mm ID x 15mm OD x 7.8mm L

2шт.

5

5198173

GEAR

1шт.

6

13398876

SNAP RING,M38, Int

1шт.

7

20063460

BALL,7.14mm OD, Gr 100

2шт.

8

5198398

GEAR

1шт.

9

47125132

SLEEVE,29T

1шт.

10

5194534

THRUST WASHER

2шт.

11

5194536

RING RACE

1шт.

12

5194535

NEEDLE BEARING CAGE,55mm ID x 60mm OD x 27mm L

1шт.

13

5194541

GEAR

1шт.

14

15540521

SCREW,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

15

5198403

SPACER

1шт.

16

ST202

BEARING, BALL,45mm ID x 85mm OD x 19mm W

2шт.

17

5198395

SHAFT

1шт.

18

5192305

SNAP RING,M80.6, Ext

1шт.

19

5198393

GEAR

1шт.

20

11062176

CIRCLIP,M85, Int

1шт.

21

5198461

SLEEVE

Incl 7, 8

1шт.

22

NSS

NOT SOLD SEPARAT

Cover, Incl in 3

1шт.

23

5147930

RING NUT,M45 x 1.5

1шт.

24

11069576

SNAP RING,M55, Ext

1шт.

25

28042510

BALL BEARING,55mm x 90mm x 18mm

2шт.

Выбрано товаров: 27
