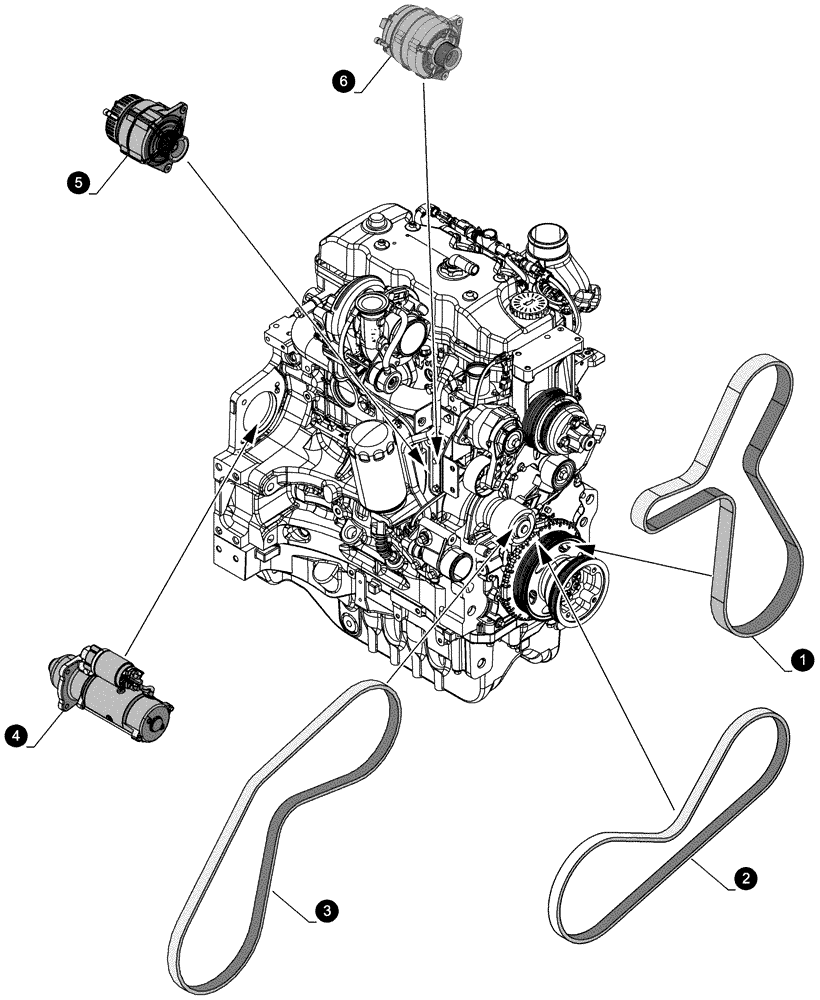

Запчасти Case IH MAXXUM 115 (05.100.04[02]) - MAINTENANCE PARTS - STARTER MOTOR, ALTERNATOR, BELTS (05) - SERVICE & MAINTENANCE

1

J911572

V-BELT,27.92mm W x 1549.4mm L, 8 Ribs

Main Drive

1шт.

Valid with MAXXUM 110-EP EFFICIENT POWER MULTICONTROLLER TRACTOR - TIER 4, MAXXUM 115-EP EFFICIENT POWER MULTICONTROLLER TRACTOR - TIER 4, MAXXUM 120-EP EFFICIENT POWER MULTICONTROLLER TRACTOR - TIER 4, MAXXUM 125-EP EFFICIENT POWER MULTICONTROLLER TRACTOR - TIER 4, MAXXUM 130-EP EFFICIENT POWER MULTICONTROLLER TRACTOR - TIER 4, MAXXUM 140-EP EFFICIENT POWER MULTICONTROLLER TRACTOR - TIER 4 Models

1шт.

2

87710661

V-BELT,3.56 mm W x 990.00 mm L, 4 Ribs

A/C Compressor

1шт.

Valid with MAXXUM 110-EP EFFICIENT POWER MULTICONTROLLER TRACTOR - TIER 4, MAXXUM 115-EP EFFICIENT POWER MULTICONTROLLER TRACTOR - TIER 4, MAXXUM 120-EP EFFICIENT POWER MULTICONTROLLER TRACTOR - TIER 4, MAXXUM 125-EP EFFICIENT POWER MULTICONTROLLER TRACTOR - TIER 4, MAXXUM 130-EP EFFICIENT POWER MULTICONTROLLER TRACTOR - TIER 4, MAXXUM 140-EP EFFICIENT POWER MULTICONTROLLER TRACTOR - TIER 4 Models

1шт.

Valid with STD

1шт.

2

84344776

V-BELT,14mm W x 940mm L, 4 Ribs

A/C Compressor

1шт.

Valid with MAXXUM 110-EP EFFICIENT POWER MULTICONTROLLER TRACTOR - TIER 4, MAXXUM 115-EP EFFICIENT POWER MULTICONTROLLER TRACTOR - TIER 4, MAXXUM 120-EP EFFICIENT POWER MULTICONTROLLER TRACTOR - TIER 4, MAXXUM 125-EP EFFICIENT POWER MULTICONTROLLER TRACTOR - TIER 4, MAXXUM 130-EP EFFICIENT POWER MULTICONTROLLER TRACTOR - TIER 4, MAXXUM 140-EP EFFICIENT POWER MULTICONTROLLER TRACTOR - TIER 4 Models

1шт.

Valid with VAR. 330643

1шт.

3

87382455

BELT,14.24 mm W, 1090mm L, 4 Ribs

Air Brakes

1шт.

Valid with MAXXUM 110-EP EFFICIENT POWER MULTICONTROLLER TRACTOR - TIER 4, MAXXUM 115-EP EFFICIENT POWER MULTICONTROLLER TRACTOR - TIER 4, MAXXUM 120-EP EFFICIENT POWER MULTICONTROLLER TRACTOR - TIER 4, MAXXUM 125-EP EFFICIENT POWER MULTICONTROLLER TRACTOR - TIER 4, MAXXUM 130-EP EFFICIENT POWER MULTICONTROLLER TRACTOR - TIER 4, MAXXUM 140-EP EFFICIENT POWER MULTICONTROLLER TRACTOR - TIER 4 Models

1шт.

4

84151331

STARTER MOTOR,12V, 4.2kW

On Engine

1шт.

Valid with MAXXUM 110-EP EFFICIENT POWER MULTICONTROLLER TRACTOR - TIER 4, MAXXUM 115-EP EFFICIENT POWER MULTICONTROLLER TRACTOR - TIER 4, MAXXUM 120-EP EFFICIENT POWER MULTICONTROLLER TRACTOR - TIER 4, MAXXUM 125-EP EFFICIENT POWER MULTICONTROLLER TRACTOR - TIER 4, MAXXUM 130-EP EFFICIENT POWER MULTICONTROLLER TRACTOR - TIER 4, MAXXUM 140-EP EFFICIENT POWER MULTICONTROLLER TRACTOR - TIER 4 Models

1шт.

5

84141452

ALTERNATOR,12V, 120A, W/ Pulley

On Engine

1шт.

Valid with MAXXUM 110-EP EFFICIENT POWER MULTICONTROLLER TRACTOR - TIER 4, MAXXUM 115-EP EFFICIENT POWER MULTICONTROLLER TRACTOR - TIER 4, MAXXUM 120-EP EFFICIENT POWER MULTICONTROLLER TRACTOR - TIER 4, MAXXUM 125-EP EFFICIENT POWER MULTICONTROLLER TRACTOR - TIER 4, MAXXUM 130-EP EFFICIENT POWER MULTICONTROLLER TRACTOR - TIER 4, MAXXUM 140-EP EFFICIENT POWER MULTICONTROLLER TRACTOR - TIER 4 Models

1шт.

6

84141453

ALTERNATOR,14V, 150A, W/ Pulley

On Engine

1шт.

Valid with MAXXUM 110-EP EFFICIENT POWER MULTICONTROLLER TRACTOR - TIER 4, MAXXUM 115-EP EFFICIENT POWER MULTICONTROLLER TRACTOR - TIER 4, MAXXUM 120-EP EFFICIENT POWER MULTICONTROLLER TRACTOR - TIER 4, MAXXUM 125-EP EFFICIENT POWER MULTICONTROLLER TRACTOR - TIER 4, MAXXUM 130-EP EFFICIENT POWER MULTICONTROLLER TRACTOR - TIER 4, MAXXUM 140-EP EFFICIENT POWER MULTICONTROLLER TRACTOR - TIER 4 Models

1шт.

6

84141453R

ALTERNATOR,14V, 150A

On Engine

1шт.

6

84141453C

CORE-GENERATOR

Return Number

1шт.
