Запчасти Case IH MAXXUM 115 (55.512.CS[02]) - ARMREST CONTROL UNIT - COVERS AND CONTROLS (55) - ELECTRICAL SYSTEMS

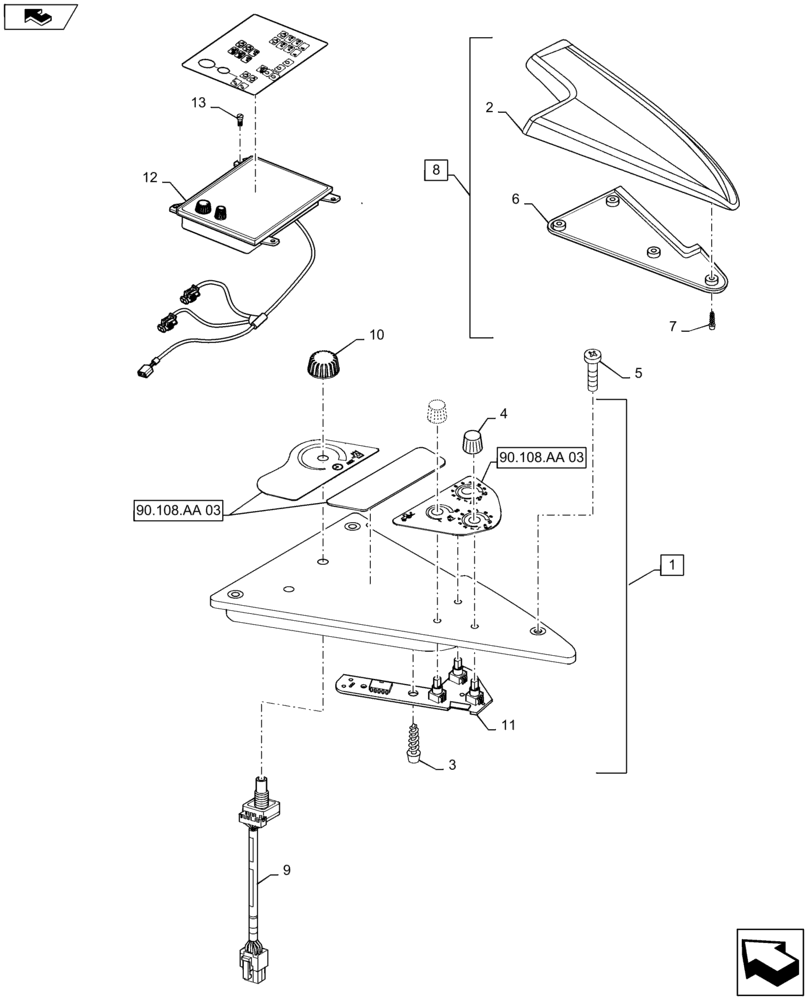

Схема запчастей Case IH MAXXUM 115 - (55.512.CS[02]) - ARMREST CONTROL UNIT - COVERS AND CONTROLS (55) - ELECTRICAL SYSTEMS
1
4
12
7
home
10
11
13
9
90.108.aa 03
6
3
8
5
2
90.108.aa 03

Артикул

Название

Примечание

Количество

1

84168655

ELECTRIC PANEL

EDC Rear, L/Slip, w/EHR

1шт.

Incl 3, 4, 11, and Decals p.n.84217911, 84217912 Shown in Figure 90.108.AA 03

1шт.

2

NSS

NOT SOLD SEPARAT

Cushion, Incl in 8

1шт.

3

82018700

SCREW,Phillips Drive, Round HD, M2.5 x 10mm

3шт.

4

82012988

KNOB

4шт.

5

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

4шт.

6

87486097

PANEL

1шт.

7

13272017

SCREW,Pozidriv Pan Hd, M4 x 12mm

4шт.

8

87495096

CUSHION

Incl 2, 6, 7

1шт.

9

87755846

POTENTIOMETER,5V, 30mA, 150mW

Armrest Control Unit

1шт.

10

87454709

KNOB

1шт.

11

84206632

PRINTED CIRCUIT BOAR

Armrest Control Unit

1шт.

12

84241064

ECU

Armrest Control

1шт.

13

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

4шт.

Выбрано товаров: 14
