(55.512.CL[03]) - VAR - 337782, 743687 - ELECTRONIC JOYSTICK WITH 3 BUTTONS FOR AUXILIARY SELECTION JOYSTICK

Запчасти Case IH MAXXUM 115 (55.512.CL[03]) - VAR - 337782, 743687 - ELECTRONIC JOYSTICK WITH 3 BUTTONS FOR AUXILIARY SELECTION JOYSTICK (55) - ELECTRICAL SYSTEMS

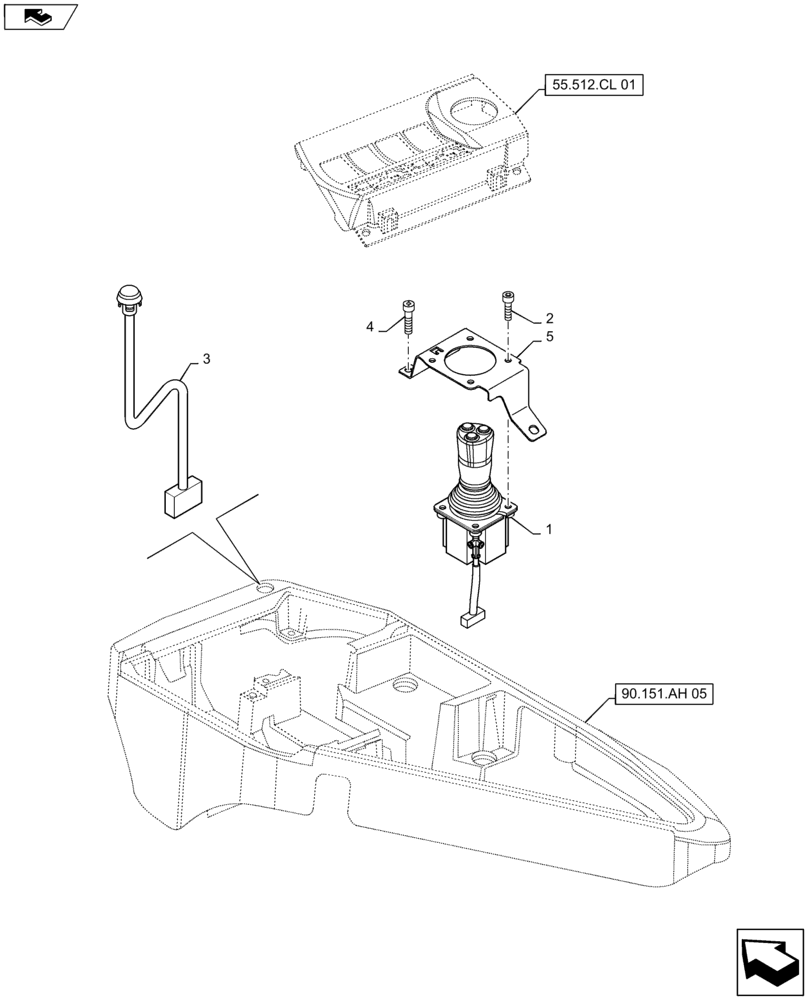

Схема запчастей Case IH MAXXUM 115 - (55.512.CL[03]) - VAR - 337782, 743687 - ELECTRONIC JOYSTICK WITH 3 BUTTONS FOR AUXILIARY SELECTION JOYSTICK (55) - ELECTRICAL SYSTEMS
4
90.151.ah 05
2
5
55.512.cl 01
3
1
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84208739

JOYSTICK

Auxiliary Selection

1шт.

2

86639293

HEX SOC SCREW,M4 x 12mm, Cl 8.8

4шт.

3

87485775

SWITCH ASSY

1шт.

4

15687901

SELF-TAP SCREW,Cross Pan Hd, M4.2 x 9.50mm

2шт.

5

84202338

BRACKET

1шт.
