(55.512.CL[01]) - ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES - ELECTRONIC CONTROLS

Запчасти Case IH MAXXUM 115 (55.512.CL[01]) - ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES - ELECTRONIC CONTROLS (55) - ELECTRICAL SYSTEMS

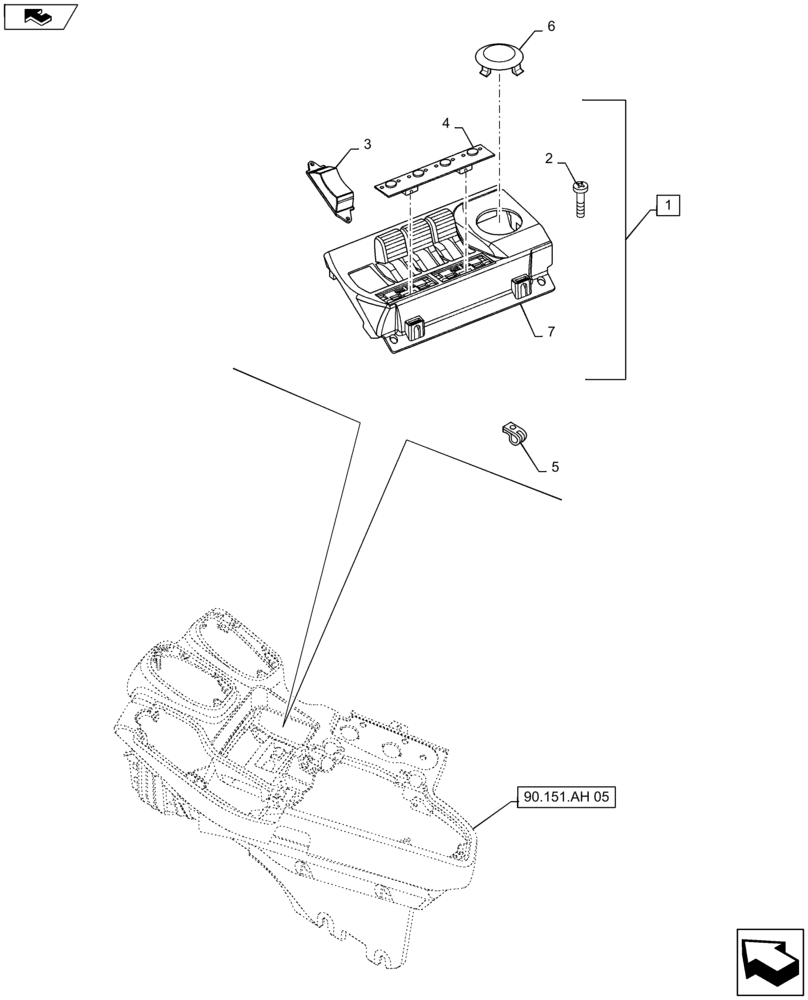

Схема запчастей Case IH MAXXUM 115 - (55.512.CL[01]) - ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES - ELECTRONIC CONTROLS (55) - ELECTRICAL SYSTEMS
2
6
90.151.ah 05
1
home
5
7
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84202317

TOGGLE SWITCH

Incl 2 - 4, 7

1шт.

2

50631

SCREW,Self Tapping, M6 x 0.5" OAL

8шт.

3

84226110

PLUG,32.5mm W x 92mm L

1шт.

4

87613728

PANEL

1шт.

5

14369071

SPRING NUT,4.8mm x 14.6mm x 4mm

5шт.

6

87725444

BLANK-OFF PLUG,57.5mm OD, Black

Less Joystick

1шт.

7

NSS

NOT SOLD SEPARAT

Panel, Incl in 1

1шт.

Выбрано товаров: 7
