Запчасти Case IH MAXXUM 115 (55.512.CC[01]) - VAR - 331515, 331520, 743729, 333776, 743714, 338776, 743712, 338777, 743711, 338777, 743711 + STD - RADIO FOR HIGH ROOF (55) - ELECTRICAL SYSTEMS

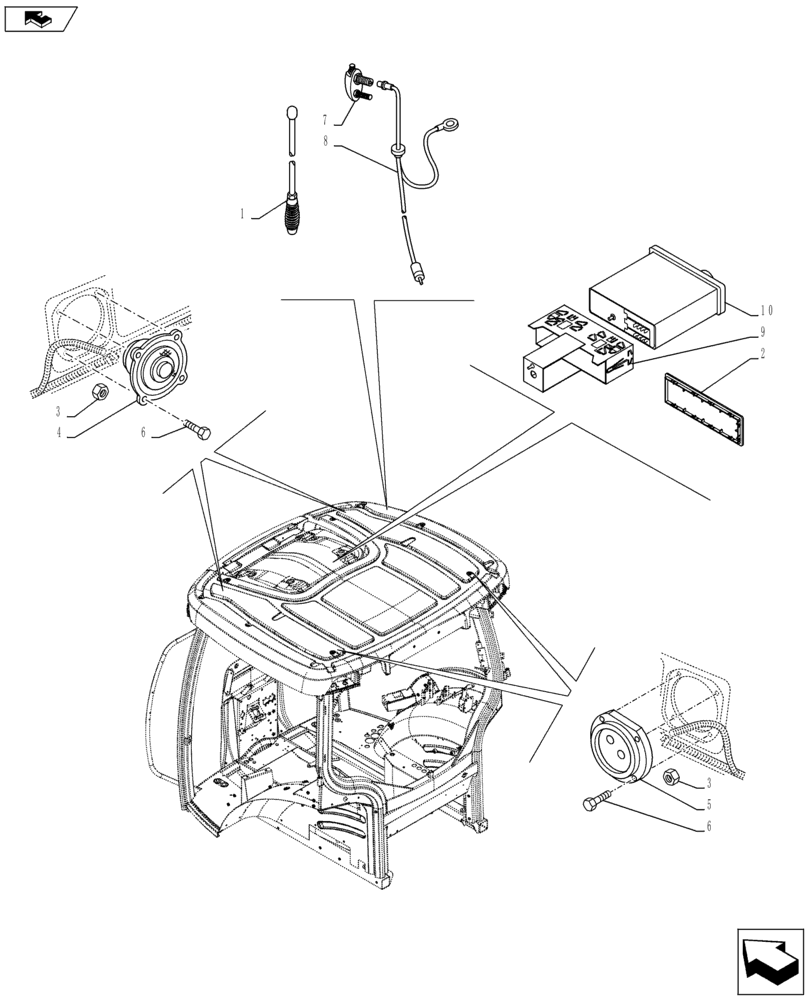

Схема запчастей Case IH MAXXUM 115 - (55.512.CC[01]) - VAR - 331515, 331520, 743729, 333776, 743714, 338776, 743712, 338777, 743711, 338777, 743711 + STD - RADIO FOR HIGH ROOF (55) - ELECTRICAL SYSTEMS
7
5
10
2
3
6
1
3
9
home
8
6
4

Артикул

Название

Примечание

Количество

1

84143970

ANTENNA

Radio, W/ Std Equipment or VAR 338776, 743712, 338777, 743711, 333776, 743714

1шт.

2

82037617

PLATE

w/ Std Equipment or VAR 338776, 743712, 338777, 743711, 333776, 743714

1шт.

3

83935425

SPRING NUT,Prev Torque, #8

16шт.

4

87704700

SPEAKER

Radio, Std Equipment

2шт.

4

87362899

SPEAKER

Radio, VAR 338776, 743712, 338777, 743711, 333776, 743714

2шт.

5

87594895

COVER

VAR 338776, 743712, 338777, 743711, 333776, 743714

2шт.

6

15644401

SELF-TAP SCREW,Pan Hd, M8 x 25mm

VAR 338776, 743712, 338777, 743711, 333776, 743714

16шт.

7

84143971

SUPPORT

Only with Standard Equipment or VAR 331515, 331520, 743729

1шт.

8

82026196

CABLE

Radio, Only with Standard Equipment or VAR 331515, 331520, 743729

1шт.

9

84146470

CASE

VAR 338776, 743712, 338777, 743711, 333776, 743714, Serial Range: -C7169

1шт.

9

84485553

MOUNTING PLATE

VAR 338776, 743712, 338777, 743711, 333776, 743714, Start Serial: D7169

1шт.

10

87711452

RADIO

Only with Deluxe Radio ISO, VAR 338777, 743711, Serial Range: -C7169

1шт.

10

87752823

RADIO

Only with Deluxe Radio with Bluetooth ISO, VAR 338776, 743712, Serial Range: -C7169

1шт.

10

87752824

RADIO

Only with Deluxe Radio with Bluetooth NAR, VAR 333776, 743714, Serial Range: -C7169

1шт.

10

84399209

RADIO,AM/FM/WB/AUX

Only with Deluxe Radio with Bluetooth ISO, VAR 338776, 743712, Start Serial: D7169

1шт.

10

84399213

RADIO,AM/FM/WB/AUX/BT

Only with Deluxe Radio with Bluetooth, VAR 333776, 743714, 338776, 743712, Start Serial: D7169

1шт.

Выбрано товаров: 16
