(55.512.AH) - VAR - 330827, 331827, 743710 + STD - TELESCOPIC, HEATED AND WITH REMOTE ADJUSTMENT REAR VIEW MIRRORS SWITCH

Запчасти Case IH MAXXUM 115 (55.512.AH) - VAR - 330827, 331827, 743710 + STD - TELESCOPIC, HEATED AND WITH REMOTE ADJUSTMENT REAR VIEW MIRRORS SWITCH (55) - ELECTRICAL SYSTEMS

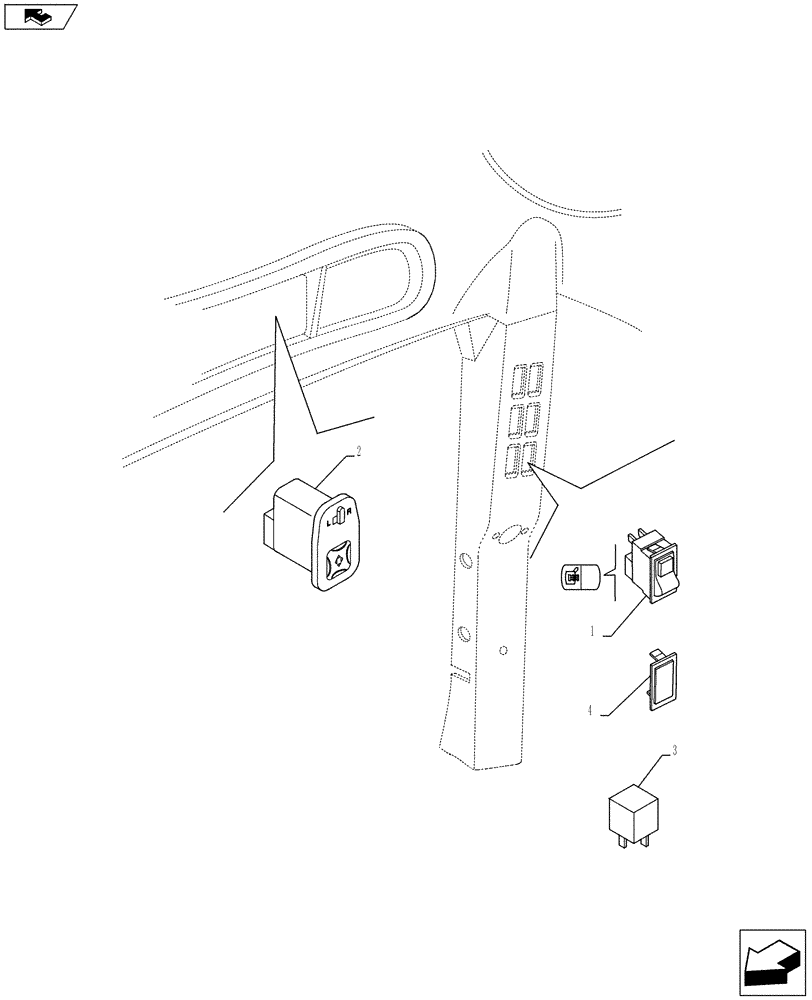

Схема запчастей Case IH MAXXUM 115 - (55.512.AH) - VAR - 330827, 331827, 743710 + STD - TELESCOPIC, HEATED AND WITH REMOTE ADJUSTMENT REAR VIEW MIRRORS SWITCH (55) - ELECTRICAL SYSTEMS
3
2
1
4
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87573650

SWITCH ASSY

Heated Mirrors, VAR 330827, 331827, 743710

1шт.

2

82037339

SWITCH ASSY

Electric Mirrors, VAR 330827, 331827, 743710

1шт.

3

82038934

RELAY

Rear View Mirror, VAR 330827, 331827, 743710

1шт.

4

82022763

PLUG

Without Remote Adjustment, Standard Equipment

1шт.

Выбрано товаров: 4
