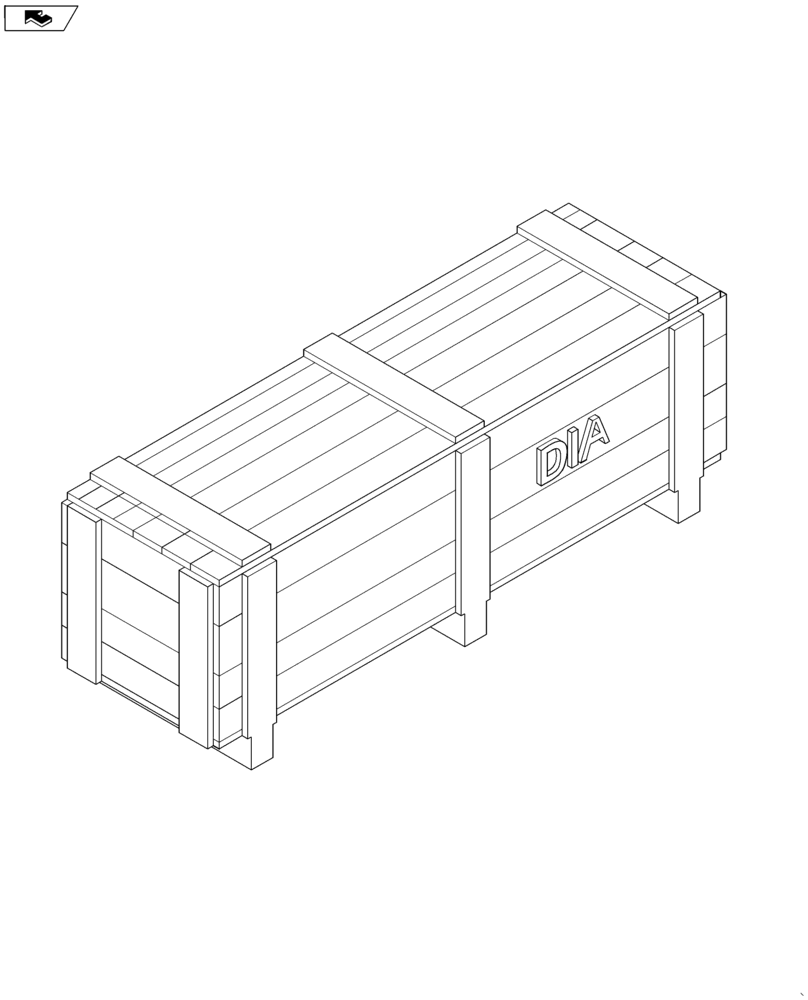

Запчасти Case IH MAXXUM 115 (00.500.01 ) - DIA KITS (00) - GENERAL & PICTORIAL INDEX

710023024

DIA KIT, TRACTOR

Standard Steer Carrier Less Weights and Less tow Hook

1шт.

710026024

DIA KIT, TRACTOR

Additional Closed Center Mechanical Remote, 2C to 4 (2NC + 2C) for EDC

1шт.

710036044

SEAT

Instruction Seat W/Belt

1шт.

710086024

DIA KIT, TRACTOR

Hydraulic Push Back Hitch for EDC with 80MM External Rams

1шт.

710155024

DIA KIT, TRACTOR

Spark Arrestor Muffler

1шт.

Valid for Maxxum 110, 120, 130 Models Only

1шт.

710177034

DIA KIT, TRACTOR

Front Headlights Kit for Grabrails LH

1шт.

710178101

DIA KIT, TRACTOR

Pneumatic Trailer Brake (UK)

1шт.

Valid for Maxxum 115, 125, 140 Models Only

1шт.

710178105

DIA KIT, TRACTOR

Pneumatic Trailer Brake (UK)

1шт.

Valid for Maxxum 110, 120, 130 Models Only

1шт.

710206124

DIA KIT, TRACTOR

110V Engine Block and Transmission Heater (NA Market)

1шт.

Valid for Maxxum 110, 120, 130 Models Only

1шт.

710206134

DIA KIT, TRACTOR

110V Engine Block and Transmission Heater (NA Market)

1шт.

Valid for Maxxum 115, 125, 140 Models Only

1шт.

710245084

DIA KIT, TRACTOR

Engine Side Rails

1шт.

Valid for Maxxum 115, 125, 140 Models Only

1шт.

710245134

DIA KIT, TRACTOR

Engine Side Rails

1шт.

Valid for Maxxum 110, 120, 130 Models Only

1шт.

710362010

PERMANENT DETENT KIT

Permanent Detent Kit for Single RCV Spool (Closed Centre Valves)

1шт.

710534014

DIA KIT, TRACTOR

Steering Guides for K80 Ball Hitch

1шт.

710535014

DIA KIT, TRACTOR

K80 Ball Drawbar for Hydraulic APUH

1шт.

710577014

DIA KIT, TRACTOR

Carbon filters & pressure gauge (high roof only)

1шт.

710686024

DIA KIT, TRACTOR

Bracket for Mounting Equipment Monitors

1шт.

710752034

DIA KIT, TRACTOR

2X25A Plugs for 3 Pin Power Socket

1шт.

710762034

KIT

Rotary Beacon and Fitting Kit

1шт.

710768064

DIA KIT, TRACTOR

2 x Additional Worklight For Cab Grabrails

1шт.

710932024

DIA KIT, TRACTOR

Hook Cat. D2 for Slider Type Trailer Hitch (43MM Dia Pin.)

1шт.

710947024

DIA KIT, TRACTOR

Hook Cat. D3 for Slider Type Trailer Hitch (50MM Dia Pin)

1шт.

710960024

DIA KIT, TRACTOR

APUH Viewing Mirror

1шт.

710982024

DIA KIT, TRACTOR

French Language Decal Kit for North America

1шт.

710986024

DIA KIT, TRACTOR

Spanish Language Decal Kit for North America

1шт.

718018014

DIA KIT, TRACTOR

Wide Weight Carrier

1шт.

718041044

DIA KIT, TRACTOR

Front PTO, 6 Spline

1шт.

718100014

DIA KIT, TRACTOR

Creeper Speed for 24x24 Hi-Lo & 16x16 Semi Power Shift

1шт.

718177034

DIA KIT, TRACTOR

Front Headlights Kit for Grabrails RH

1шт.

718178054

DIA KIT, TRACTOR

Pneumatic Trailer Brake, Additional 3rd Line

1шт.

718199014

DIA KIT, TRACTOR

2 LED Work Lights for Front and Rear High Roof W/CAB

1шт.

718204044

DIA KIT, TRACTOR

Fuel Heater (Grid Heater to be fitted to Power Supply) 4V

1шт.

718247014

DIA KIT, TRACTOR

K80mm Ball Slider Type tow Hitch Tractor and Trailer end - German Type

1шт.

718344044

DIA KIT, TRACTOR

2 LH Side Front Mounted Hydraulic Couplers for Integrated Front HPL

1шт.

Valid for Maxxum 115, 125, 140 Models Only

1шт.

718345034

DIA KIT, TRACTOR

Front HPL Integrated Hydraulics W/4 Coupler

1шт.

Valid for Maxxum 110, 120, 130 Models Only

1шт.

718345044

DIA KIT, TRACTOR

Front HPL Integrated Hydraulics W/4 Coupler

1шт.

Valid for Maxxum 115, 125, 140 Models Only

1шт.

718362010

ZERO DETENT KIT

Zero Detent Kit (Plus Float) for Single RCV Spool (Closed Centre Valves)

1шт.

718385101

DIA KIT, TRACTOR

Pneumatic Trailer Brake (Italy)

1шт.

Valid for Maxxum 115, 125, 140 Models Only

1шт.

718385105

DIA KIT, TRACTOR

Pneumatic Trailer Brake (Italy)

1шт.

Valid for Maxxum 110, 120, 130 Models Only

1шт.

718485014

DIA KIT, TRACTOR

Rear Hydraulic Adjustable RH Lift Link

1шт.

718510024

DIA KIT, TRACTOR

Front Fender 420 Dynamic

1шт.

718511024

DIA KIT, TRACTOR

Front Fender 480 Dynamic

1шт.

718577024

DIA KIT, TRACTOR

Left-Hand Rear Storage Box

1шт.

718752024

DIA KIT, TRACTOR

2X40A Plugs for 4 Pin Power Socket

1шт.

718756034

DIA KIT, TRACTOR

Additional Slice to Electronic Mid Mount Valve MMV (From 2 to 3)

1шт.

718770014

DIA KIT, TRACTOR

Driveshaft for Hydraulic Pump

1шт.

718775024

DIA KIT, TRACTOR

Front Fender 540 Dynamic

1шт.

719065064

DIA KIT, TRACTOR

Front Ballast Weights (8X45Kg)

1шт.

719098094

DIA KIT, TRACTOR

Front PTO for Integrated Front HPL W/6 Spool

1шт.

719106094

DIA KIT, TRACTOR

240V Engine Block and Transmission Heater (EU Market)

1шт.

Valid for Maxxum 110, 120, 130 Models Only

1шт.

719106104

DIA KIT, TRACTOR

240V Engine Block and Transmission Heater (EU Market)

1шт.

Valid for Maxxum 115, 125, 140 Models Only

1шт.

719138014

DIA KIT, TRACTOR

German Tow Hook Auto Coupling (32mm)

1шт.

719139014

DIA KIT, TRACTOR

German Tow Hook Auto Coupling (38mm)

1шт.

719161024

DIA KIT, TRACTOR

Reverse Alarm and Light

1шт.

719178014

DIA KIT, TRACTOR

Airbrakes Advanced Braking Pressure Regulator

1шт.

Valid for Maxxum 110, 120, 130 Models Only

1шт.

719259044

DIA KIT, TRACTOR

Bio Diesel Fuel Filter W/2V Mechanical Engine

1шт.

719300024

DIA KIT, TRACTOR

Electronic Joystick with Proportional Simultaneous Control of 3rd Function

1шт.

719301024

DIA KIT, TRACTOR

Electronic Joystick with 2 Auxyliary Buttons for 12 v Supply to Diverter Valve

1шт.

719340014

DIA KIT, TRACTOR

Front Mount Hydraulic Couplers for One Valve

1шт.

Valid for Maxxum 110, 120, 130 Models Only

1шт.

719340024

DIA KIT, TRACTOR

Front Mount Hydraulic Couplers for One Valve

1шт.

Valid for Maxxum 115, 125, 140 Models Only

1шт.

719341014

DIA KIT, TRACTOR

Front Mount Hydraulic Couplers for Two Valve

1шт.

Valid for Maxxum 110, 120, 130 Models Only

1шт.

719341024

DIA KIT, TRACTOR

Front Mount Hydraulic Couplers for Two Valve

1шт.

Valid for Maxxum 115, 125, 140 Models Only

1шт.

719344074

DIA KIT, TRACTOR

Isobus Harness and Socket for SWCD or Codi Screen

1шт.

719362010

ZERO DETENT KIT

Zero Detent Kit (Plus Float) for Single RCV Spool (Closed Centre Valves)

1шт.

719385101

DIA KIT, TRACTOR

Pneumatic Trailer Brake (Universal)

1шт.

Valid for Maxxum 115, 125, 140 Models Only

1шт.

719385105

DIA KIT, TRACTOR

Pneumatic Trailer Brake (Universal)

1шт.

Valid for Maxxum 110, 120, 130 Models Only

1шт.

719411104

DIA KIT, TRACTOR

One Electronic Rear Remote Slice 3 to 4

1шт.

719412064

DIA KIT, TRACTOR

Electrohydraulic Remote Valve, from 2 to 3

1шт.

719570014

DIA KIT, TRACTOR

Sunshade for Rear Window

1шт.

719705044

DIA KIT, TRACTOR

Loader Ready for Joystick and Electronic MMV for ISO

1шт.

Valid for Maxxum 110, 120, 130 Models Only

1шт.

719705054

DIA KIT, TRACTOR

Loader Ready for Joystick and Electronic MMV for ISO

1шт.

Valid for Maxxum 115, 125, 140 Models Only

1шт.

719763034

DIA KIT, TRACTOR

Electronic Mid Mount valve kit (2 slice)

1шт.

719766044

DIA KIT, TRACTOR

2 Worklamps on C Pillar

1шт.

719774034

DIA KIT, TRACTOR

30A Implement Socket Front of Cab

1шт.

719790024

DIA KIT, TRACTOR

Hydraulic Adjust Top Link

1шт.

719831040

DIA KIT, TRACTOR

Fuel Cooler

1шт.

Valid for Maxxum 110, 120, 130 Models Only

1шт.

719831050

DIA KIT, TRACTOR

Fuel Cooler

1шт.

Valid for Maxxum 115, 125, 140 Models Only

1шт.

719876014

DIA KIT, TRACTOR

Wide Wiew Internal Mirror

1шт.

719932014

DIA KIT, TRACTOR

Hook Cat. "C" for Slider Type Hitch (28MM Dia Pin.)

1шт.

719979024

DIA KIT, TRACTOR

Hydraulic Free Flow Return Pipe Kit

1шт.

731063024

DIA KIT, TRACTOR

Reduced Capacity Tank W/O Guard

1шт.

Valid for Maxxum 110, 120, 130 Models Only

1шт.

731064024

DIA KIT, TRACTOR

Reduced Capacity Tank W/Guard

1шт.

Valid for Maxxum 110, 120, 130 Models Only

1шт.
