Запчасти Case IH MAXXUM 115 (55.404.CY[01]) - VAR - 336007 + STD - ROAD LIGHTS - GRABRAIL MOUNTED (55) - ELECTRICAL SYSTEMS

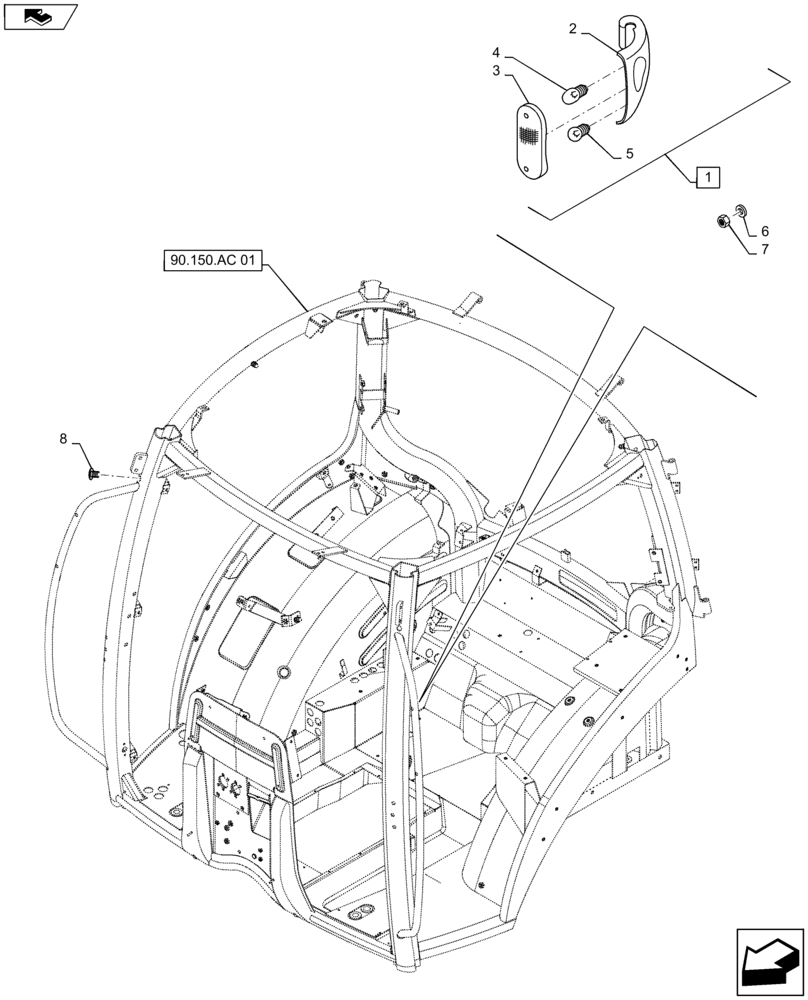

Схема запчастей Case IH MAXXUM 115 - (55.404.CY[01]) - VAR - 336007 + STD - ROAD LIGHTS - GRABRAIL MOUNTED (55) - ELECTRICAL SYSTEMS
2
4
6
3
8
7
home
5
90.150.ac 01
1

Артикул

Название

Примечание

Количество

1

87313174

INDICATOR LIGHT,12V, 21W

LH, Incl 2 - 5, ISO Market Models only

1шт.

1

87313173

INDICATOR LIGHT,12V, 21W

RH, Incl 2 - 5, ISO Market Models only

1шт.

2

87304544

LENS

LH

1шт.

2

87304543

LENS

RH

1шт.

3

87304539

LENS

1шт.

4

10857790

BULB,R10W, 12V, 5W

1шт.

5

14148090

BULB,PY21W, 12V, 21W

1шт.

6

12605379

LOCK WASHER

Incl 2 - 5, ISO Market Models only

4шт.

7

15996211

Incl 2 - 5, ISO Market Models only

NUT

4шт.

8

81865592

PLUG,PVC Dome Head

Only with Standard Equipment less High Mount Headlamps

2шт.

Выбрано товаров: 10
