Запчасти Case IH MAXXUM 115 (55.404.BS[05]) - VAR - 331785, 330784, 743717 + STD - WORKLAMPS FOR ROOF WITH LOW PROFILE (55) - ELECTRICAL SYSTEMS

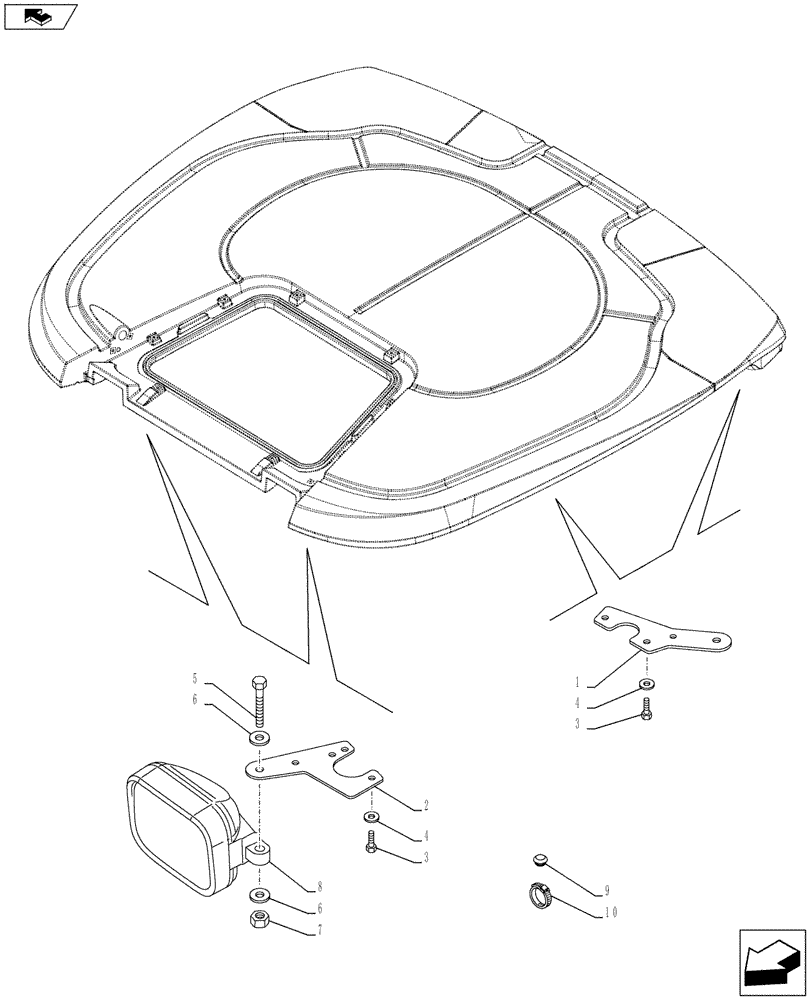

Схема запчастей Case IH MAXXUM 115 - (55.404.BS[05]) - VAR - 331785, 330784, 743717 + STD - WORKLAMPS FOR ROOF WITH LOW PROFILE (55) - ELECTRICAL SYSTEMS
10
6
3
5
2
6
1
7
home
4
4
3
8
9

Артикул

Название

Примечание

Количество

1

87527099

BRACKET

Only with Standard Equipment

2шт.

2

87527093

BRACKET

Only with Standard Equipment

2шт.

3

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

Only with Standard Equipment

8шт.

4

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

Only with Standard Equipment

8шт.

5

16044121

BOLT,Hex, M8 x 45mm, Cl 8.8

Only with Standard Equipment

4шт.

6

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

8шт.

7

16102311

THIN NUT,Thin, M8 x 1.25, Cl 04

VAR 330784, 331785

4шт.

8

87638103

WORK LAMP

LH, VAR 330784, 331785

2шт.

8

87638104

WORK LAMP

RH, VAR 330784, 331785

2шт.

9

81865592

PLUG,PVC Dome Head

VAR 331785

2шт.

10

82001040

CABLE TIE,.19" x 11.5"

VAR 331785

4шт.

Выбрано товаров: 11
