(55.404.AQ[02]) - VAR - 330698 - ROAD LIGHTS - FRONT LIGHTS FOR DRIVING ON THE LH SIDE

Запчасти Case IH MAXXUM 115 (55.404.AQ[02]) - VAR - 330698 - ROAD LIGHTS - FRONT LIGHTS FOR DRIVING ON THE LH SIDE (55) - ELECTRICAL SYSTEMS

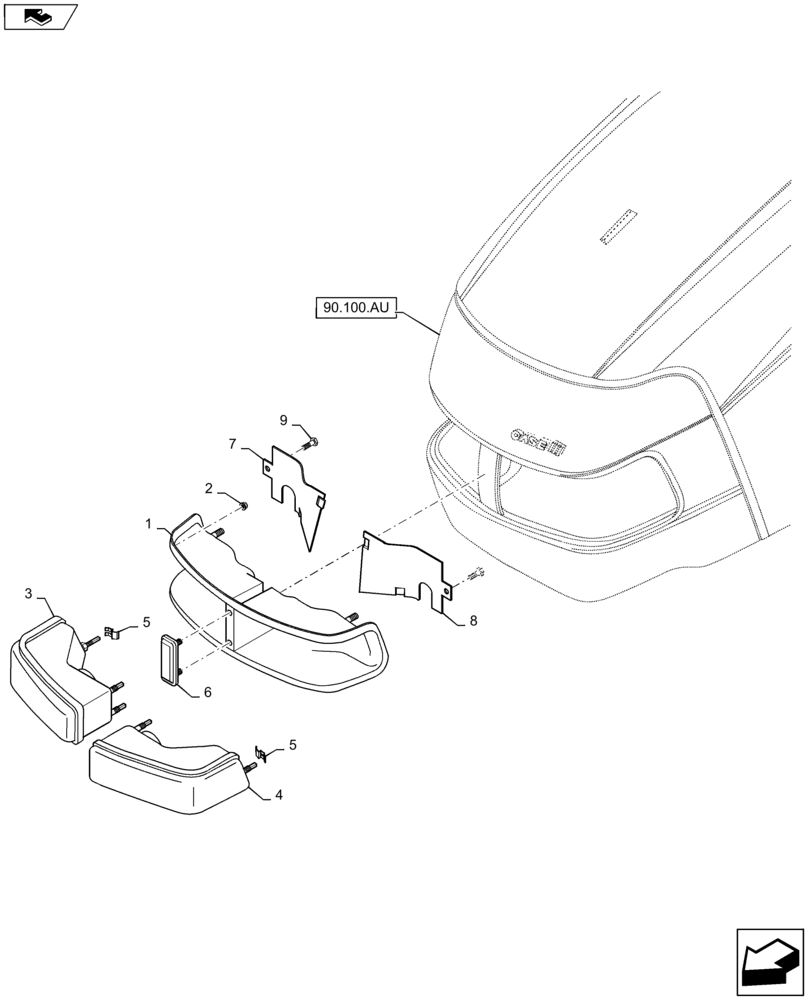

Схема запчастей Case IH MAXXUM 115 - (55.404.AQ[02]) - VAR - 330698 - ROAD LIGHTS - FRONT LIGHTS FOR DRIVING ON THE LH SIDE (55) - ELECTRICAL SYSTEMS
2
5
3
6
7
4
1
8
home
90.100.au
5
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

44995071

CONTAINER

1шт.

2

86625060

PUSH-ON NUT,Self, Threading, 1/4"

8шт.

3

44995025

HEADLAMP

RH

1шт.

4

44995024

HEADLAMP

LH

1шт.

5

44995046

CLIP

6шт.

6

44995089

HEADLAMP REFLECTOR

1шт.

7

44995085

COVER

RH

1шт.

8

44995084

COVER

LH

1шт.

9

44995066

SELF-TAP SCREW,Hex Wash Hd, M6.3 x 16

2шт.
