Запчасти Case IH MAXXUM 115 (55.050.AK) - VAR - 330643 - AIR CONDITIONING WITH ATC - WIRE HARNESS (55) - ELECTRICAL SYSTEMS

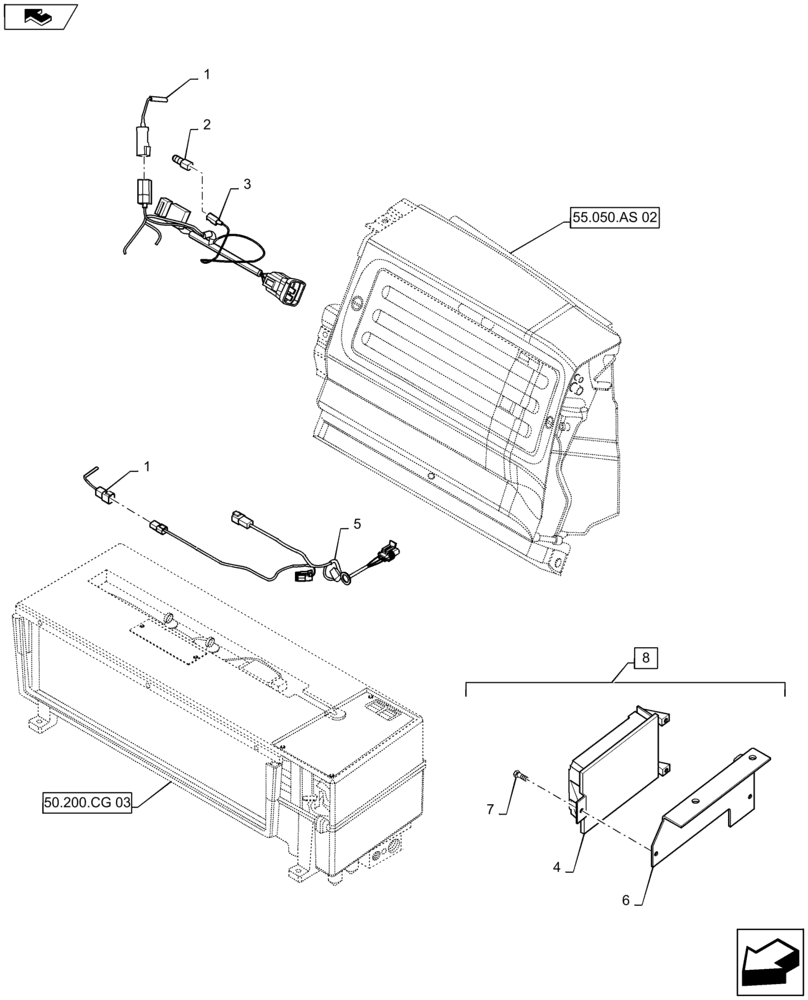

Схема запчастей Case IH MAXXUM 115 - (55.050.AK) - VAR - 330643 - AIR CONDITIONING WITH ATC - WIRE HARNESS (55) - ELECTRICAL SYSTEMS
55.050.as 02
4
8
5
7
6
3
2
home
1
1
50.200.cg 03

Артикул

Название

Примечание

Количество

1

82037671

SENSOR

Air Conditioning with ATC

1шт.

2

87454442

SENSOR

Air Conditioning with ATC

1шт.

3

84138498

WIRE HARNESS

Air Conditioning with ATC

1шт.

4

NSS

NOT SOLD SEPARAT

Control Unit, Incl in 8

1шт.

5

87752249

WIRE HARNESS

Air Conditioning with ATC

1шт.

6

87540518

SUPPORT

1шт.

7

10977821

BOLT,M5 x 19.65mm OAL, Cl 8.8

1шт.

8

84214115

ECU

ATC Controller

1шт.

Выбрано товаров: 8
