(55.045.AD) - VAR - 330414, 330427 - SUSPENDED FRONT AXLE -SENSOR AND RELATED PARTS

Запчасти Case IH MAXXUM 115 (55.045.AD) - VAR - 330414, 330427 - SUSPENDED FRONT AXLE -SENSOR AND RELATED PARTS (55) - ELECTRICAL SYSTEMS

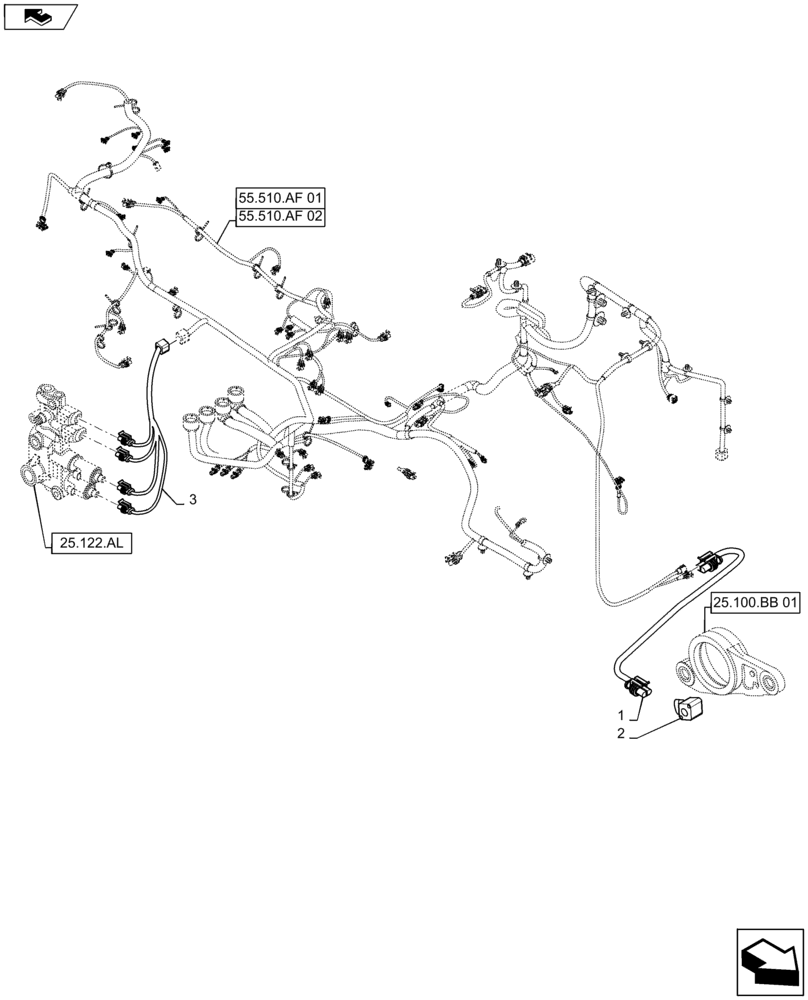

Схема запчастей Case IH MAXXUM 115 - (55.045.AD) - VAR - 330414, 330427 - SUSPENDED FRONT AXLE -SENSOR AND RELATED PARTS (55) - ELECTRICAL SYSTEMS
home
3
2
25.100.bb 01
25.122.al
55.510.af 01
1
55.510.af 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82022099

WIRE HARNESS

Suspension Potentiometer

1шт.

2

87605245

POTENTIOMETER,4000 Ohm, 13.5 VDC

Rotary Position Sensor

1шт.

3

82019177

WIRE HARNESS

Front Suspension Jump Lead

1шт.

Выбрано товаров: 3
